A/C Thermostat - Manual Correction

BULLETIN NUMBER
SB93-12-005

ISSUE DATE
December 1993

GROUP
AIR CONDITIONING

1993 A/C THERMOSTAT
(WORKSHOP MANUAL CORRECTION)

AFFECTED VEHICLES

1993 Trooper (UX), Rodeo (UC), Pickup (TF) and Amigo (TC) models equipped with air conditioning.

SERVICE INFORMATION

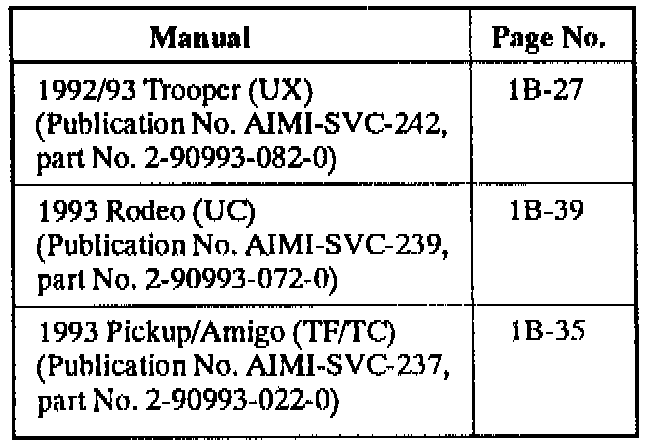

The air conditioning electronic thermostat and thermostat removal procedures for affected vehicles are incorrectly described in the Workshop Manuals:

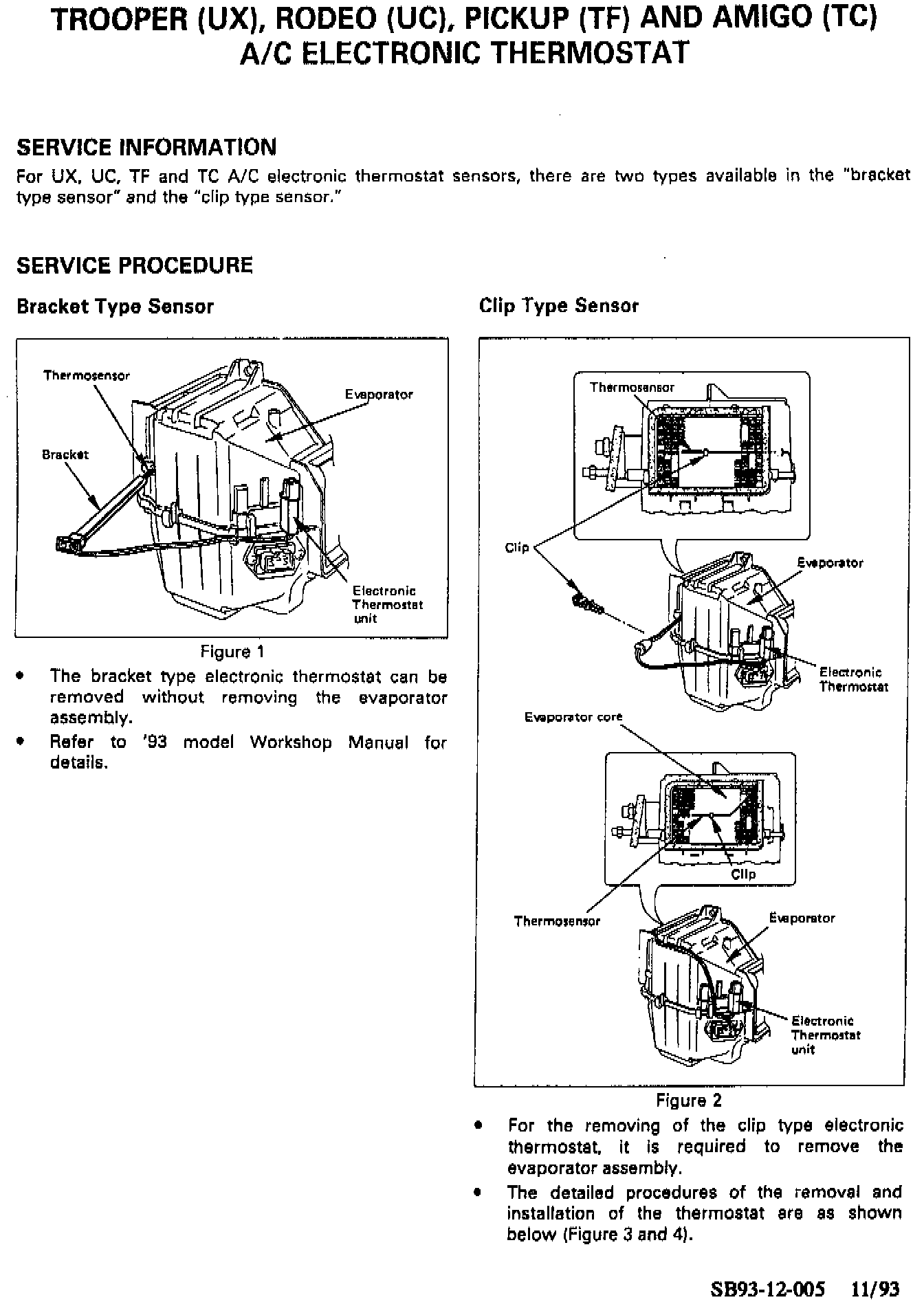

Affected vehicles may be equipped with either of the following two different types of A/C electronic thermostat:

BRACKET TYPE:
The thermostat is built into a bracket, which can be removed without refrigerant recovery and evaporator removal.

CLIP TYPE:
The thermostat can only be removed after the refrigerant is recovered and the evaporator is removed.

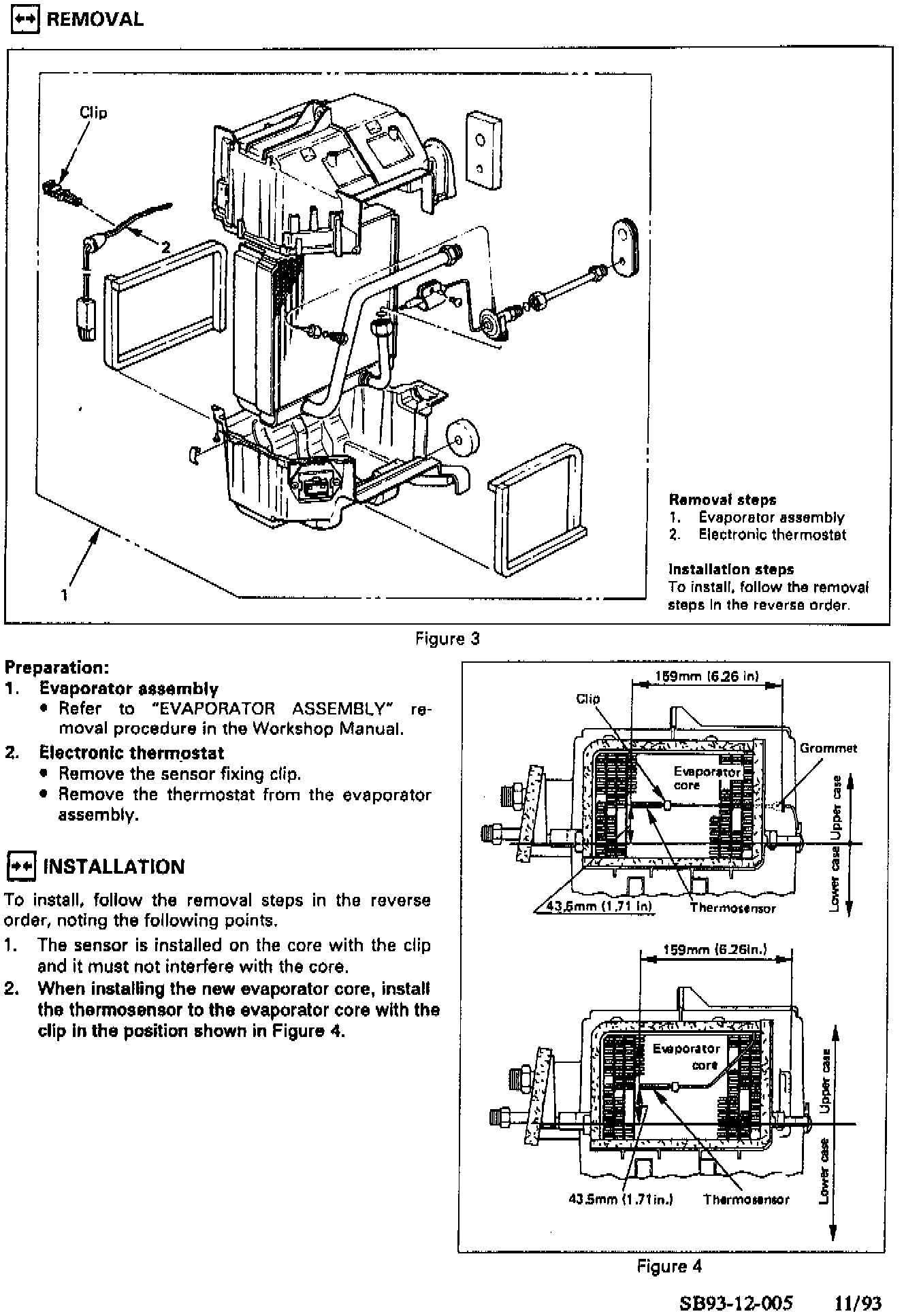

This Service Bulletin contains corrected A/C thermostat descriptions and service procedures for affected vehicles.
