Differential Preload Specifications - Update

BULLETIN NUMBER
SB93-07-005

ISSUE DATE
November 1993

GROUP
PROPELLER SHAFT & AXLE

RODEO (UC) AND PICKUP (TF) REAR AXLE PRELOAD SPECIFICATIONS (WORKSHOP MANUAL CORRECTION)

AFFECTED VEHICLES

1991-94 Rodeo (UC) and Pickup (TF) models equipped with Saginaw rear axle.

SERVICE INFORMATION

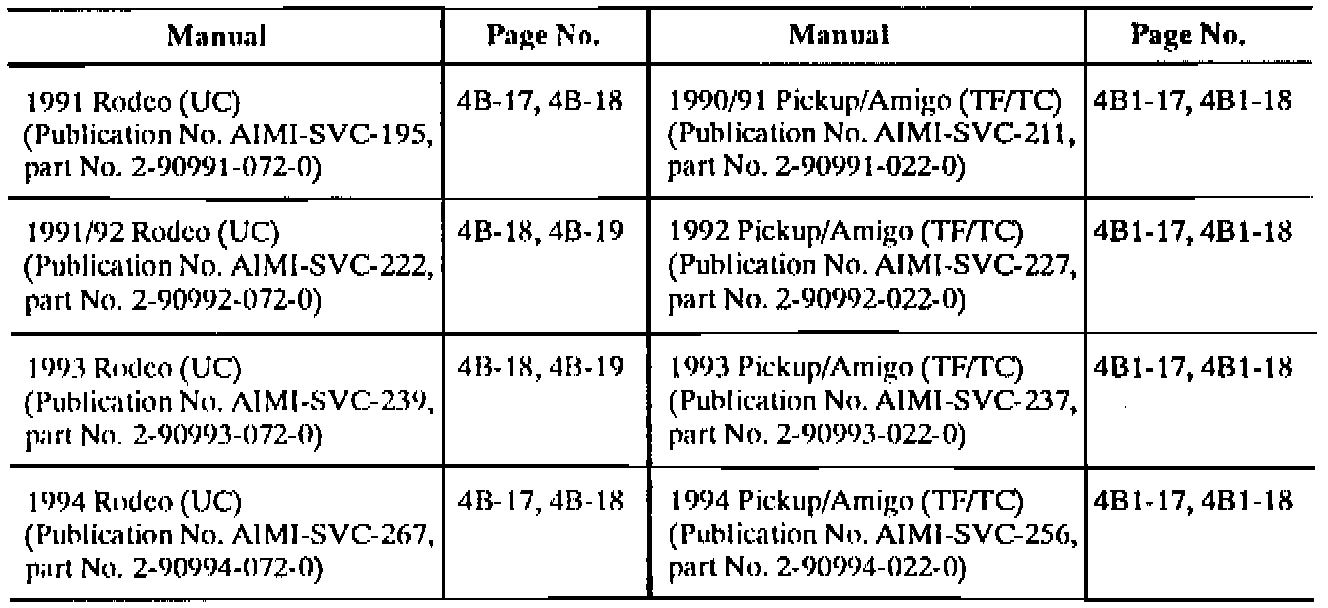

Rear axle preload specifications for affected vehicles are incorrectly shown in the Workshop Manuals:

SERVICE PROCEDURE

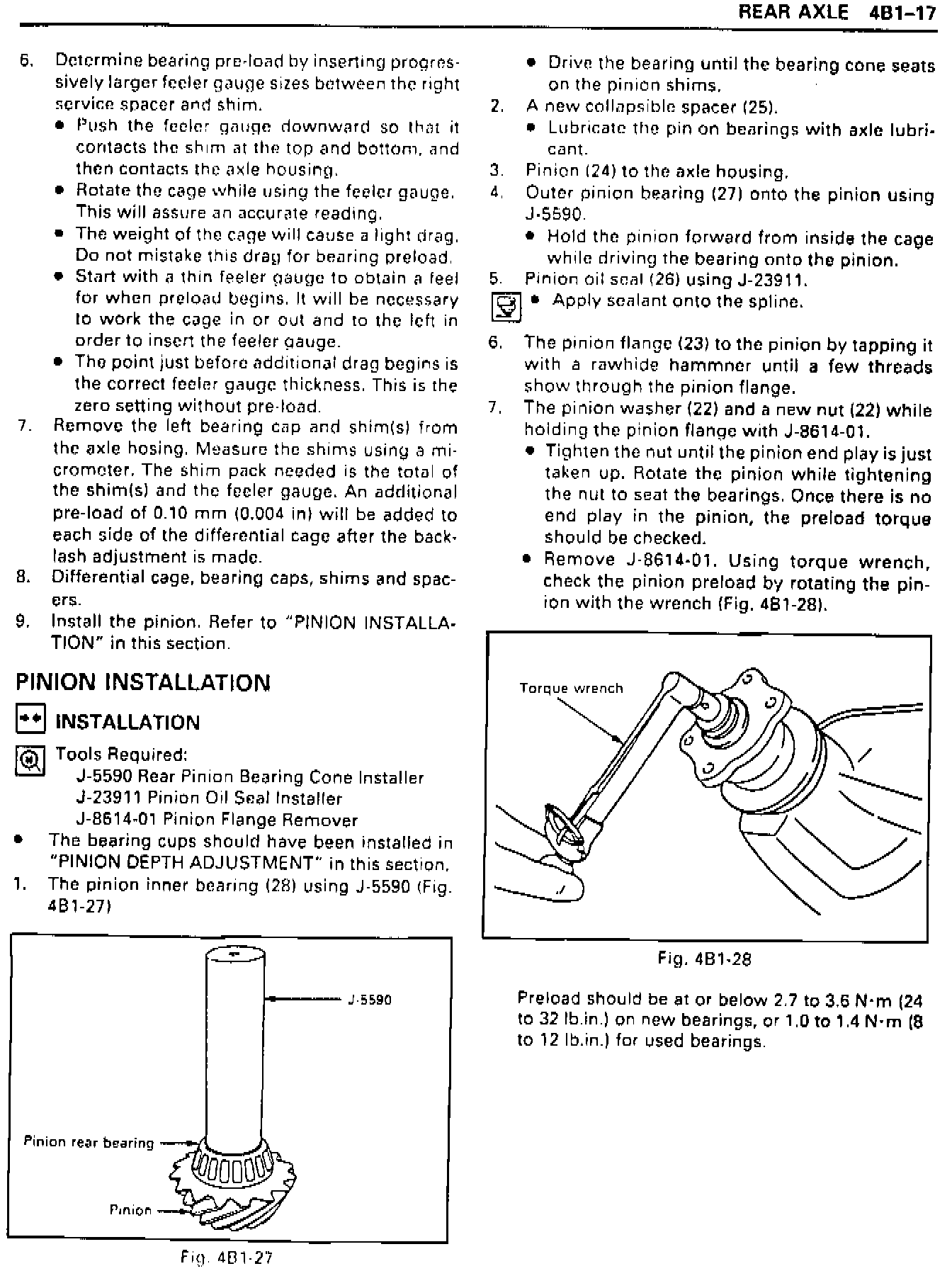

This Service Bulletin contains corrected rear axle preload specifications for affected vehicles.
