Oil Pressure Gauge: Testing and Inspection

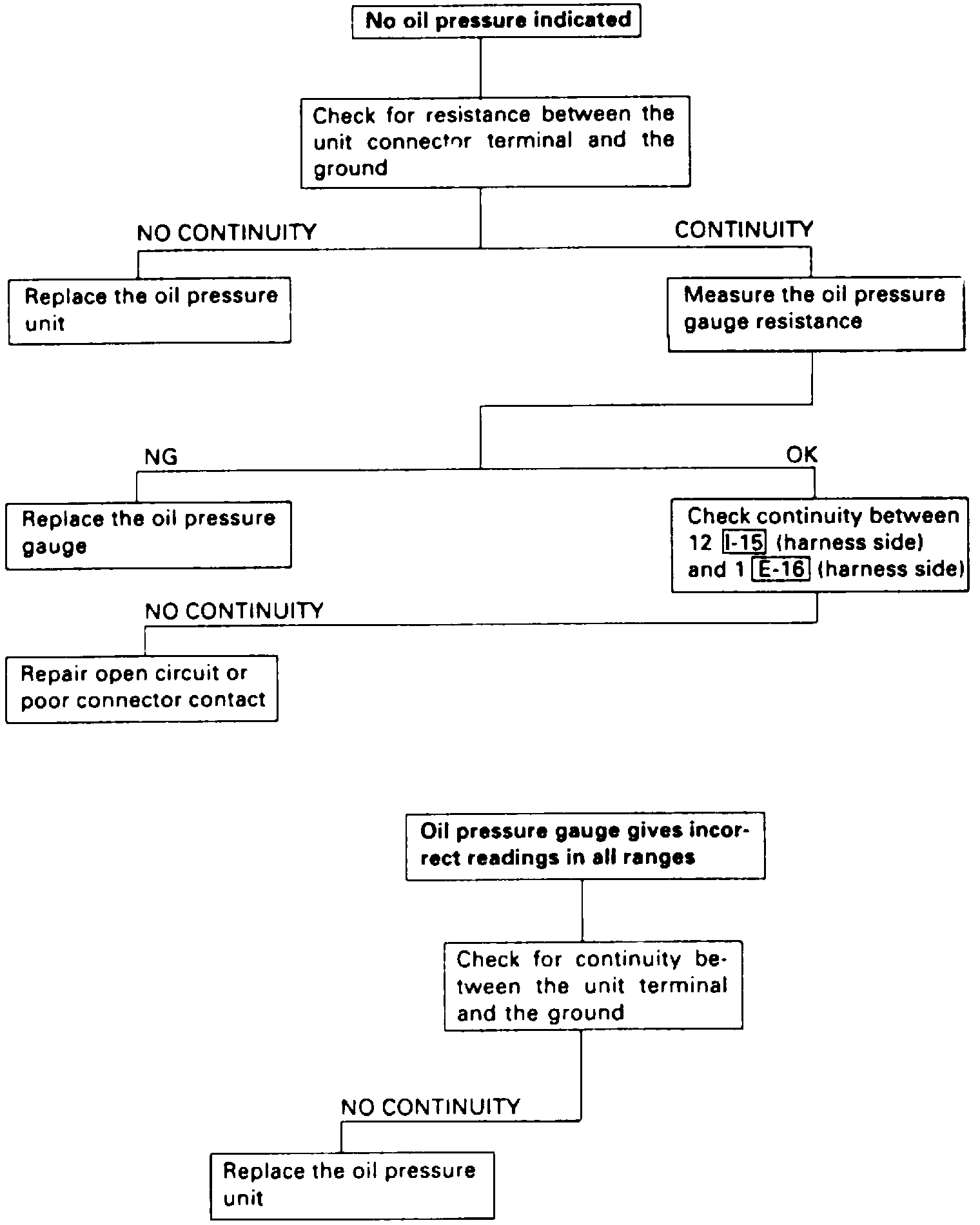

Fig. 18 Oil Gauge Diagnosis:





Refer to Fig. 18, for oil gauge diagnosis.
