System Diagram

Temperature Control Circuit:

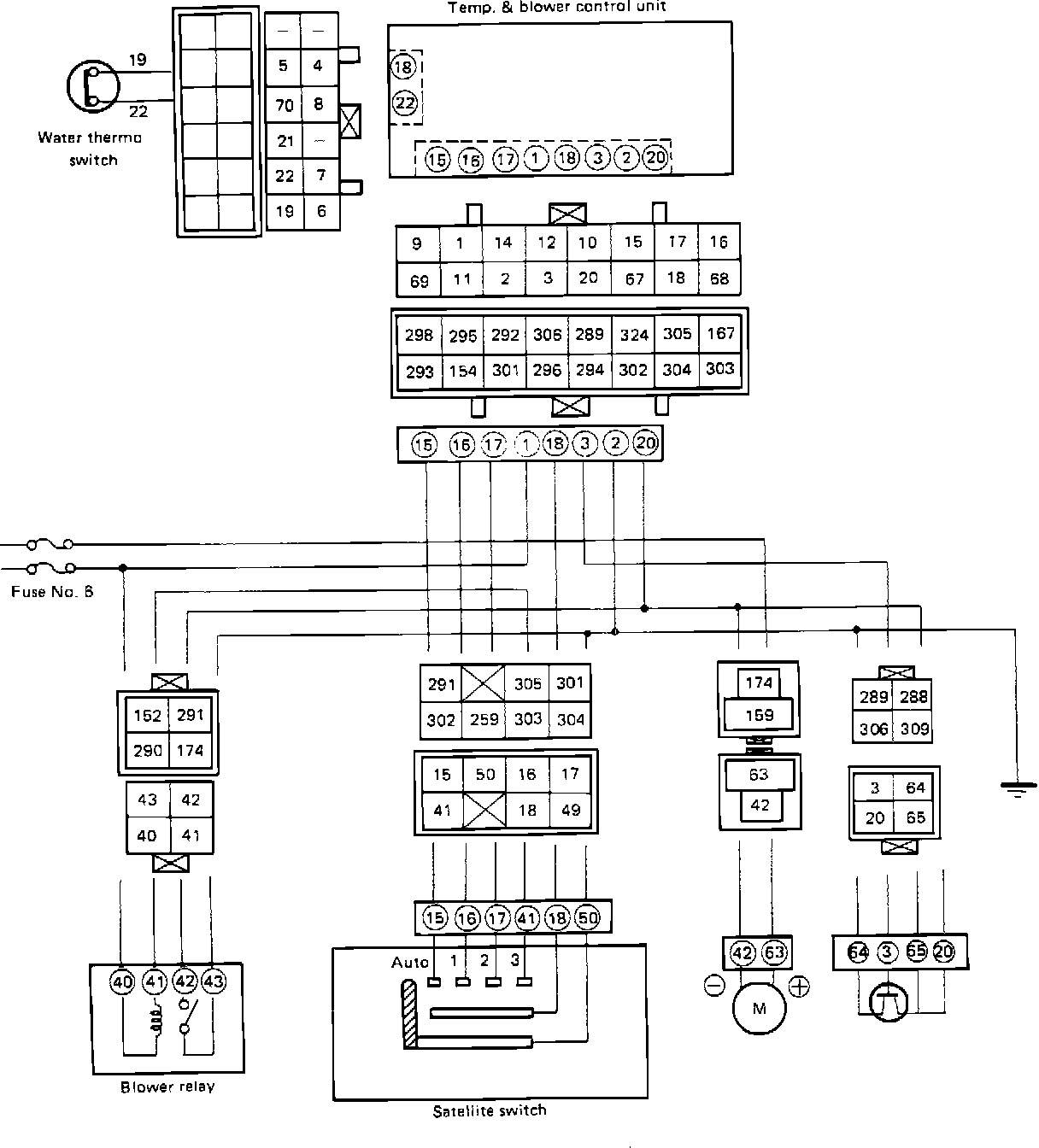

Blower Motor Control Circuit:

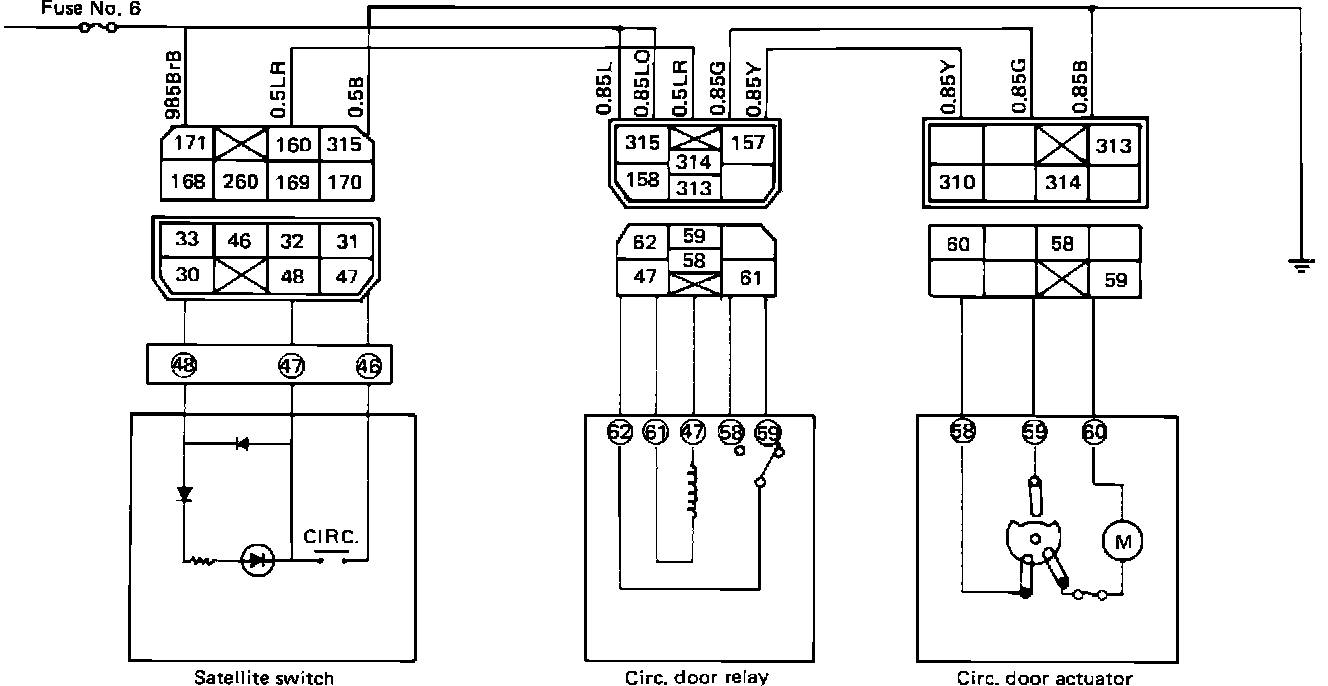

Air Source Select Circuit:

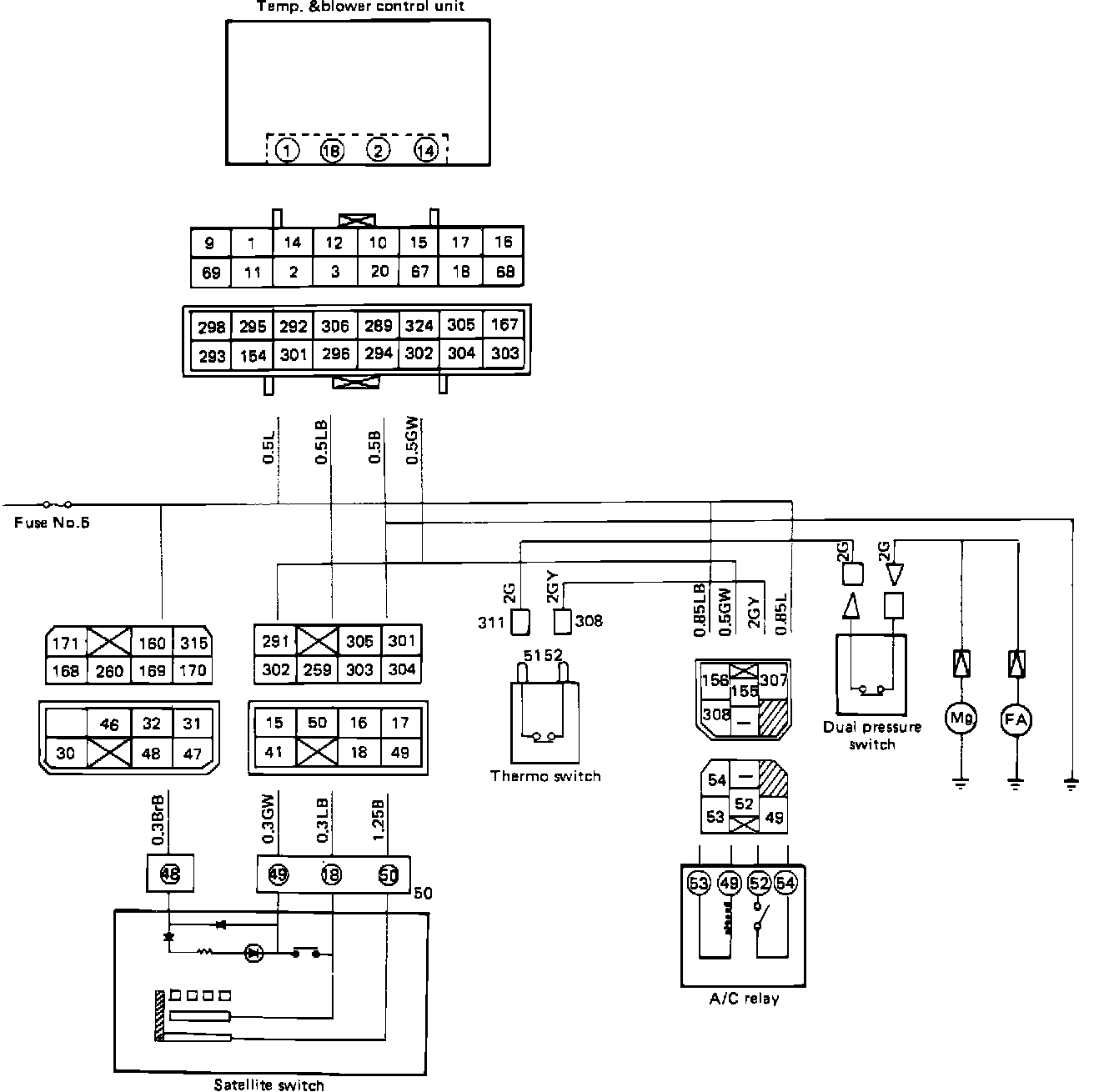

A/C Switch Circuit:

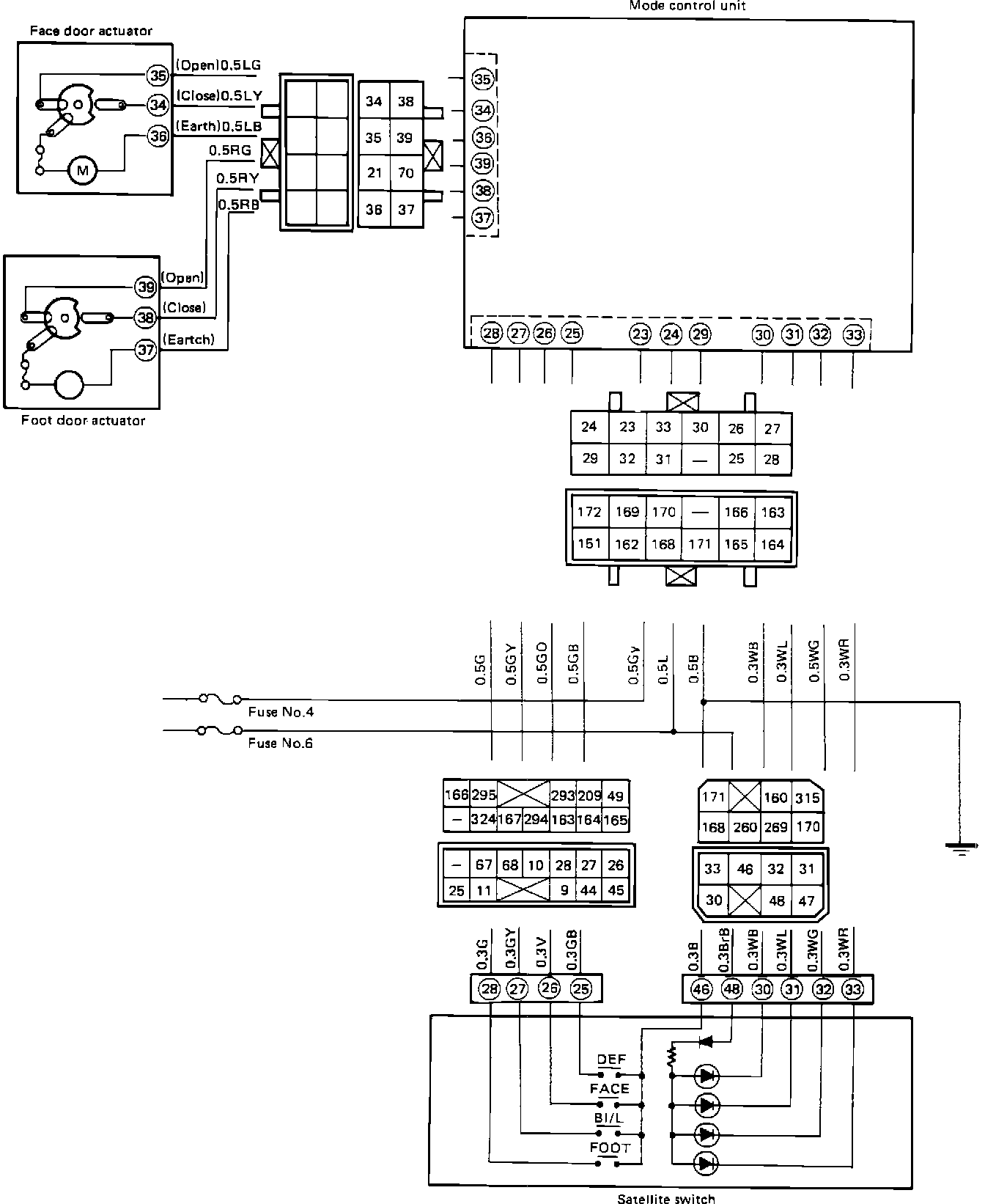

Mode Control Circuit:
