Fan Control Lever (Fan Switch)

PART 1

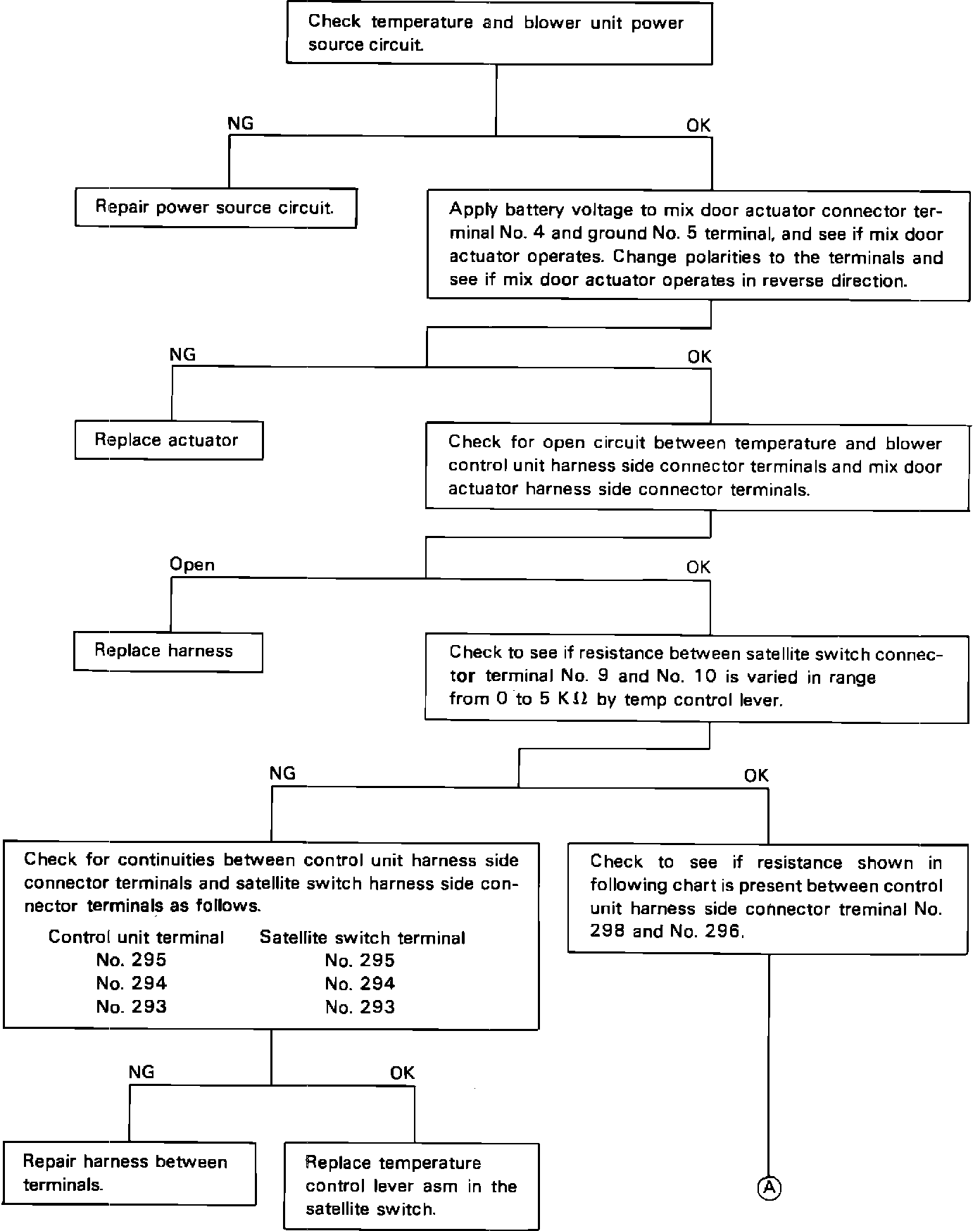

Temperature Cannot Be Controlled (Part 1):






PART 2

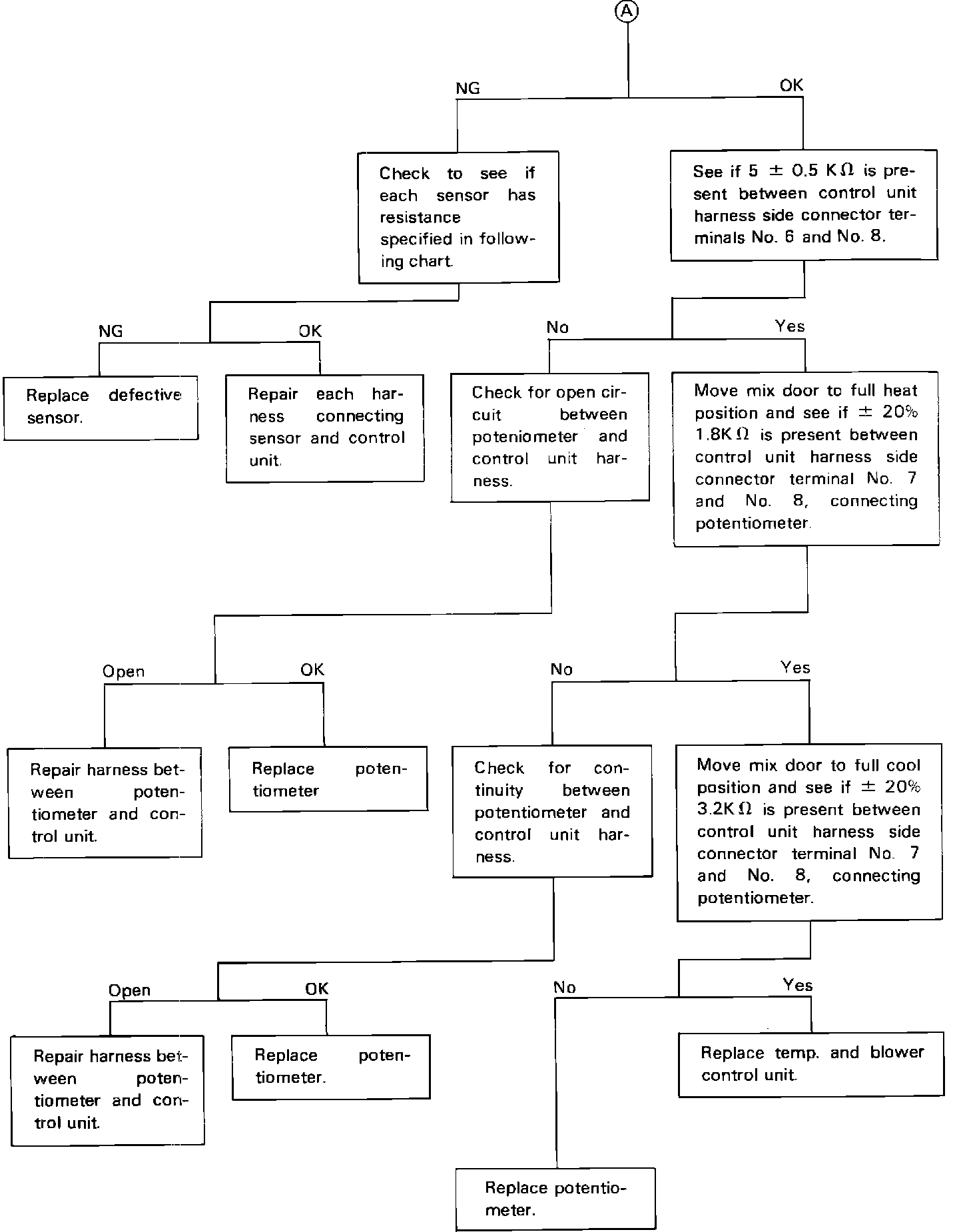

Temperature Cannot Be Controlled (Part 2):






SENSOR CHARACTERISTIC DIAGRAM

Sensor Characteristic Diagram:
