A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
DTC 12
DTC 12
Fig. 16 Code 12, No Distributor Reference Pulse To ECM:

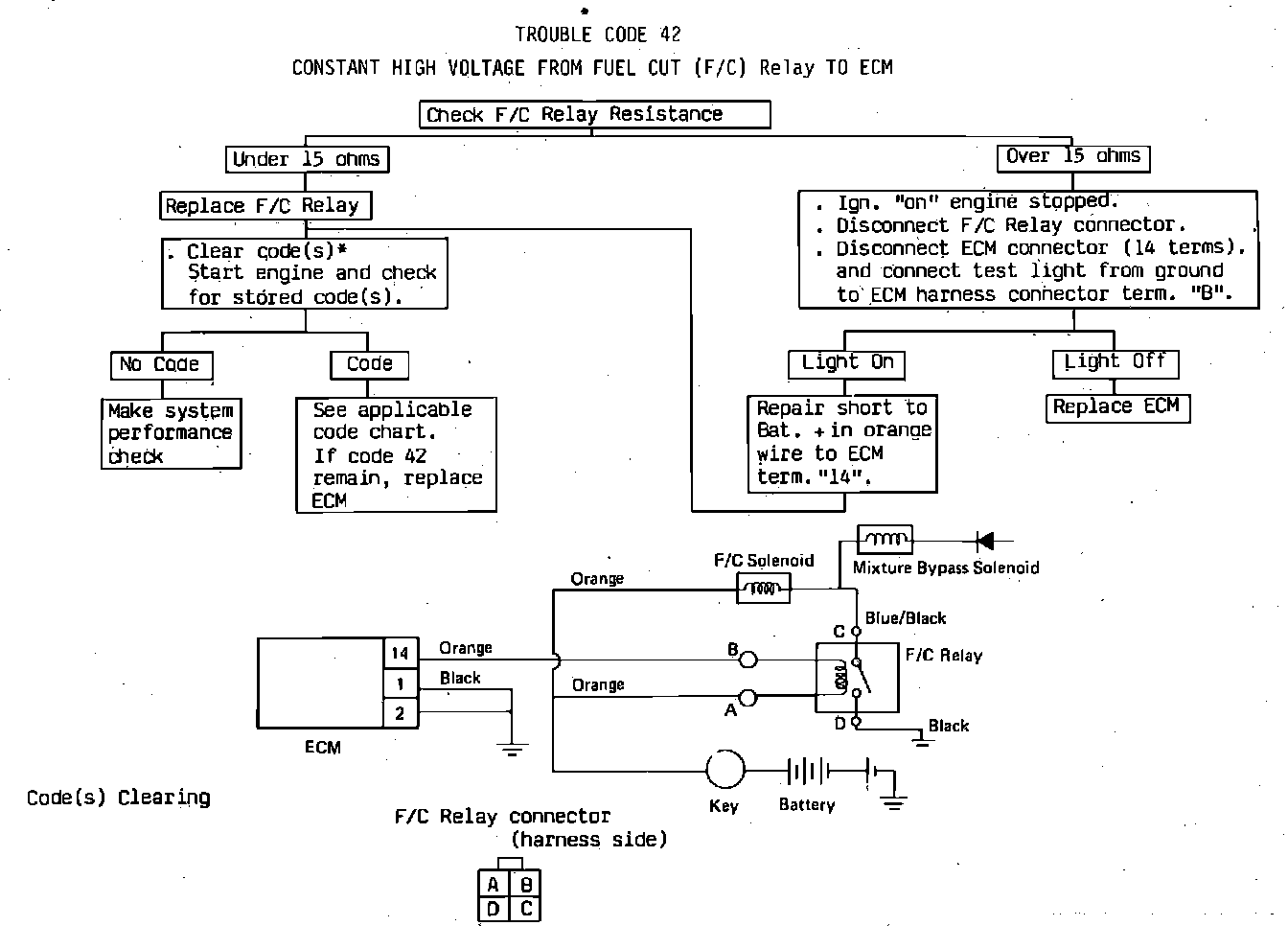

Fig. 23 Code 42, Constant High Voltage From Fuel Cut Relay To ECM:
