DTC 21
DTC 21

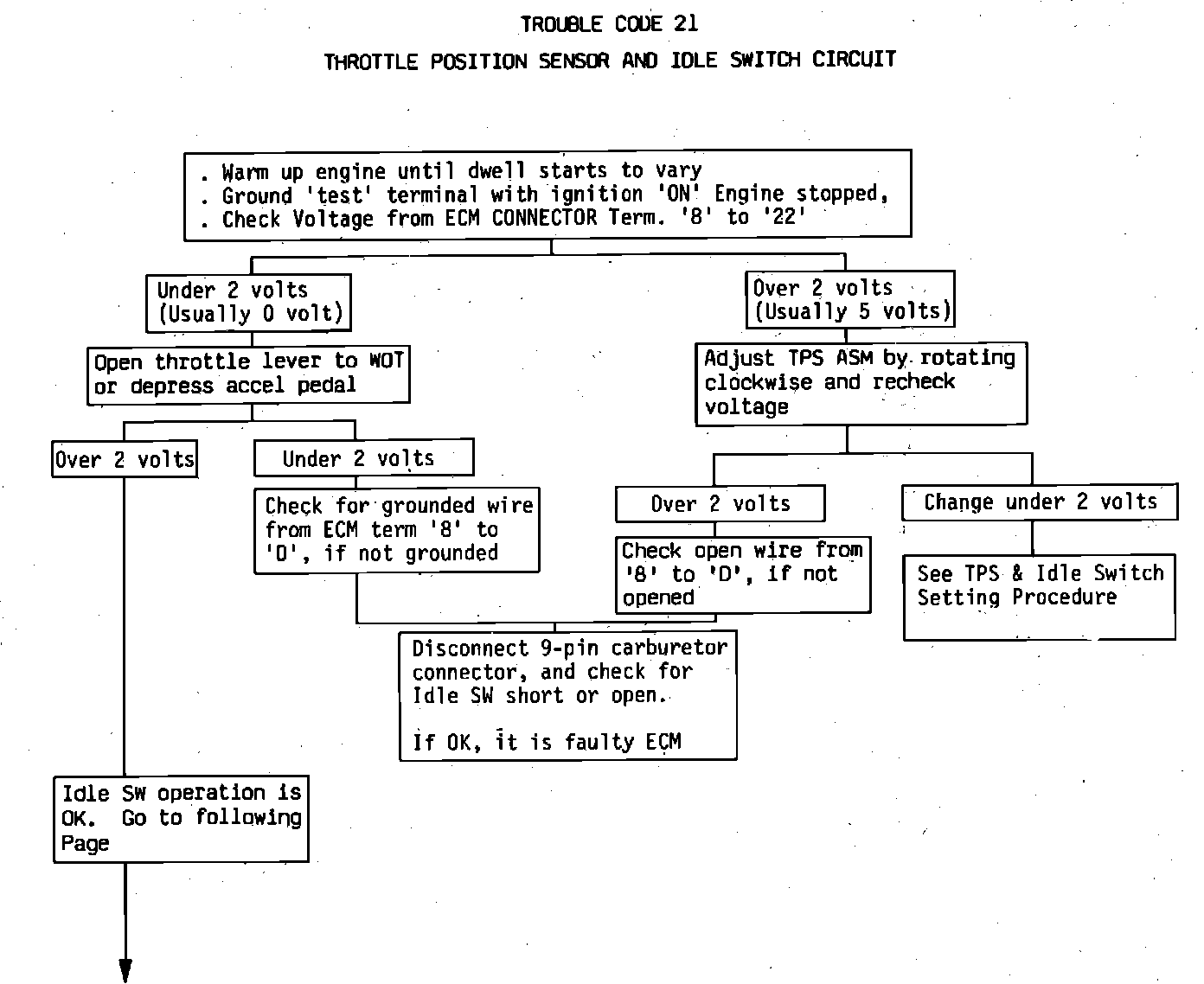

Fig. 20 Code 21, Throttle Position Sensor & Idle Switch Circuit (Part 1 of 2):

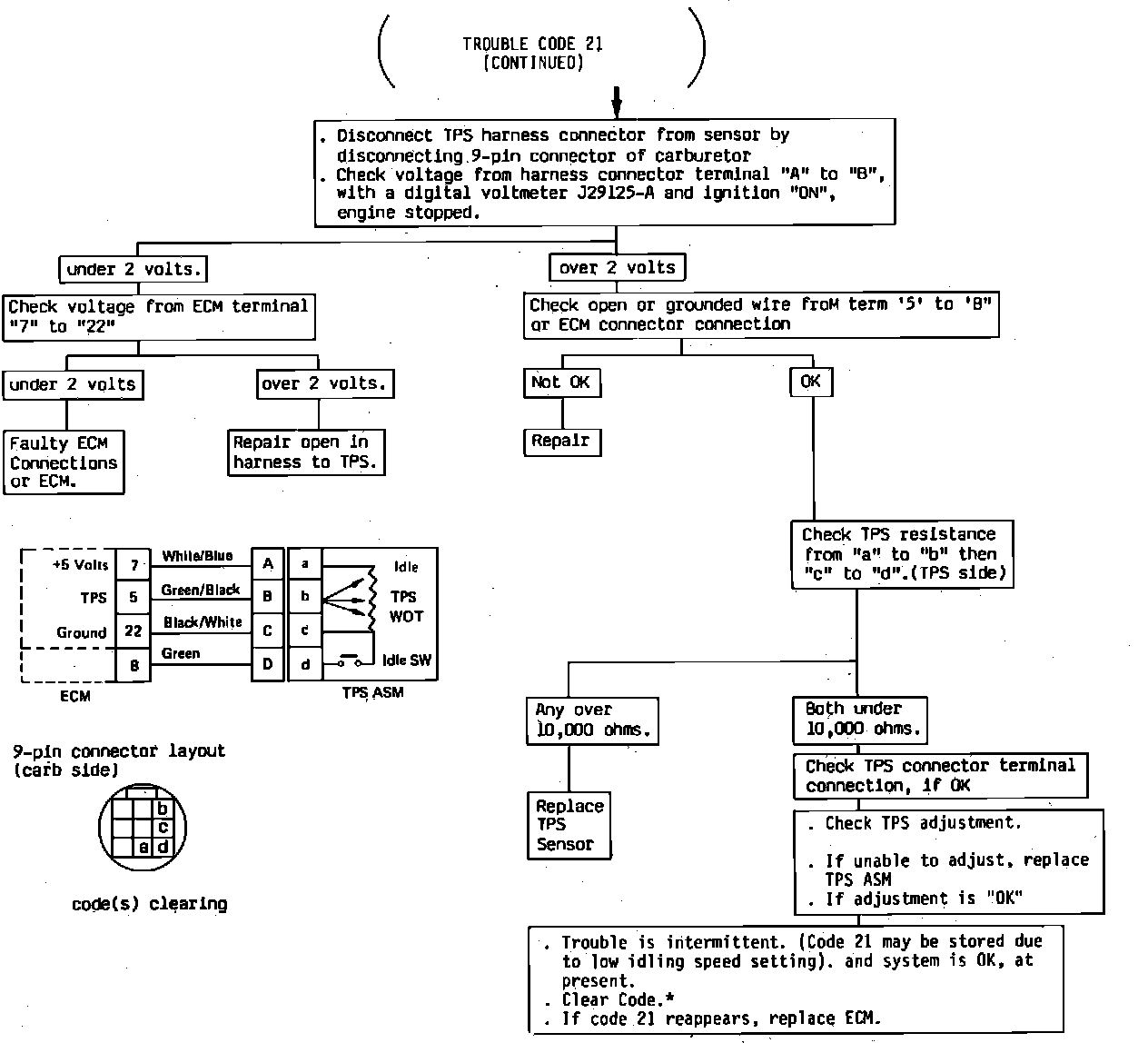

Fig. 20 Code 21, Throttle Position Sensor & Idle Switch Circuit (Part 2 of 2):
