A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Manufacturer Codes
Manufacturer Codes

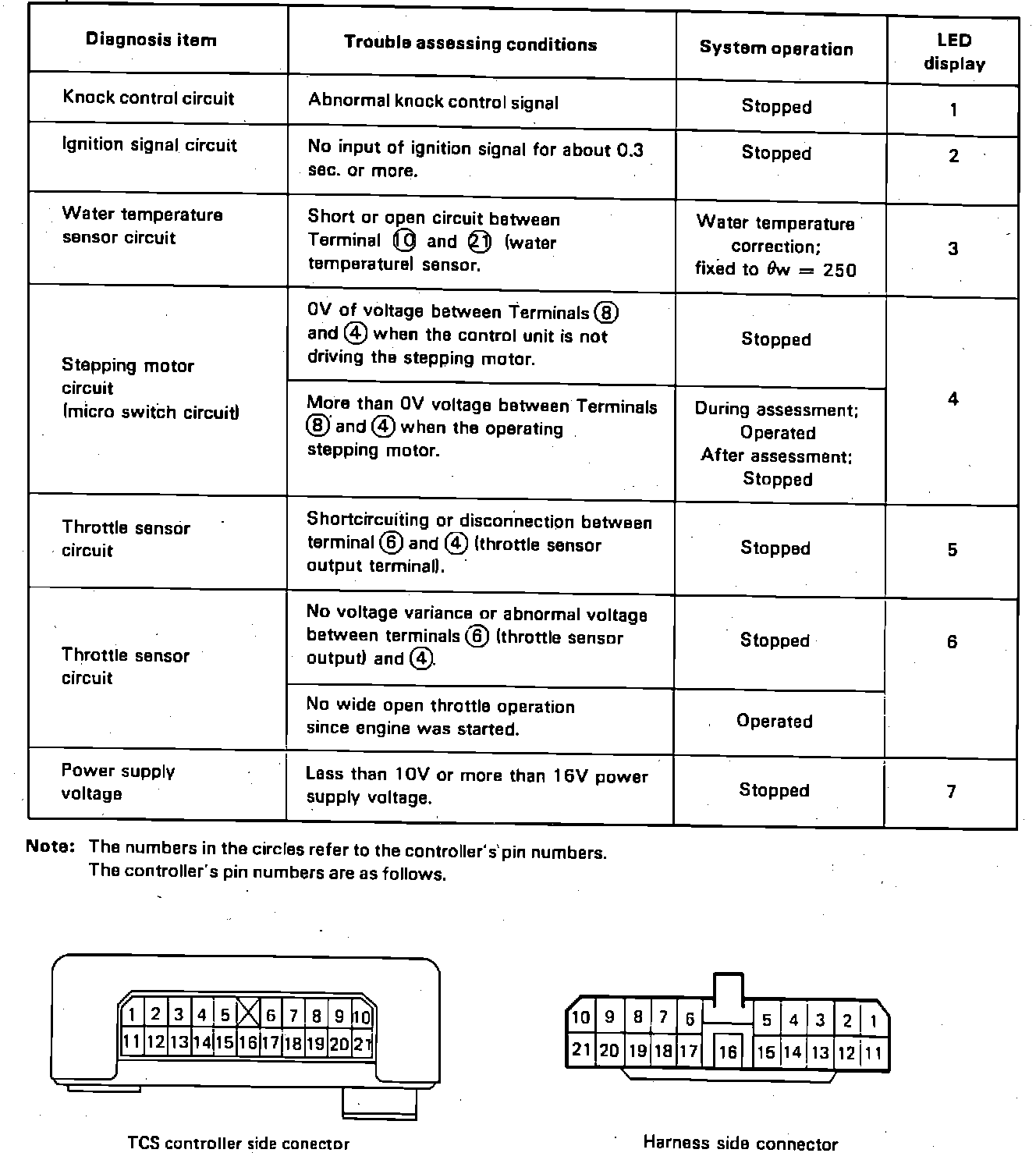

Fig. 4 Trouble code interpretation & connector identification:
