Component Tests and General Diagnostics

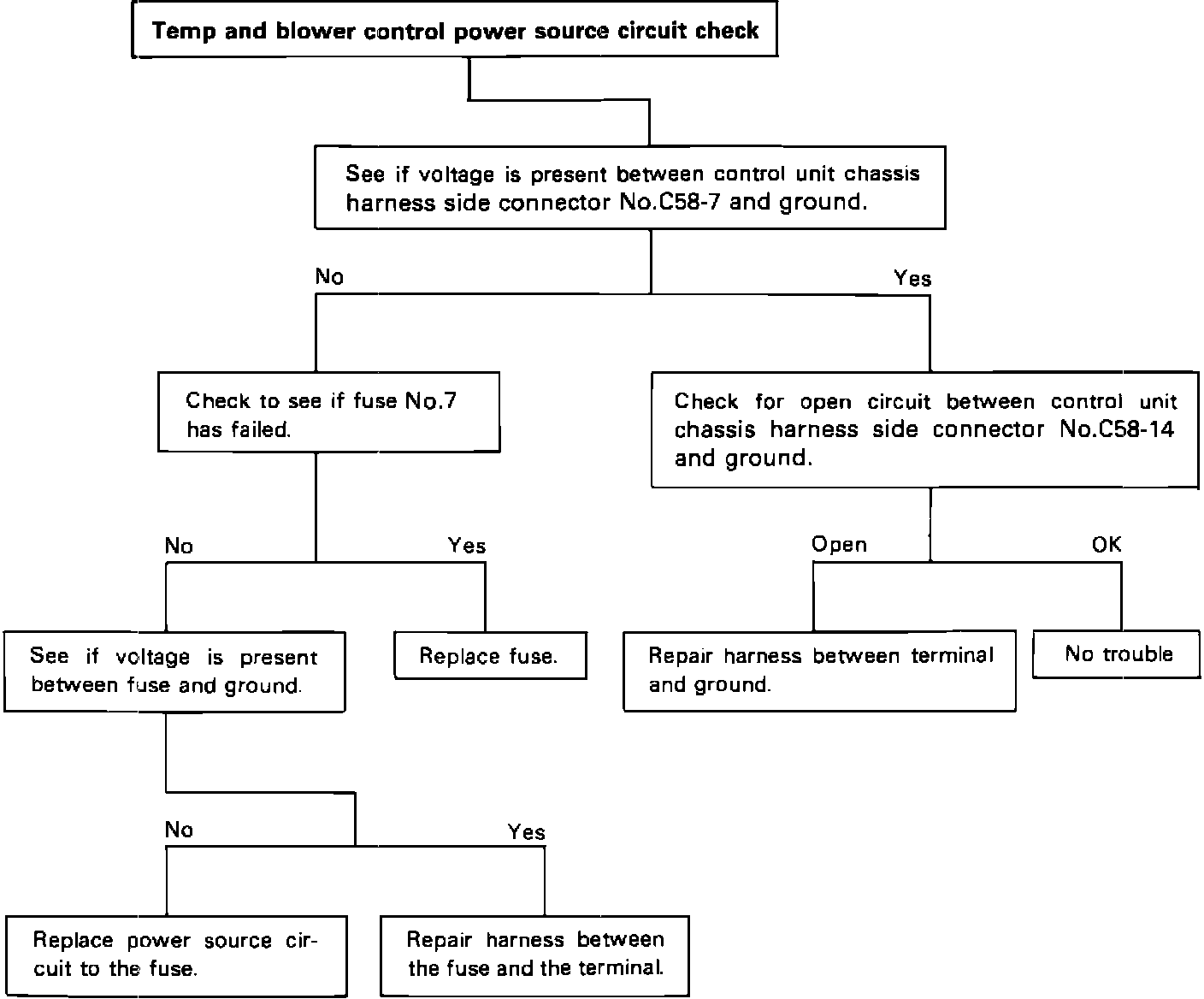

Temp. & Blower Control Power Source Circuit Check:



Mode Control Power Source Circuit Check:
