Non Turbo

DIAGNOSTIC CHART

Code 22 Diagnostic Chart:

NOTE: Check fuel cut relay connections on the panel in the vehicle. Confirm good contact, clear codes and recheck. If code 22 does not reappear, circuit is okay.

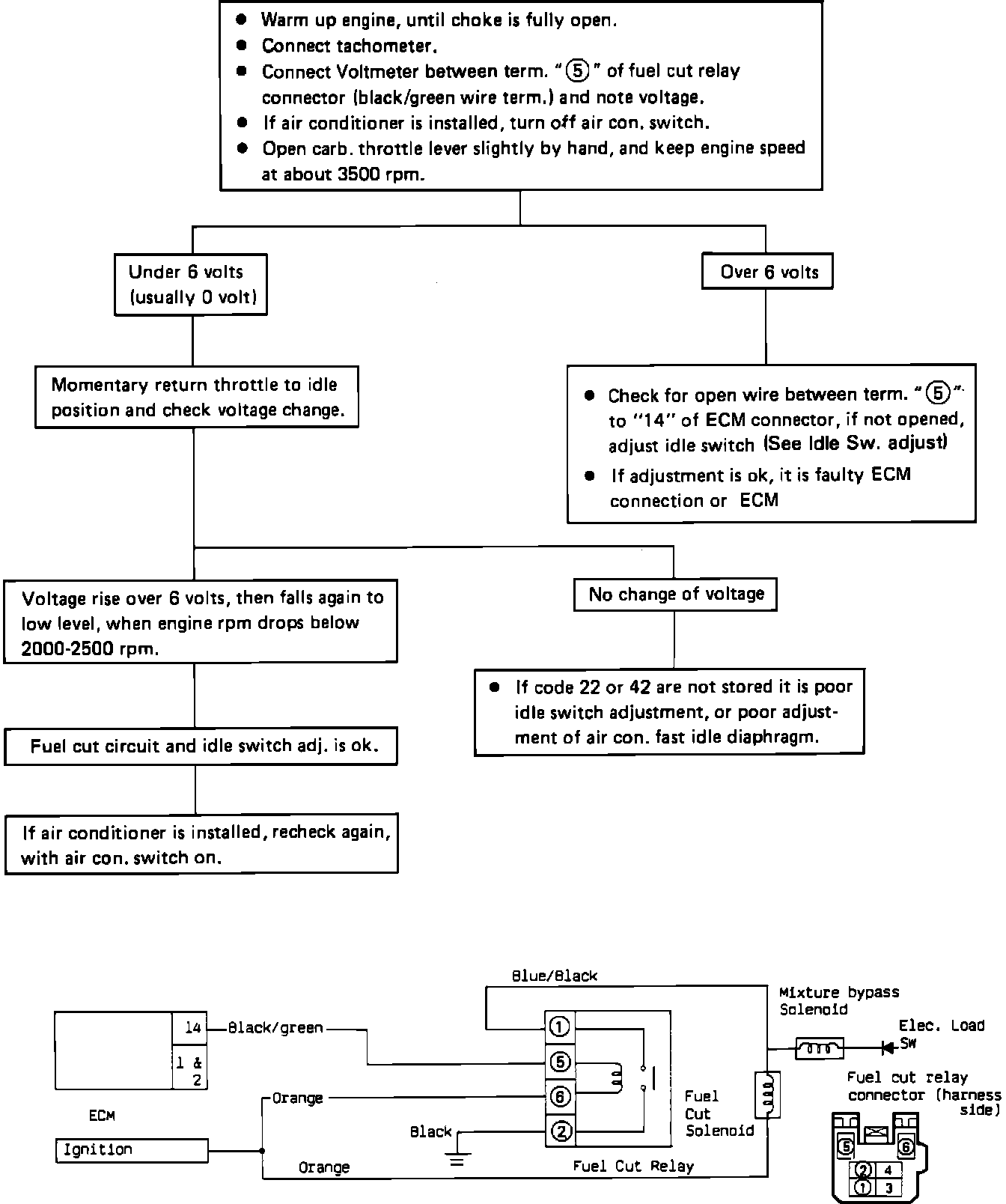

FUEL CUT SYSTEM OPERATIONAL CHECK (INCLUDING IDLE SWITCH)

DIAGNOSTIC CHART

Fuel Cut System Operational Check:

NOTE: If codes 22 or 42 are displayed, go to those charts first.
