DTC 55

Diagnostic Chart

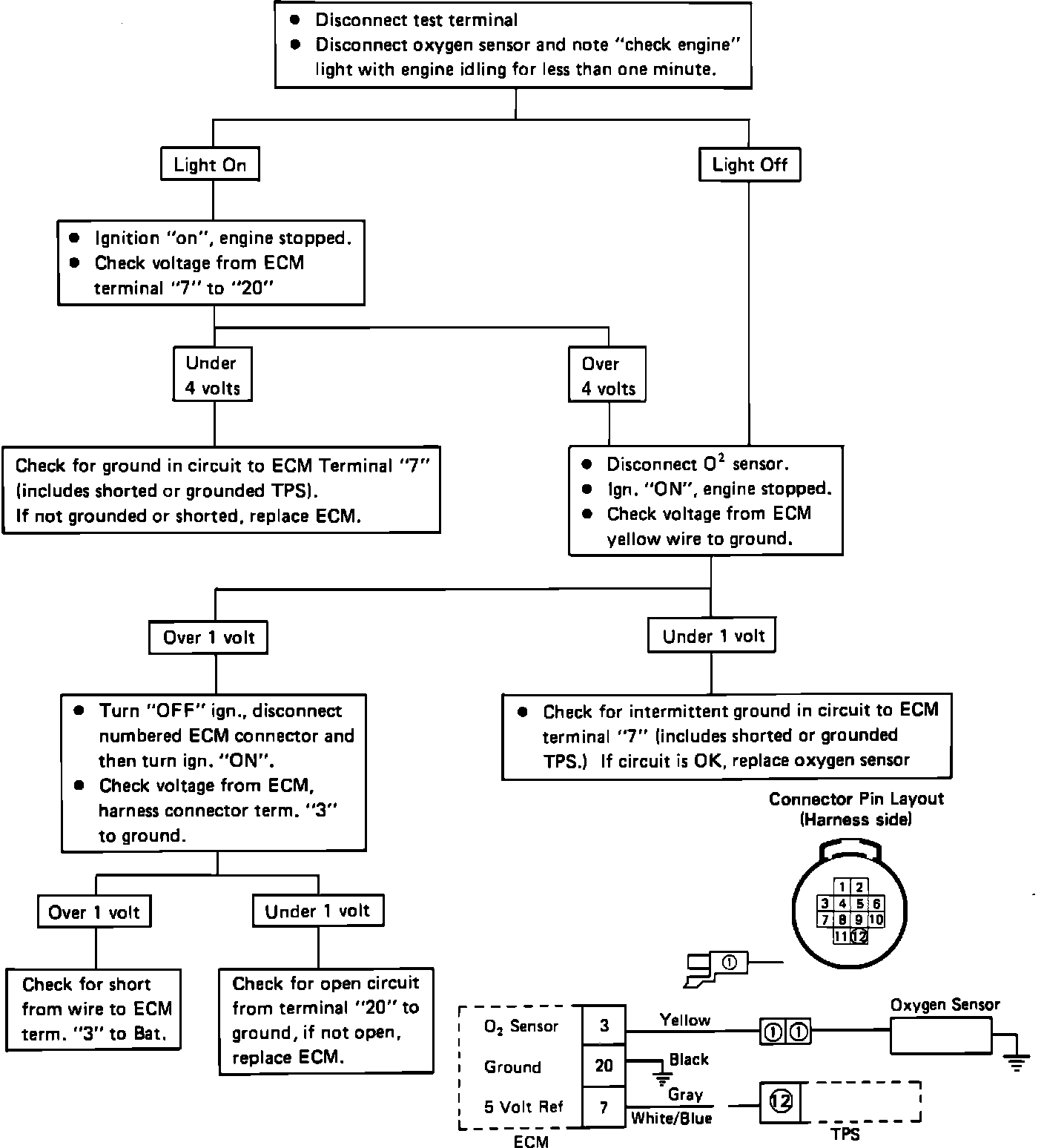

Code 55 Diagnostic Chart:

NOTE: Check for corrosion at ECM edgeboard connectors and terminals. If present, check for windshield and/or heater core leaks. If this condition is found, repair leaks, clean connector terminals and replace ECM.
