A/T - !st and Reverse Clutch Snap Ring
89isuzu04BULLETIN NUMBER SB89-05-001
ISSUE DATE February 2, 1989
GROUP
TRANSMISSION

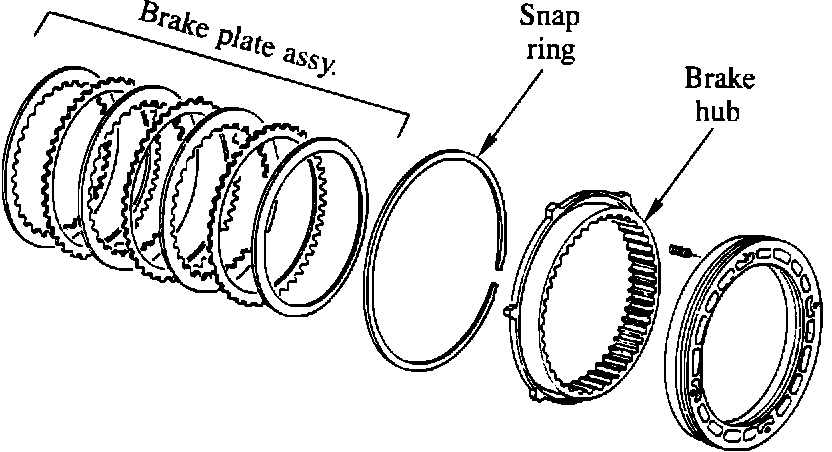

Figure 1:
VEHICLES AFFECTED
1988 and later I-Mark (JT) models with automatic transaxle.
SERVICE INFORMATION
When overhauling the automatic transaxle assembly, installing a snap ring between the low/reverse brake plate assembly and the brake hub (Figure 1) will make reassembly easier. This snap ring is included in the transaxle overhaul kit, but is not installed in the transmission during initial assembly by the factory.
PARTS INFORMATION
Part No. Description
8-94140-795-0 Snap Ring
This is included in:
8-94151-718-0 A/T Repair Kit
FLAT RATE MANUAL INFORMATION
Use existing labor operation number 050657 for automatic transaxle overhaul.
