Diagnosis By Symptom

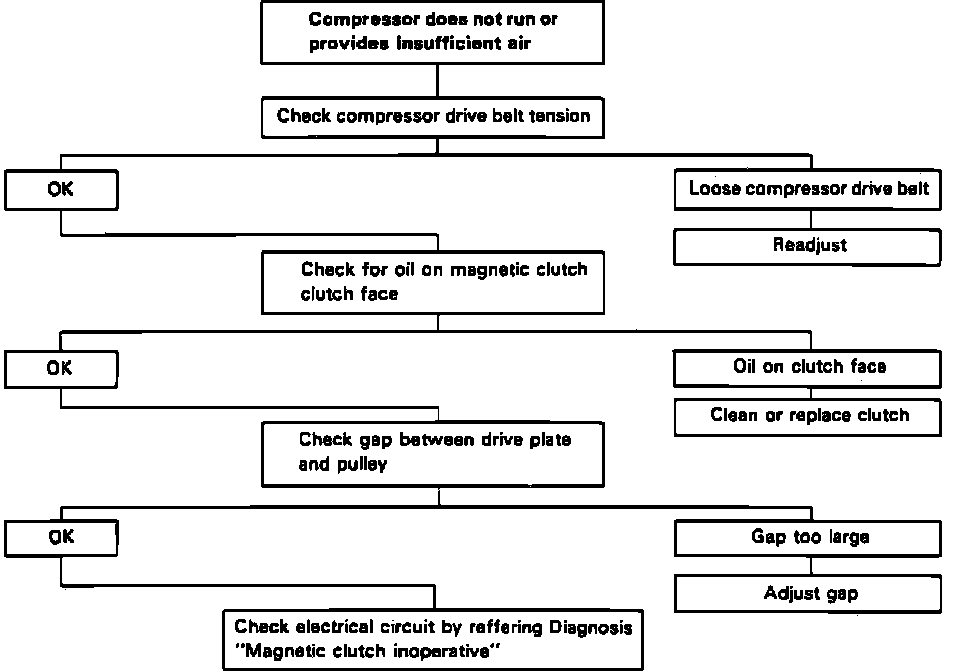

Fig. 2 Compressor does not run or provides insufficient air (Part 1 of 3).:

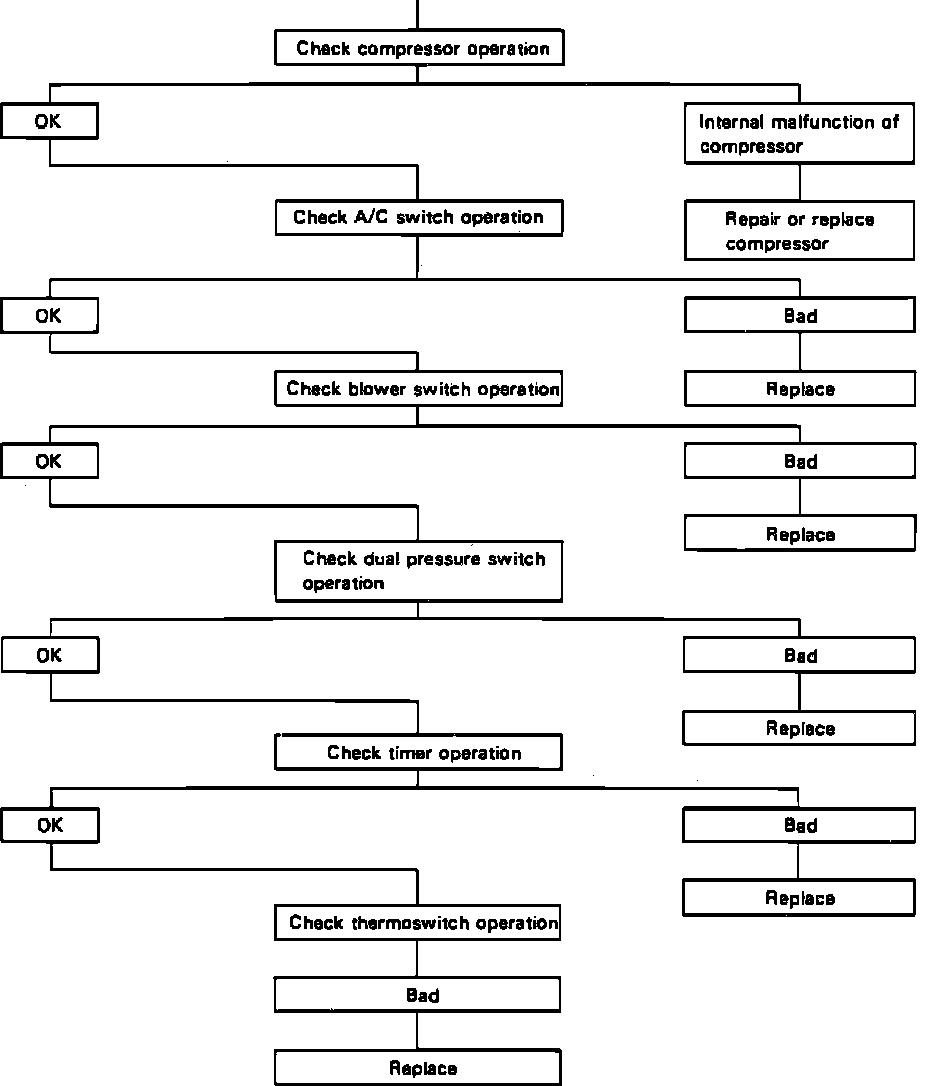

Fig. 2 Compressor does not run or provides insufficient air (Part 2 of 3).:

Fig. 2 Compressor does not run or provides insufficient air (Part 3 of 3).:
