Cruise Control Servo: Locations

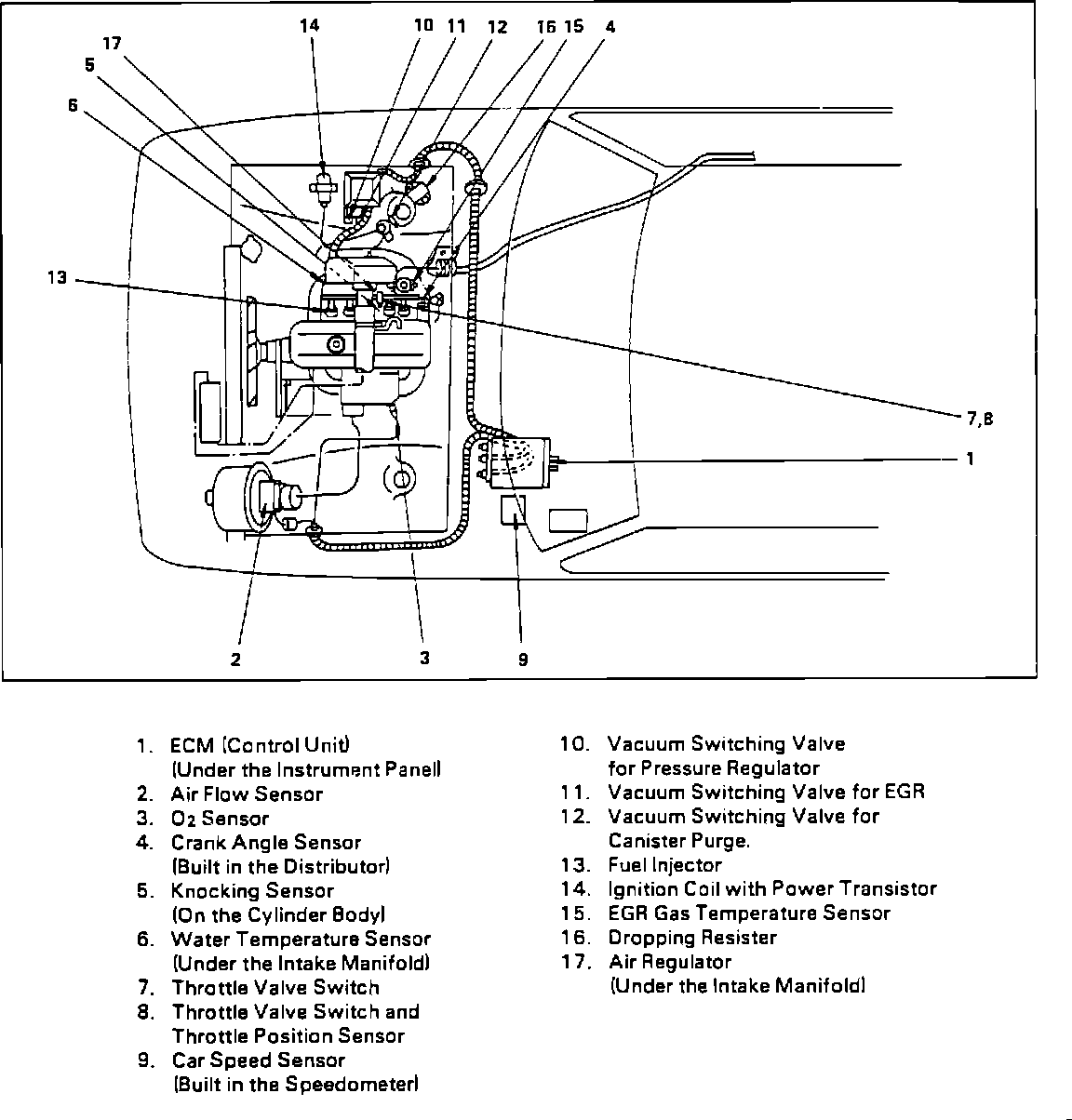

Engine Component Locations (Part 1 Of 2).:

Engine Component Locations (Part 1 Of 2).:

LH Side Of Engine Compartment

Applicable to: 1989 Models
