Marker Lamp

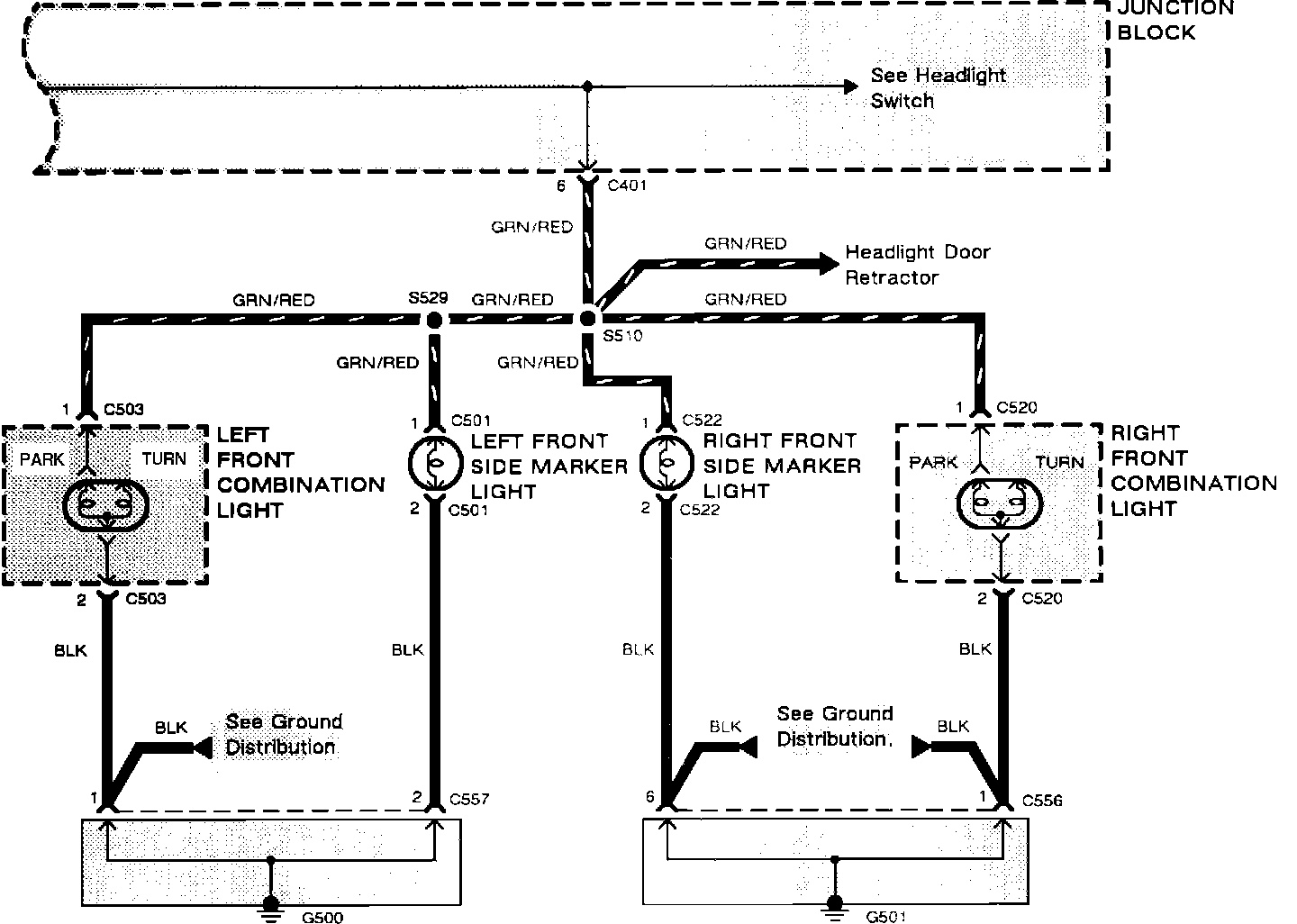

Exterior Lights: Side Marker, Park And License:



Exterior Lights: Side Marker, Park And License:
