Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
1990
>>
Impulse L4-1588cc 1.6L DOHC (4XE1-W)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>

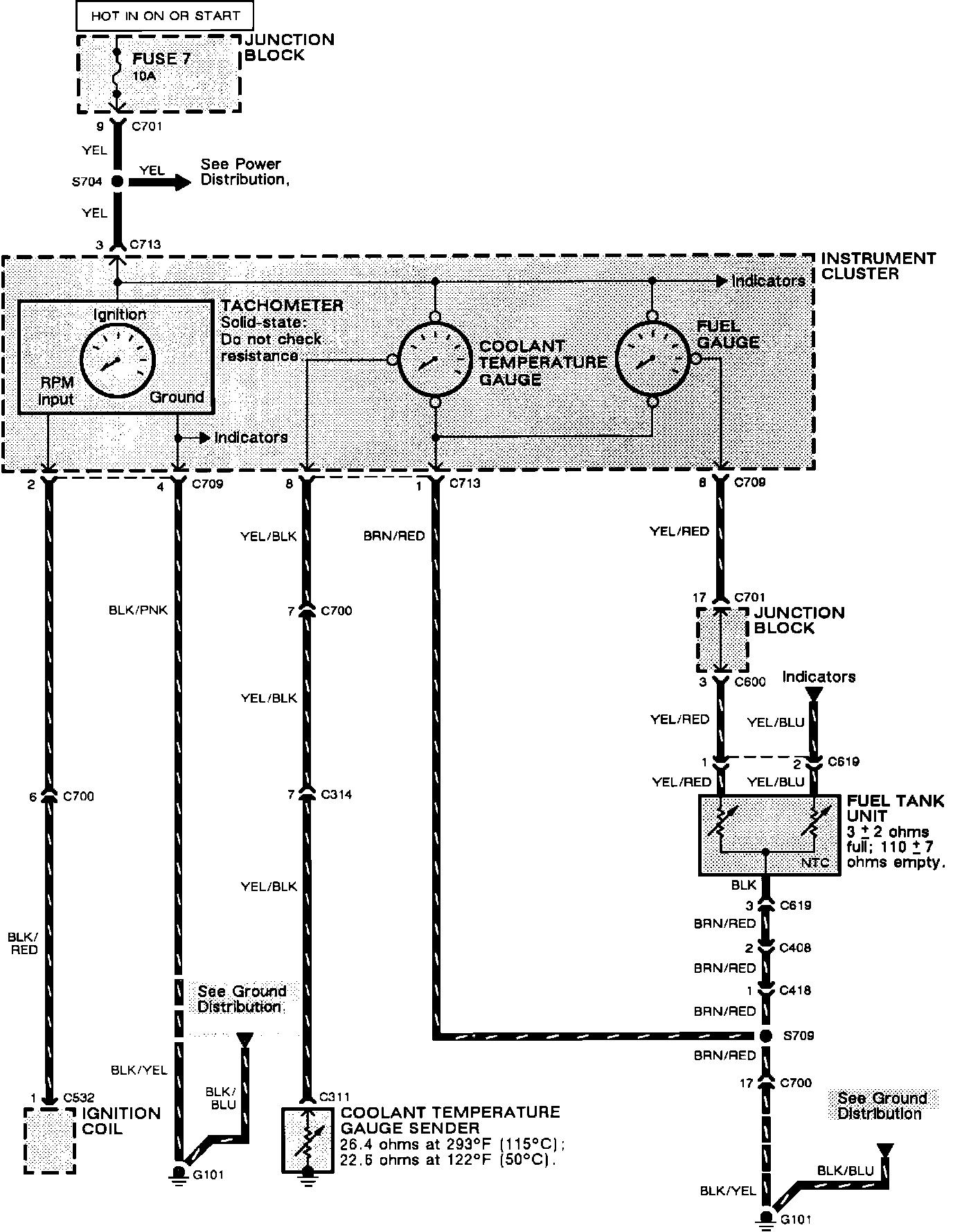

Instrument Panel Gauges
Instrument Panel Gauges
Instrument Panel: Gauges:
