Variable Induction System: Testing and Inspection

***UPDATED BY TSB #9004003, MARCH 1, 1990.



DIAGNOSTIC CHART

Secondary Air System Diagnostic Chart:

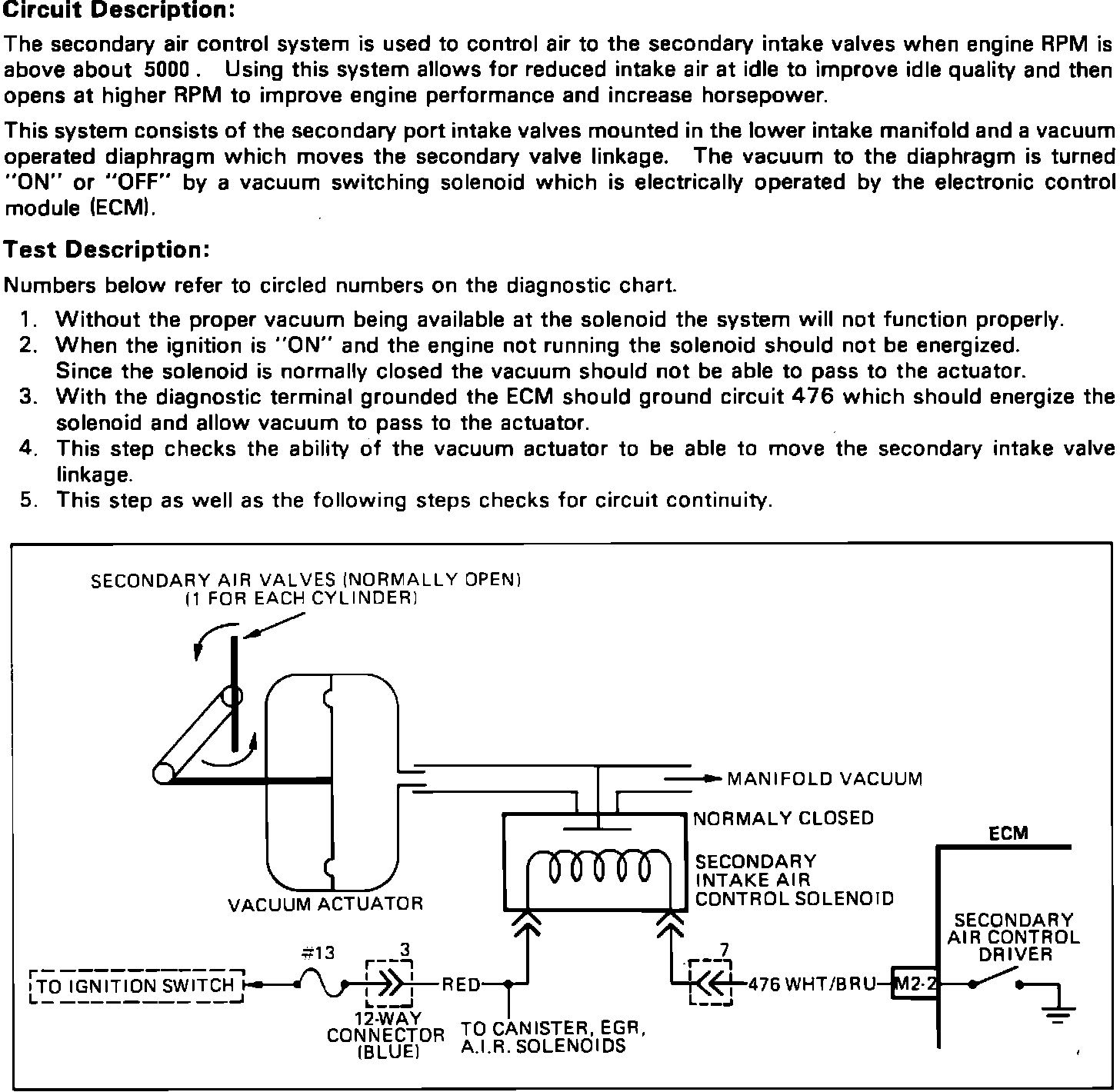

TEST DESCRIPTION

Secondary Air System Test Description:
