Home >> Isuzu >> 1991 >> Impulse L4-1588cc 1.6L DOHC Turbo (4XE1-WT) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Part 3 of 5

Part 3 of 5

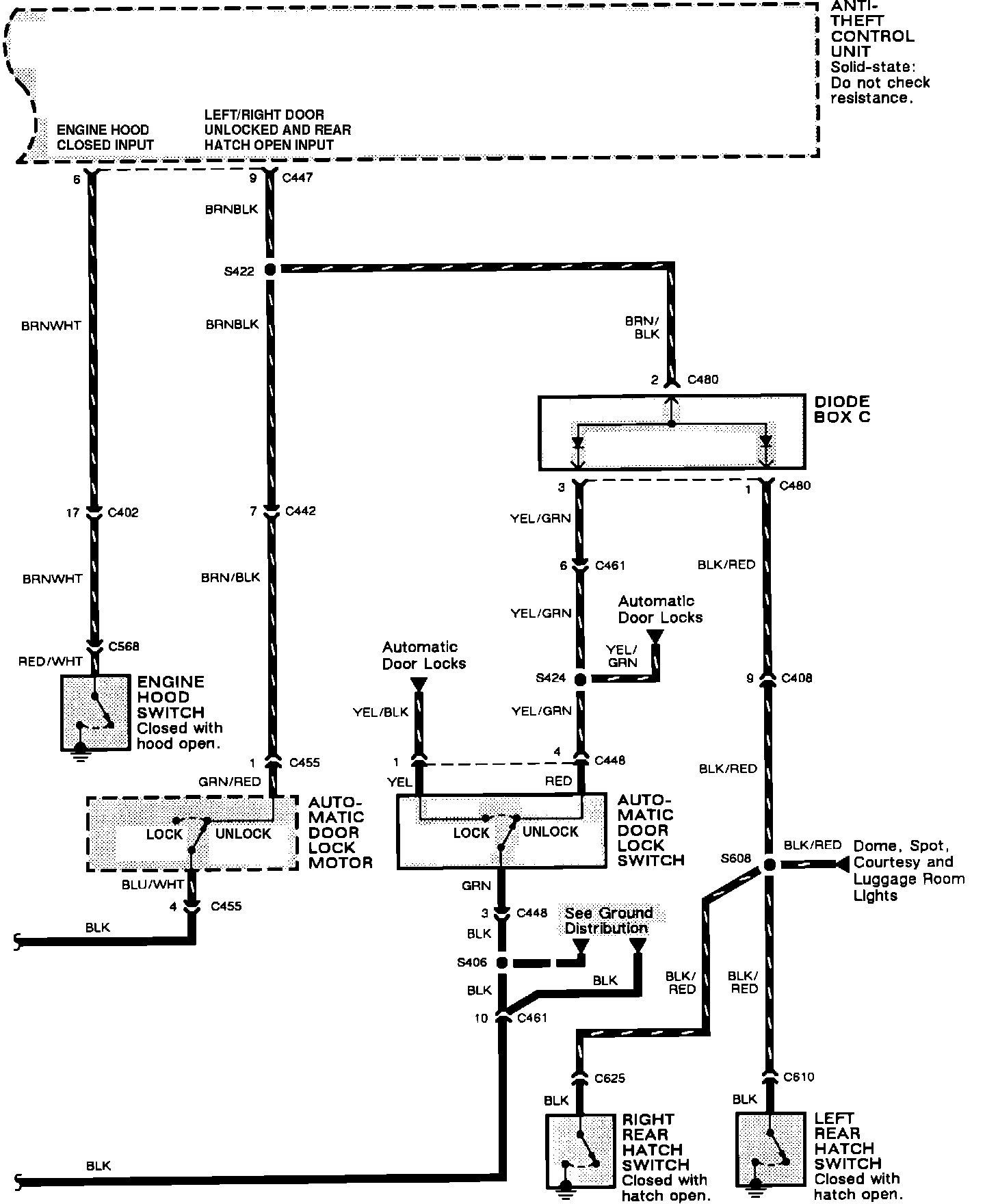

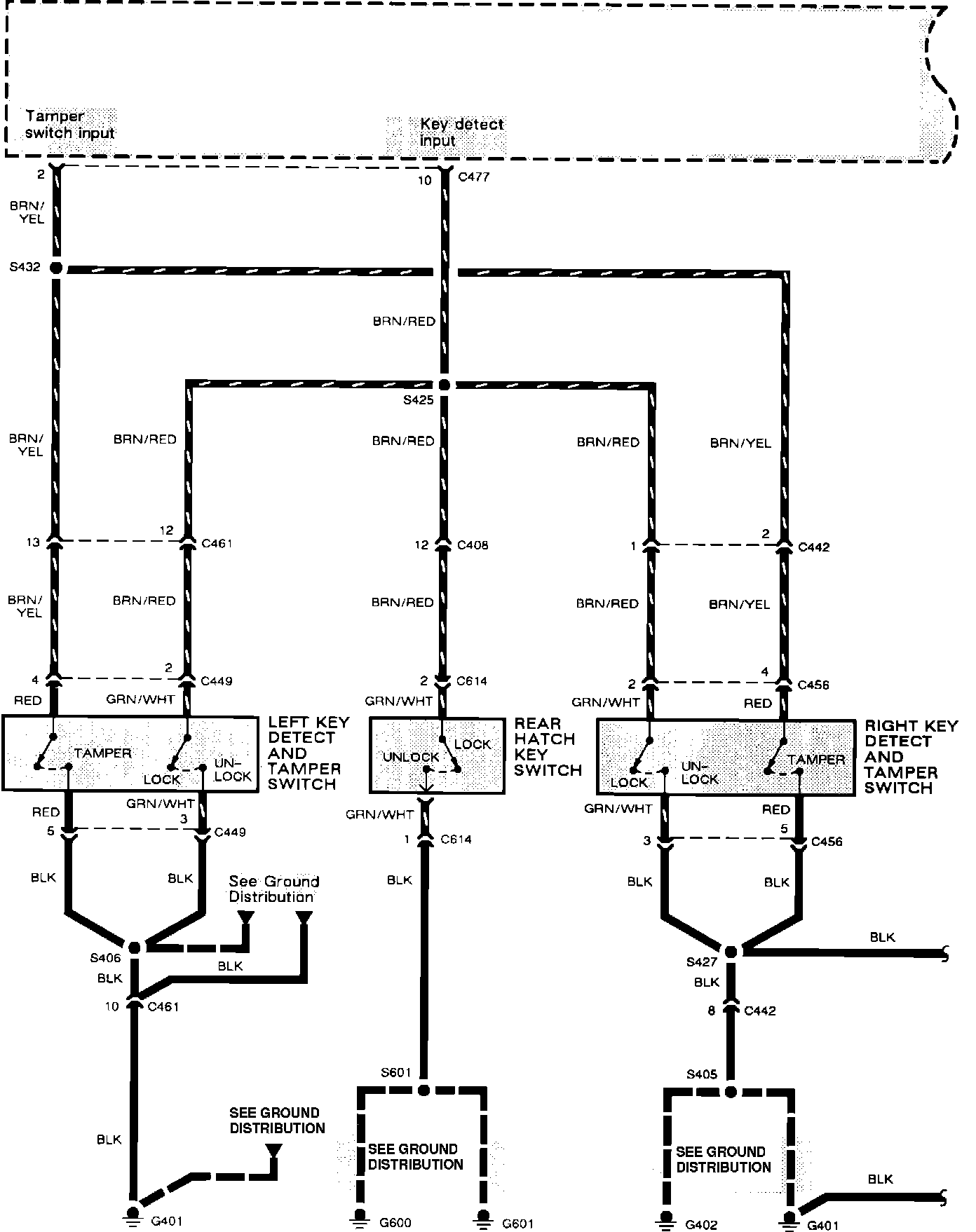

Anti-Theft System:



Anti-Theft System:
