Home
>>
Isuzu
>>
1991
>>
Impulse L4-1588cc 1.6L DOHC Turbo (4XE1-WT)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition System
>>
Non-Turbo
Non-Turbo

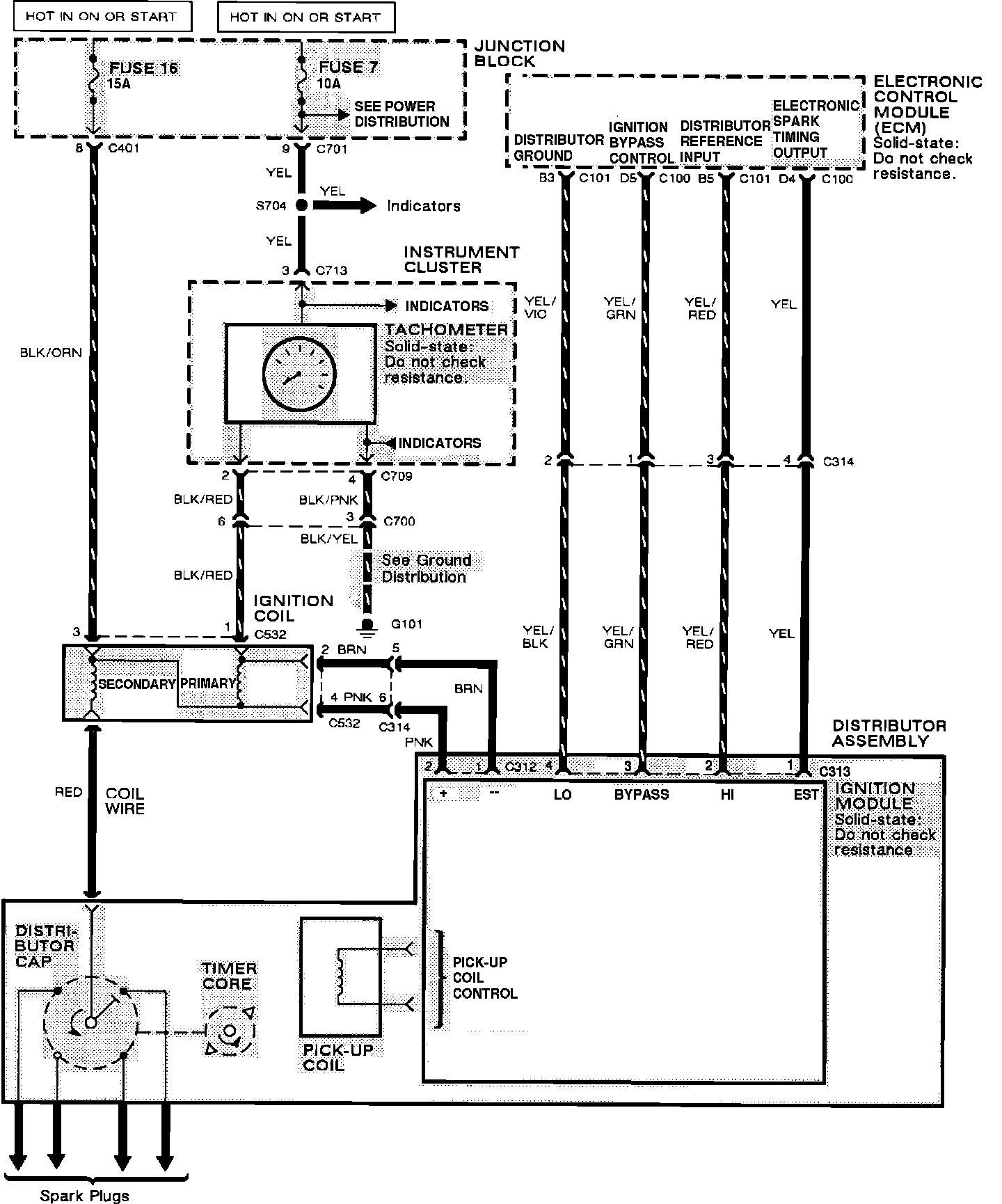

Ignition System (Non-Turbo Models):
