Home >> Isuzu >> 1991 >> Impulse L4-1588cc 1.6L DOHC Turbo (4XE1-WT) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Map Light

Map Light

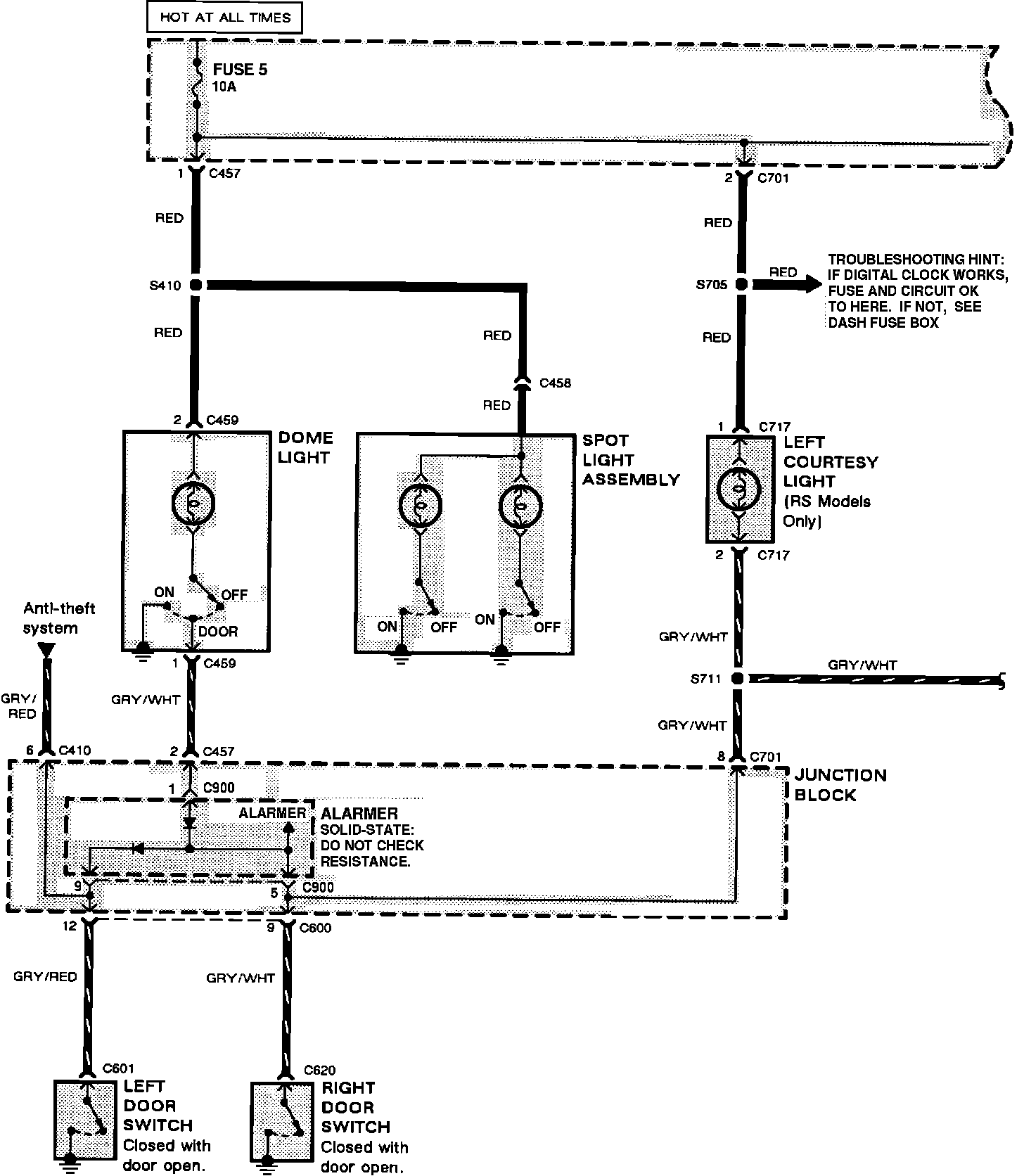

Dome, Spot, Courtesy And Luggage Room Lights:



Dome, Spot, Courtesy And Luggage Room Lights:
