Home >> Isuzu >> 1991 >> Impulse L4-1588cc 1.6L DOHC Turbo (4XE1-WT) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Door Lock Actuator >> Less Anti-Theft System

Less Anti-Theft System

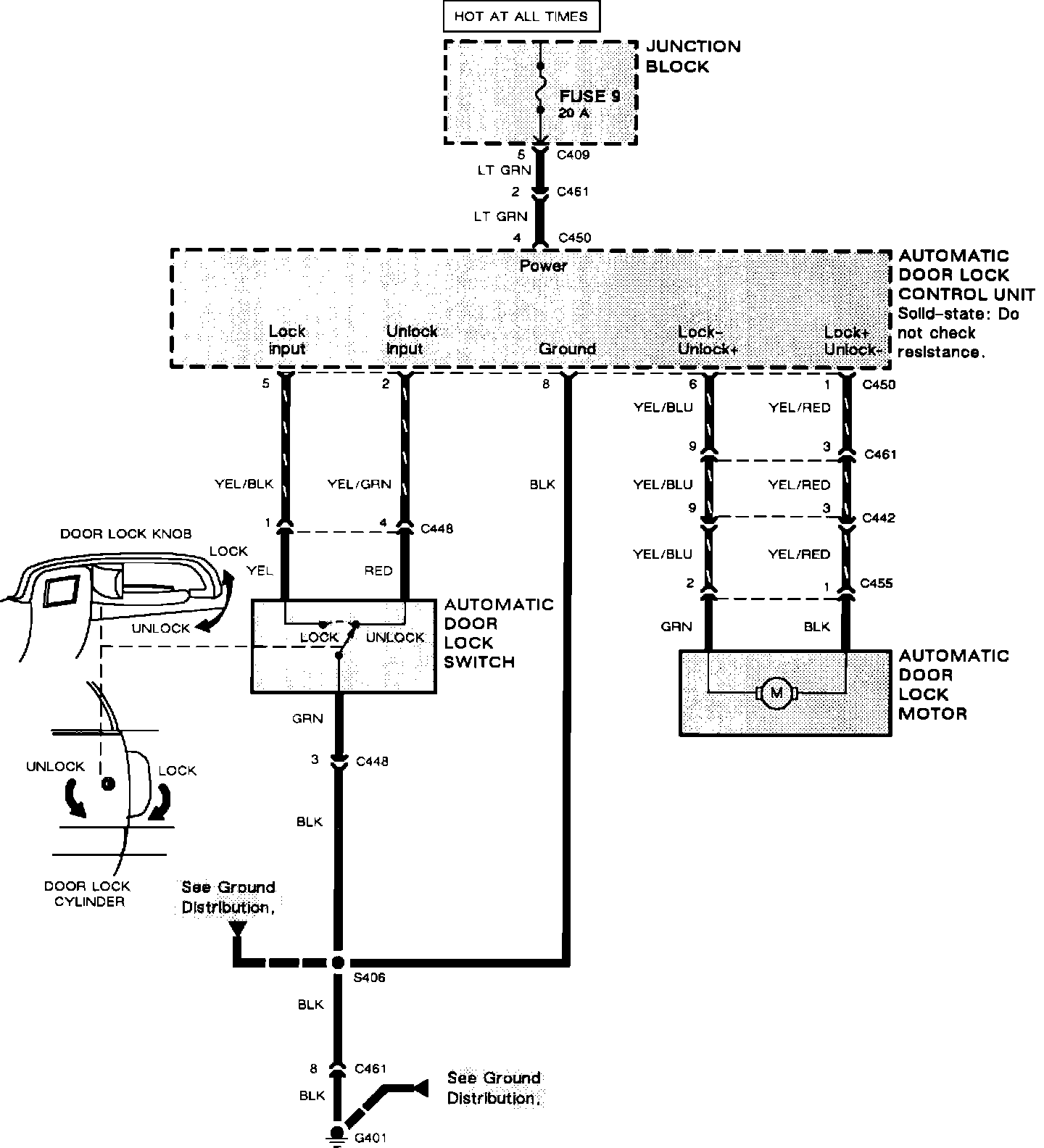

Power Door Locks:
