Impulse L4-1588cc 1.6L DOHC Turbo (4XE1-WT)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Door Lock Actuator
>>
With Anti-Theft System
With Anti-Theft System

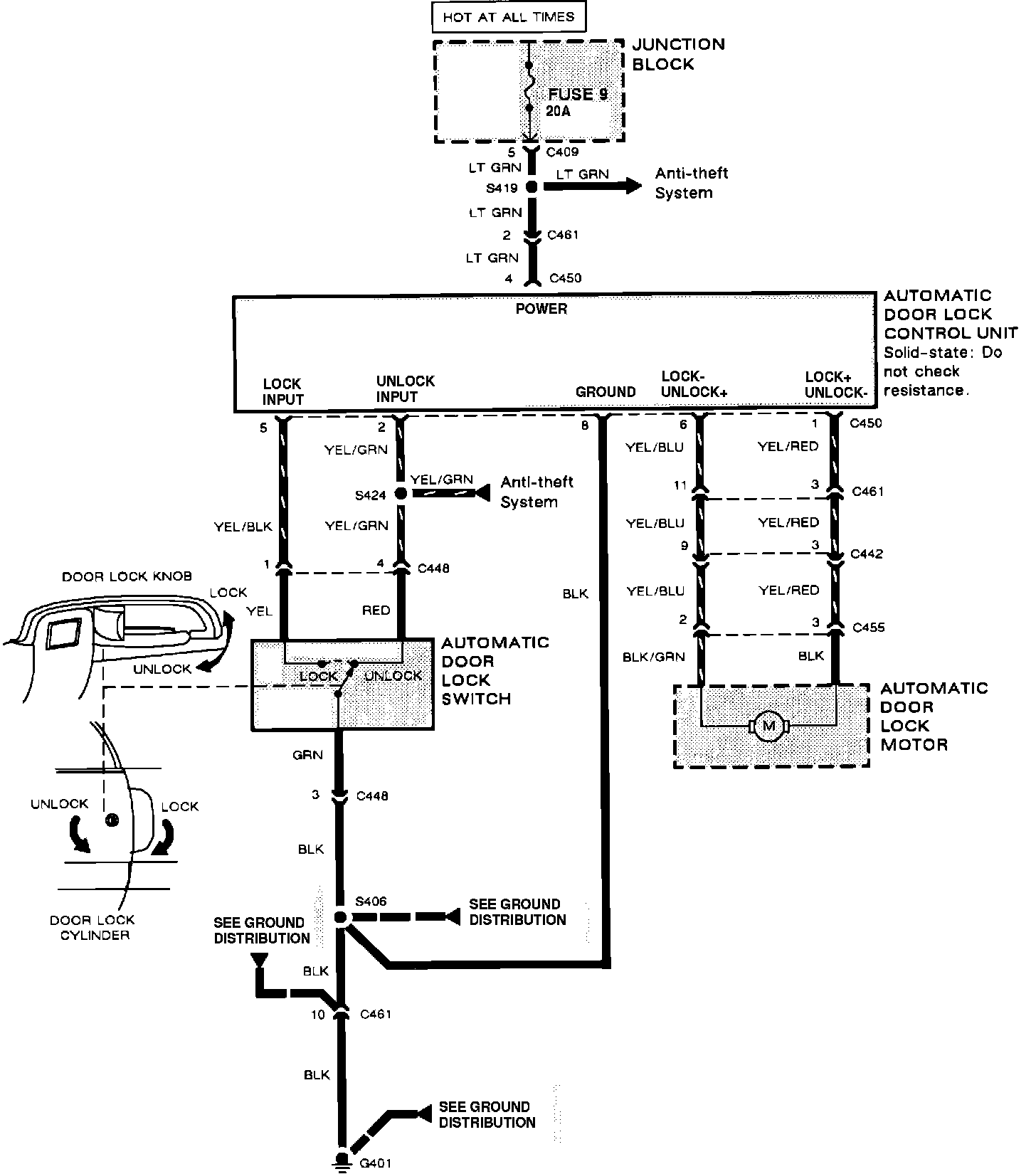

Power Door Locks (With Anti-Theft System):
