Home >> Isuzu >> 1991 >> Impulse L4-1588cc 1.6L DOHC Turbo (4XE1-WT) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> Neutral Relay

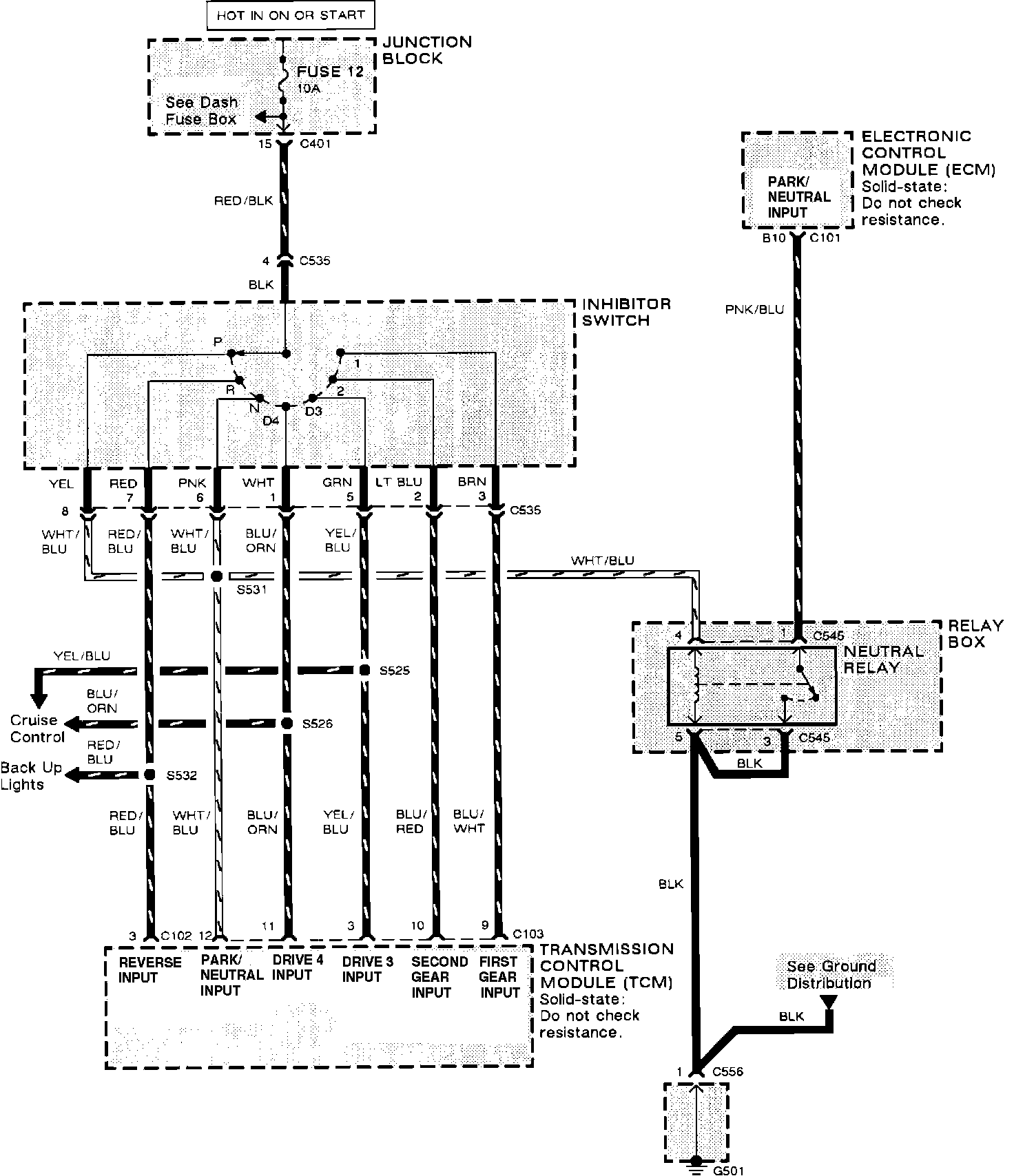

Neutral Relay

Automatic Transaxle Control:
