Home >> Isuzu >> 1992 >> Impulse Hatchback L4-1588cc 1.6L DOHC Turbo (4XE1-WT) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Oil Pressure Warning Lamp/Indicator >> Locations

Oil Pressure Warning Lamp/Indicator: Locations

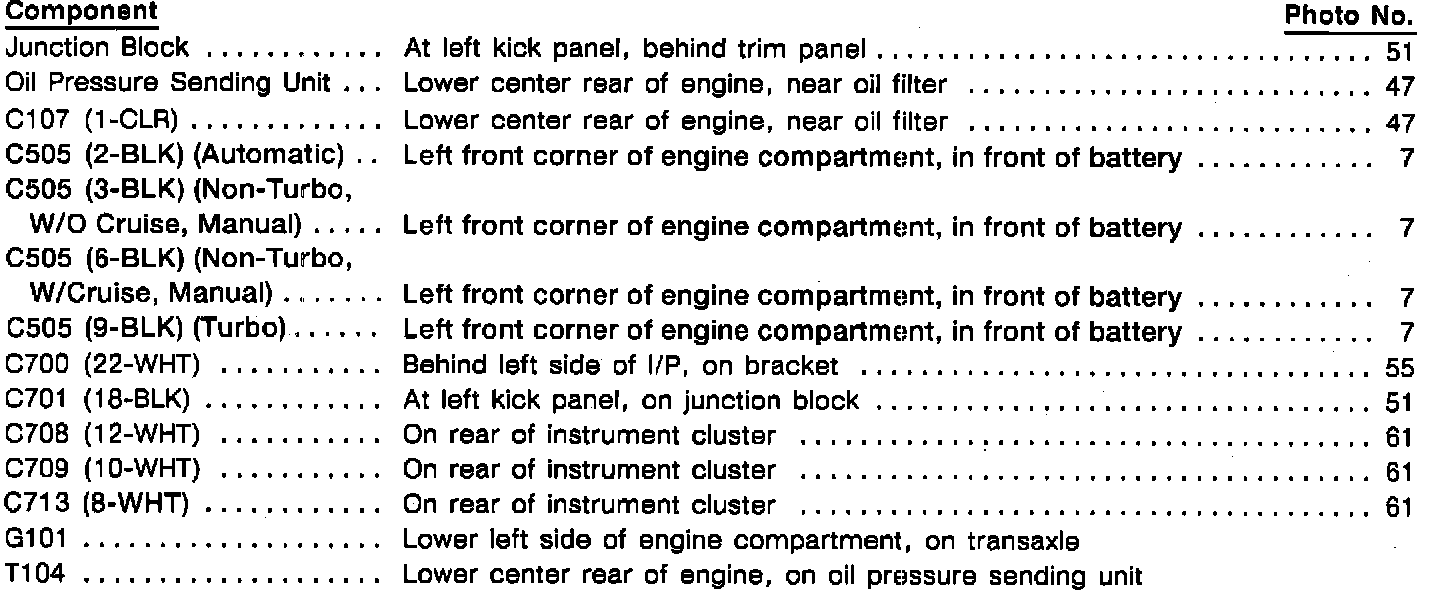

Oil Pressure Warning (Component Location Index):
