Paint - Cross References and Codes
BULLETIN NUMBERSB91-11-005
ISSUE DATE
June 6, 1991
GROUP
BODY
1992 PAINT COLORS AND CODES
VEHICLES AFFECTED
All 1992 Isuzu passenger cars and trucks.
SERVICE INFORMATION
This Service Bulletin contains paint codes for 1992 Isuzu vehicle colors. Refer to Service Bulletin SB90-11-007 for paint codes for 1986-1991 vehicle colors.

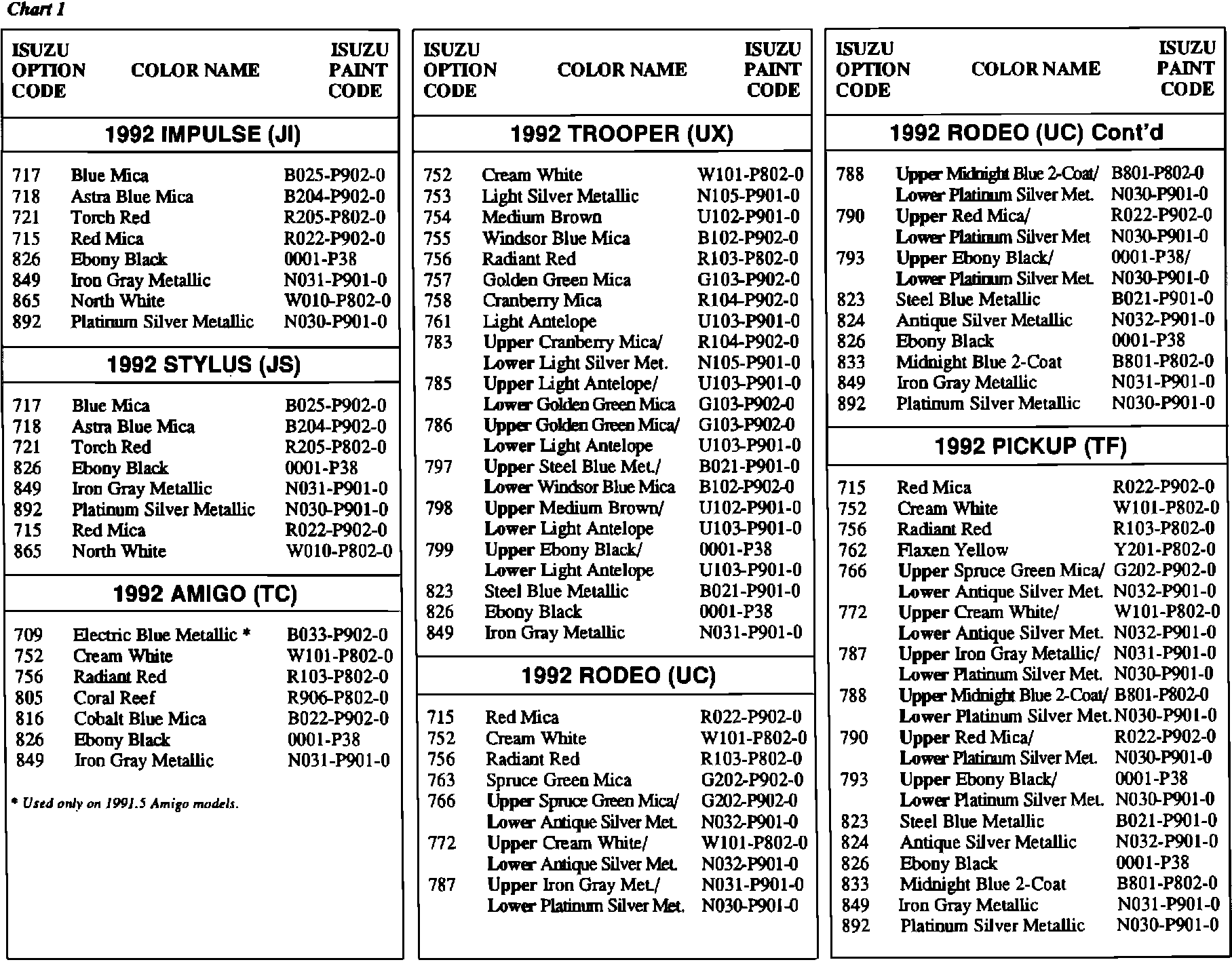

In Chart 1, the option codes and colors are listed by vehicle model, with a reference to paint code if applicable. The paint code is used in Chart 2 to identify the aftermarket paint vendor code.
On the vehicle, the option code is printed on the Service ID Plate, located under the hood, on the firewall at the rear of the engine compartment.
All aftermarket paint cross-reference information has been supplied by the paint manufacturers. In many cases, the aftermarket manufacturer's color name differs from the Isuzu color name listed in this Service Bulletin.
The last column in Chart 2 indicates whether or not the paint should be clear-coated. If a 2-tone vehicle uses one clear-coat color and one uncoated color, only the clear-coated color receives the clear coat.
IMPORTANT
Due to differences in manufacturing plants, be sure to specify the manufacturing plant when ordering paint. The color name is the same, but the paint formula differs between assembly plants. Check the VIN plate to verify where the vehicle was manufactured:
- Pickups with VINs starting with JAA were manufactured in Japan.
- Pickups and Rodeos with VINs starting with 4S1 or 4S2 were manufactured at SIA. Give this information to your paint supplier to ensure receiving the exact formula required.
