Home
>>
Isuzu
>>
1993
>>
Stylus L4-1809cc 1.8L DOHC (4XF1-W)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Specifications

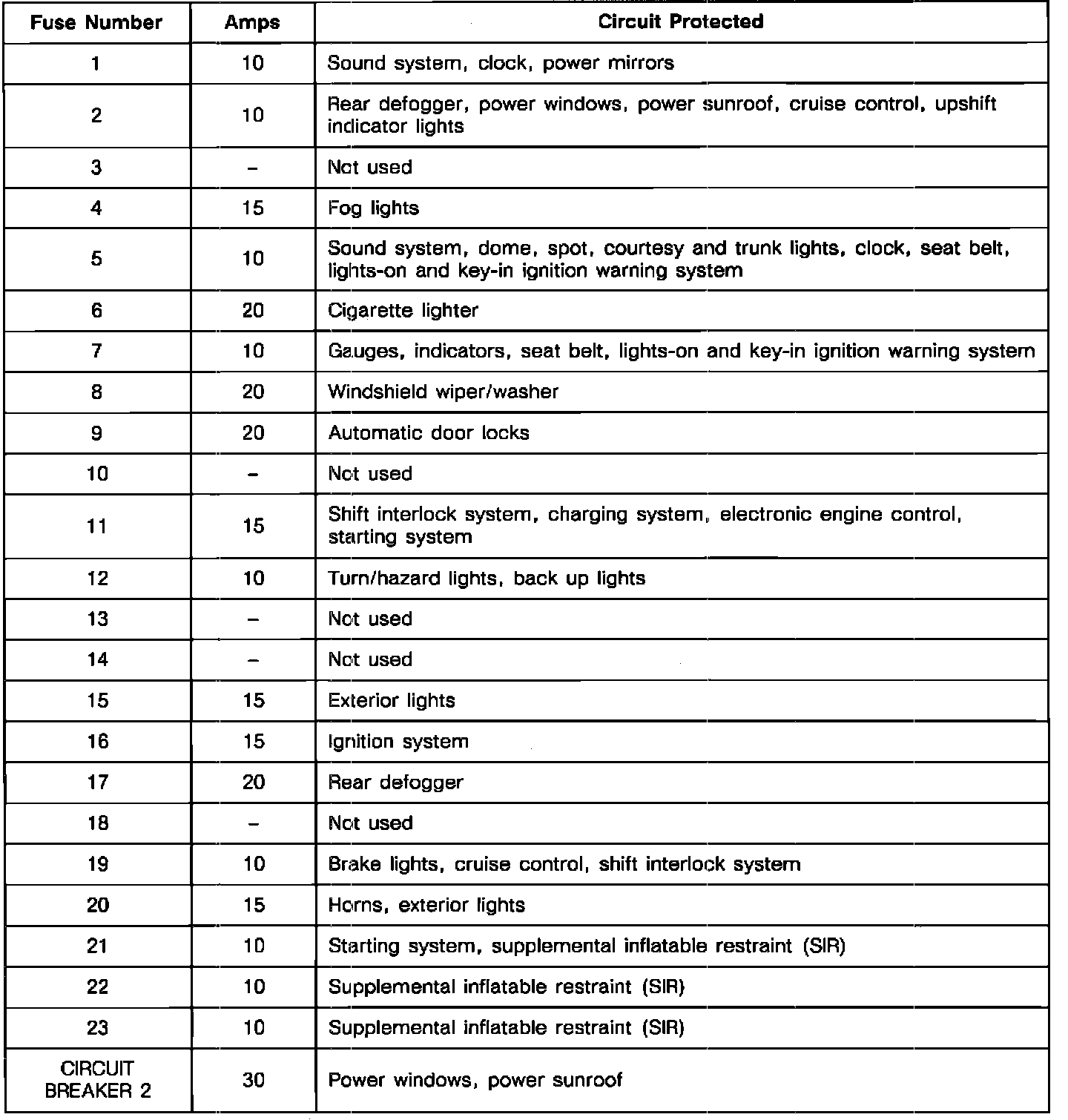

Fuse: Specifications
Fuse Panel Details: Junction Block:
Junction Block:
