Mirrors
>>
System Diagram
System Diagram

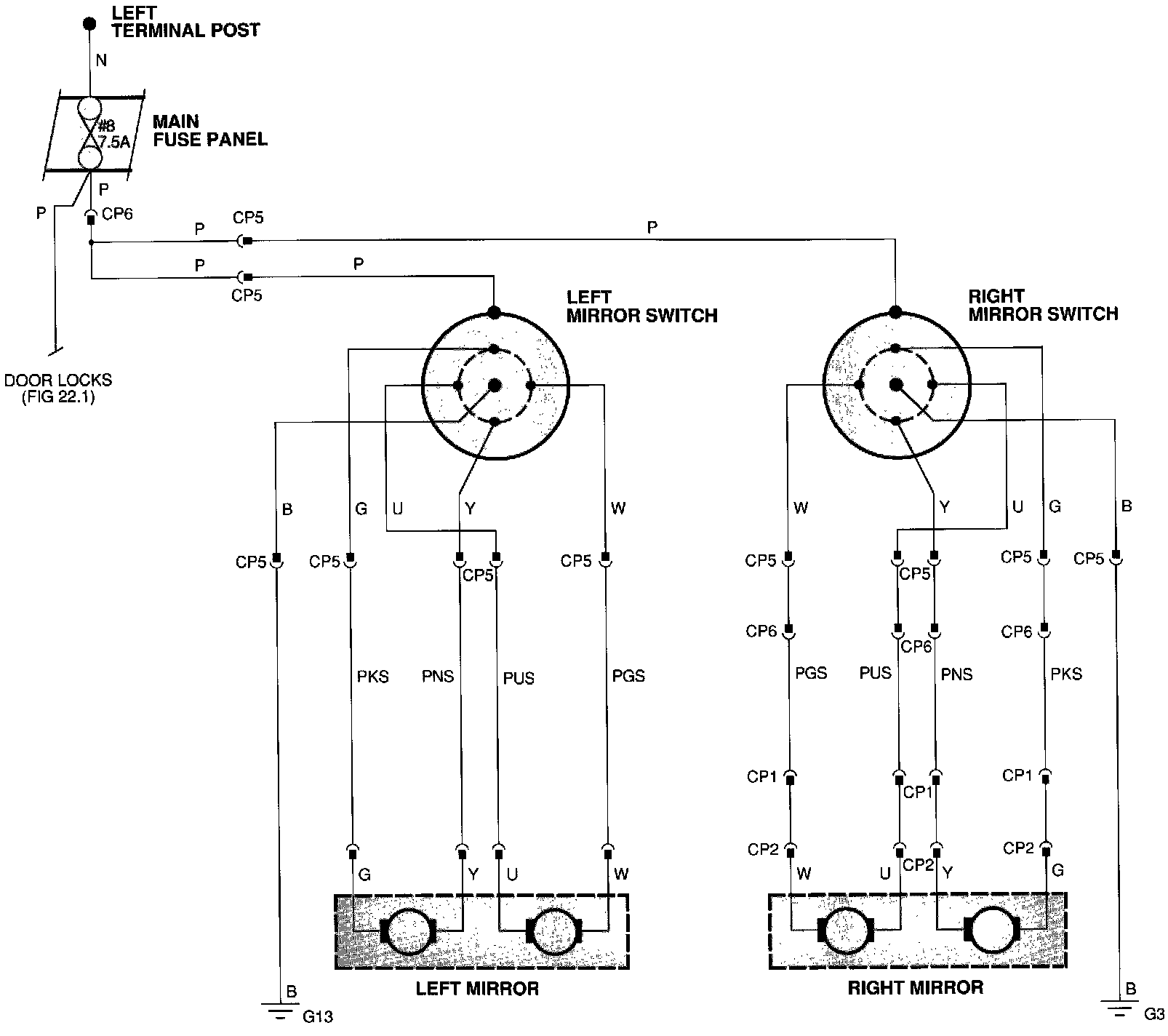

Power Mirrors:
Wiring Diagram

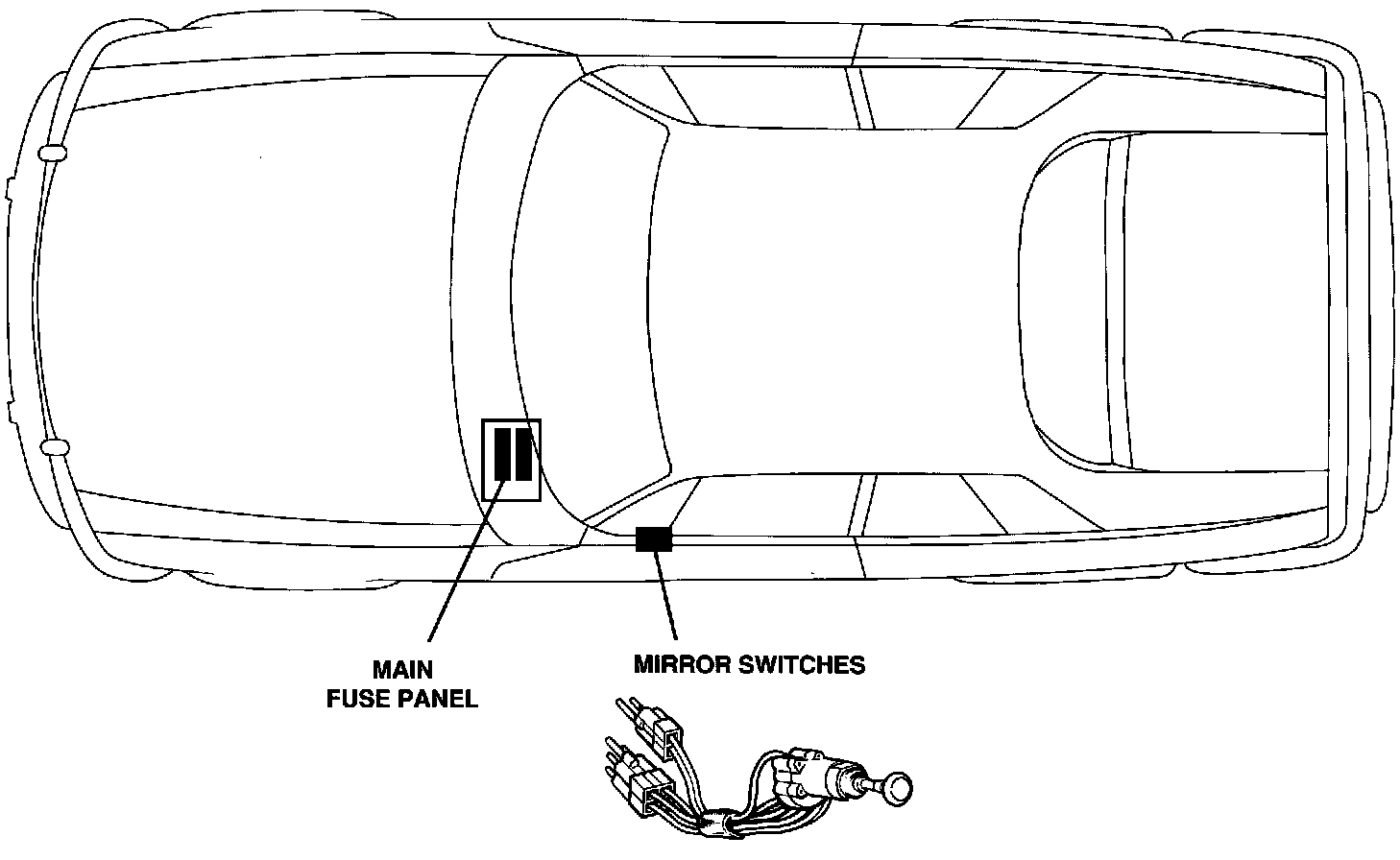

Power Mirrors:
Component Locations
