Trip Computer

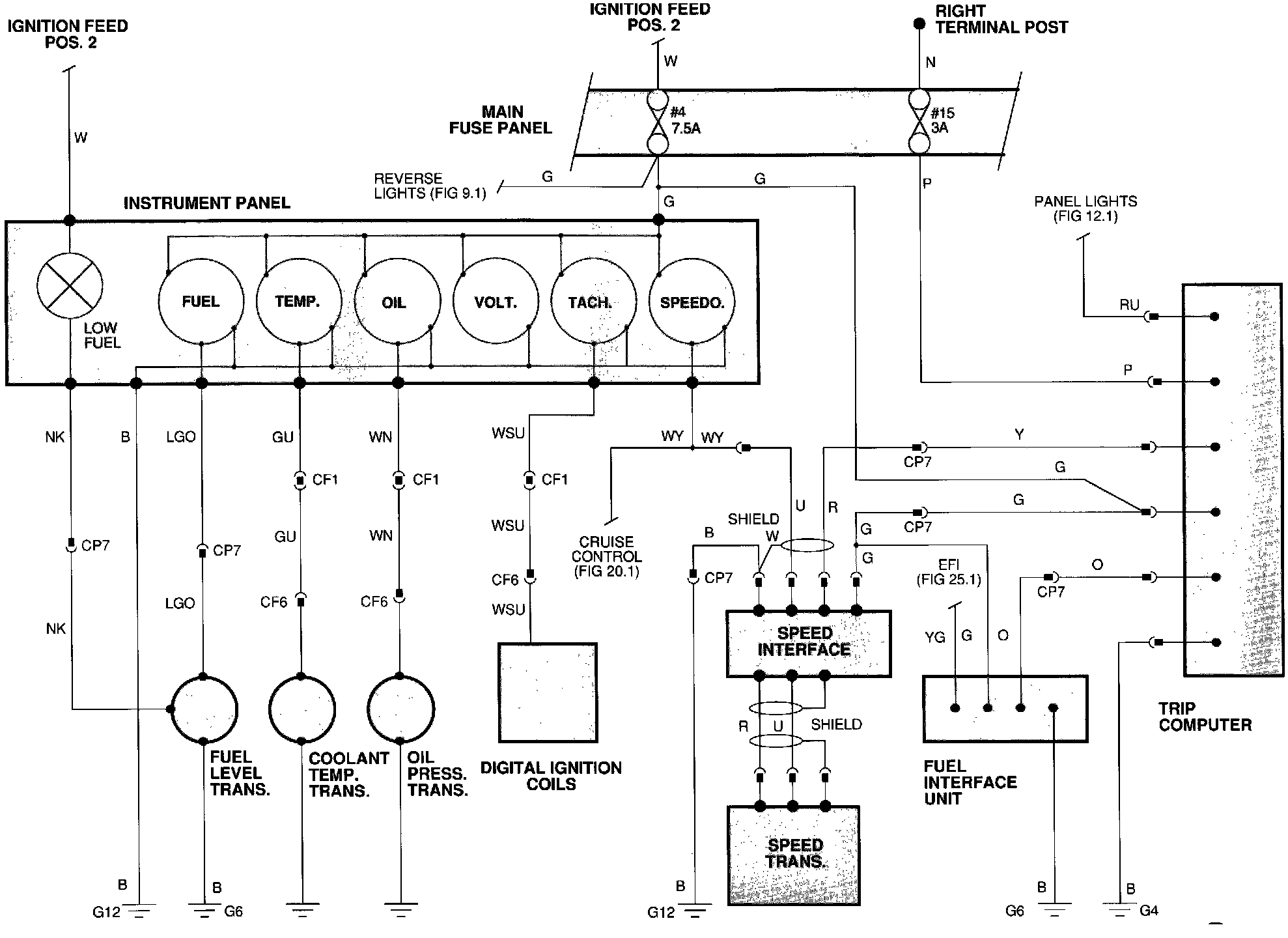

Instrumentation; Trip Computer:





Wiring Diagram

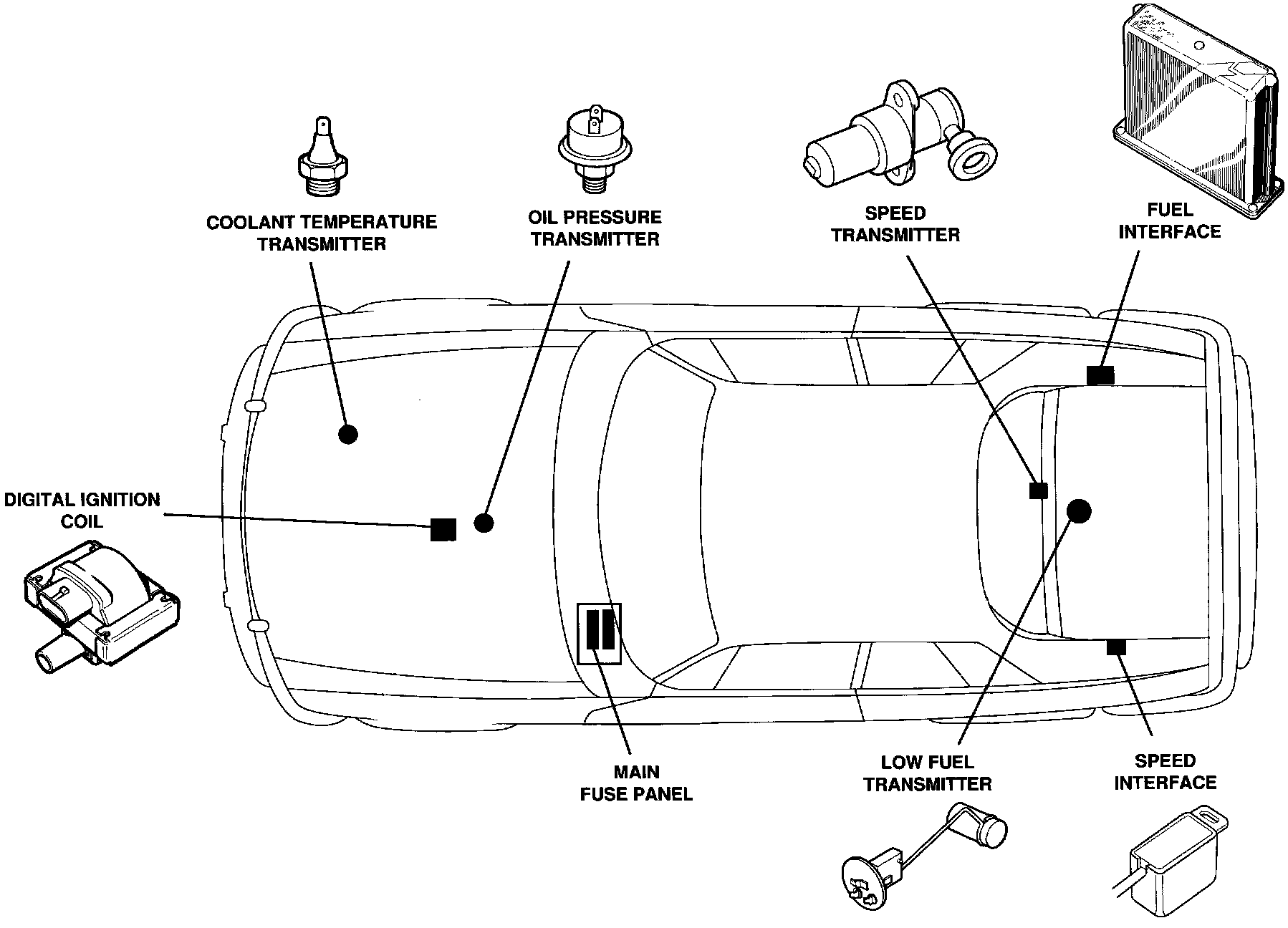

Instrumentation; Trip Computer:





Component Locations
