Instrument Panel Module, Renew

INSTRUMENT PANEL MODULE

Fig 1:

Fig 2:

RENEW

Disconnect the battery earth cable.

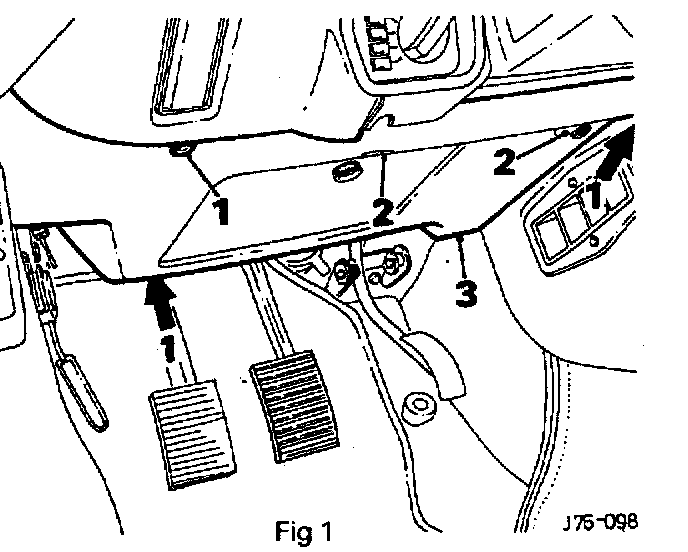

Remove the driver's side dash liner securing screws (1 Fig 1) and remove the liner (3 Fig 1).
Remove the centre securing strip and screw from instrument panel surround (1 Fig 2).
Remove the screws securing the side pieces of the surround and remove the surround (2 Fig 2).
Prise of the covers from the securing screw apertures (3 Fig 2) and remove the screws securing the instrument panel to the fascia (4 Fig 2).
Ease the panel forward and disconnect the cable harness at the block connectors.
Slacken the steering wheel adjusiment ring and extend the steering column to its maximum travel.
Manoeuvre the instrument panel clear of the fascia.
Fit the new panel to the fascia and connect the cable harnesses. Fully locate the panel to the fascia, fit and tighten the securing screws.
Fit the screw aperture covers. Refit the panel surround.
Refit the dash liner.
Reconnect the battery earth cable.
