Fig. 14

��GHorns, Cigar Lighter, Transmission Kickdown:

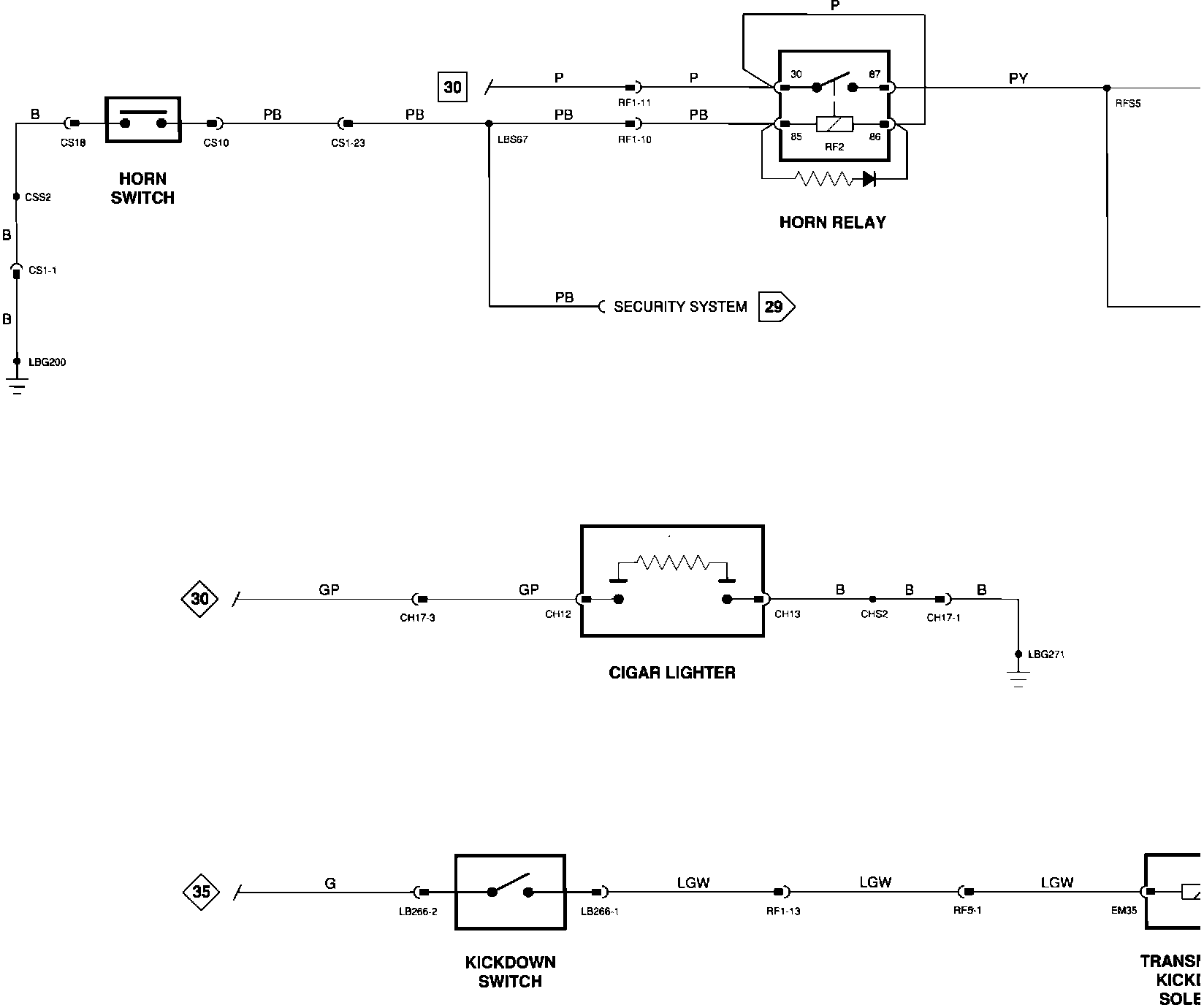

Wiring Diagram

Horns, Cigar Lighter, Transmission Kickdown:

Component, connectors, grounds
