Mirrors
>>
System Diagram
System Diagram
? Driver Power Seat, Power Mirrors:

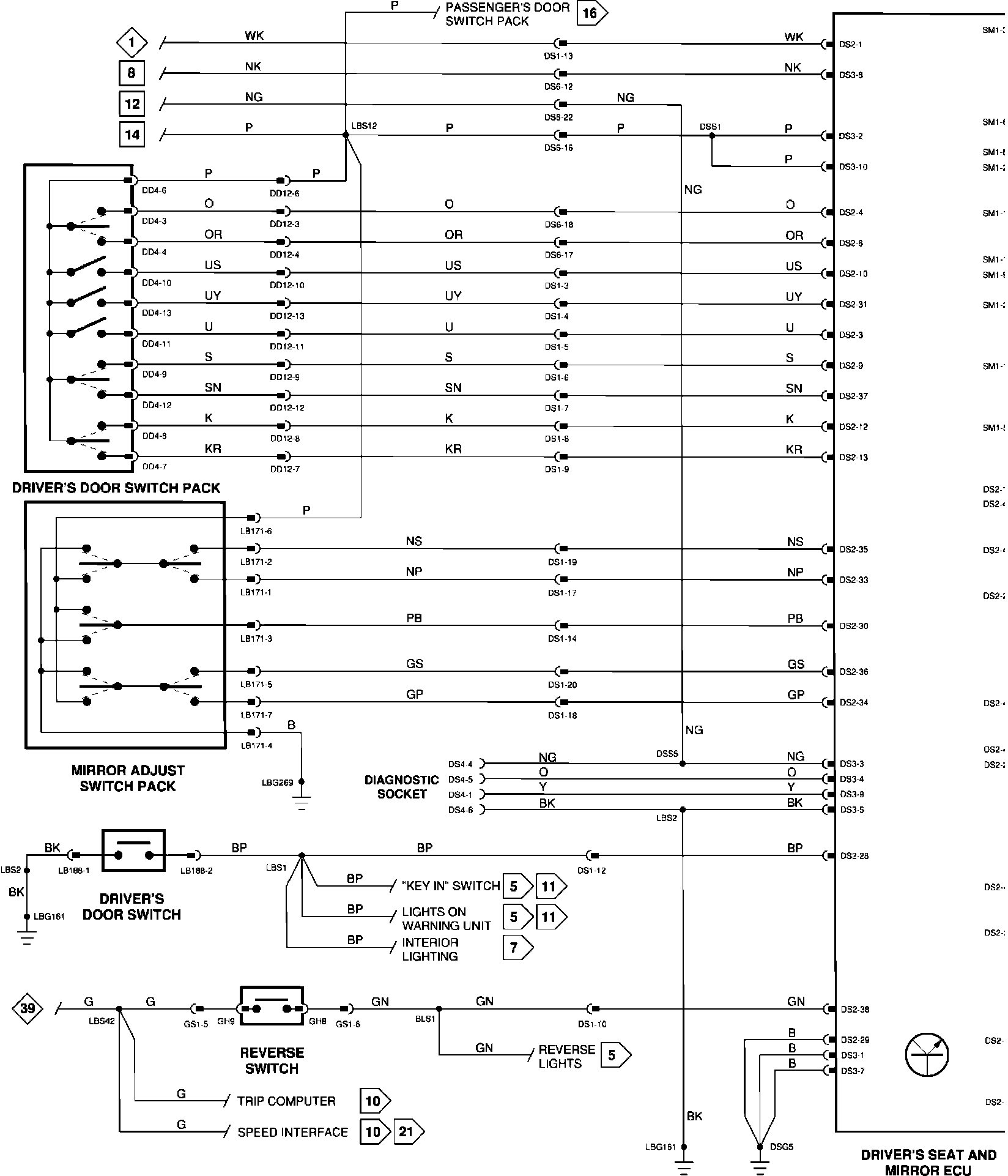

Wiring Diagram
Driver's Power Seat, Power Mirrors:

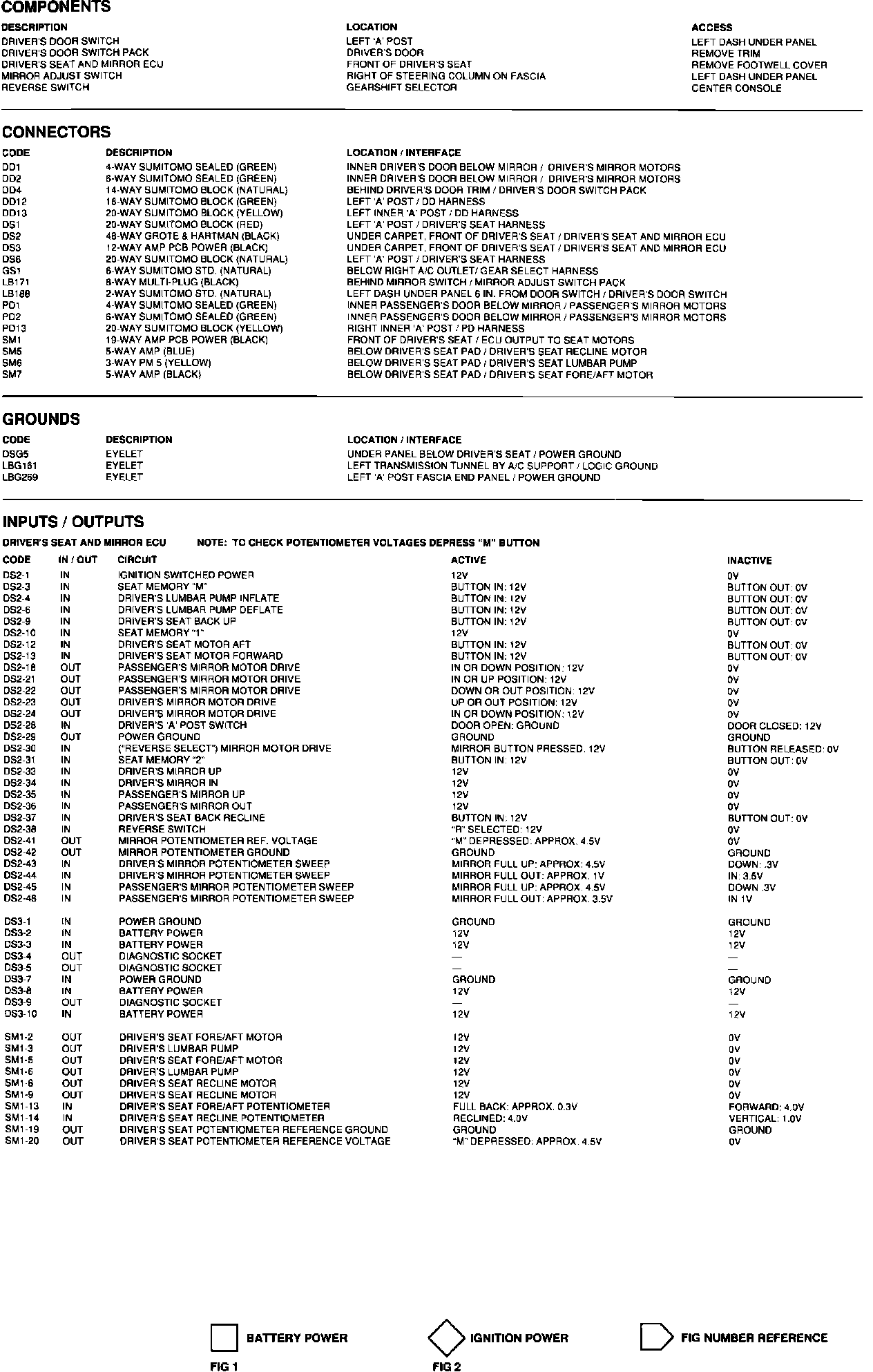

Component, connectors, grounds, inputs/outputs
