Trip Computer

��Trip Computer:

Wiring Diagram

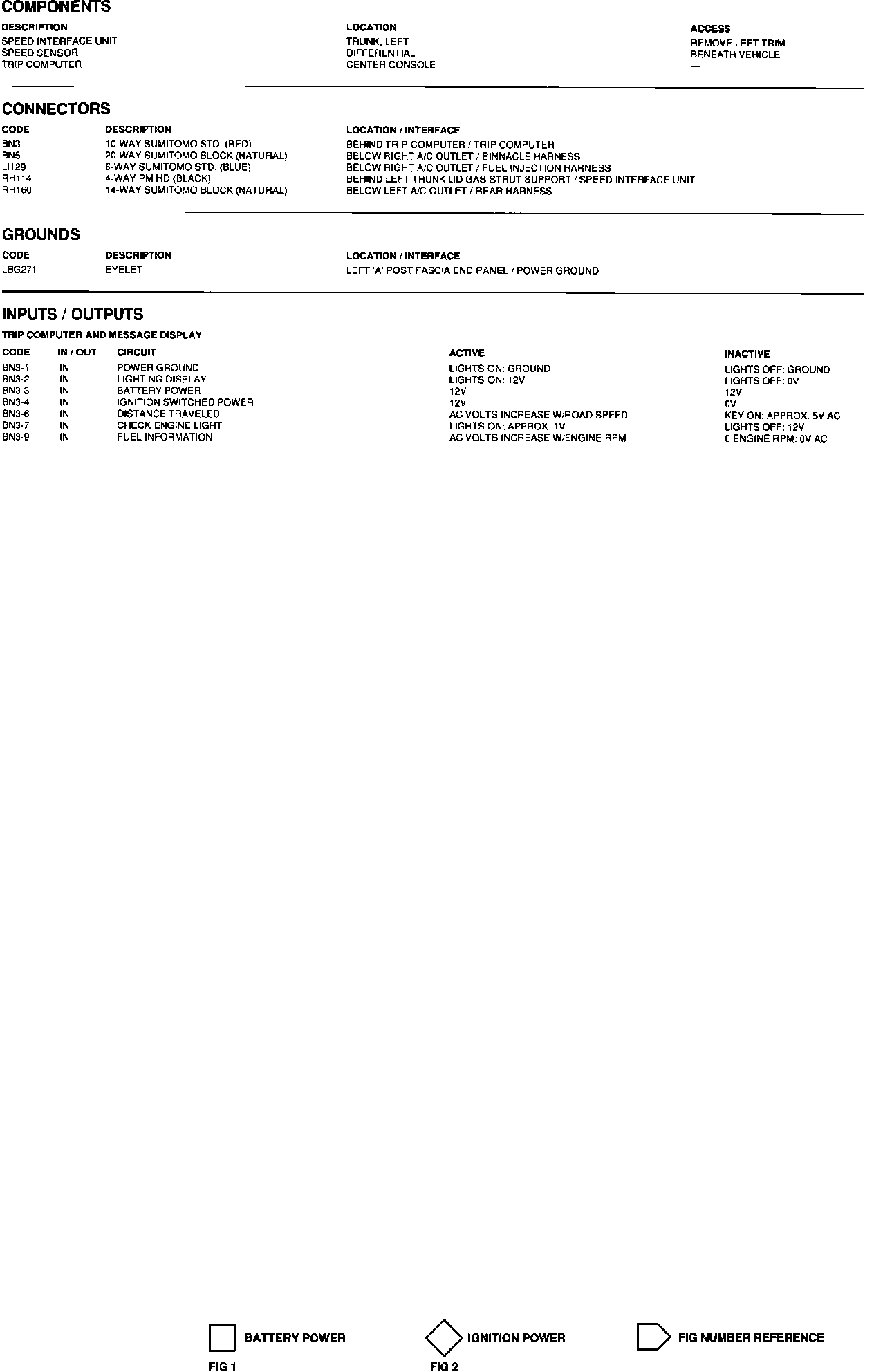

Trip Computer:

Component, connectors, grounds, inputs/outputs
