Home >> Jaguar >> 1994 >> XJ-12 (X300) V12-6.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams





Wiring Diagram

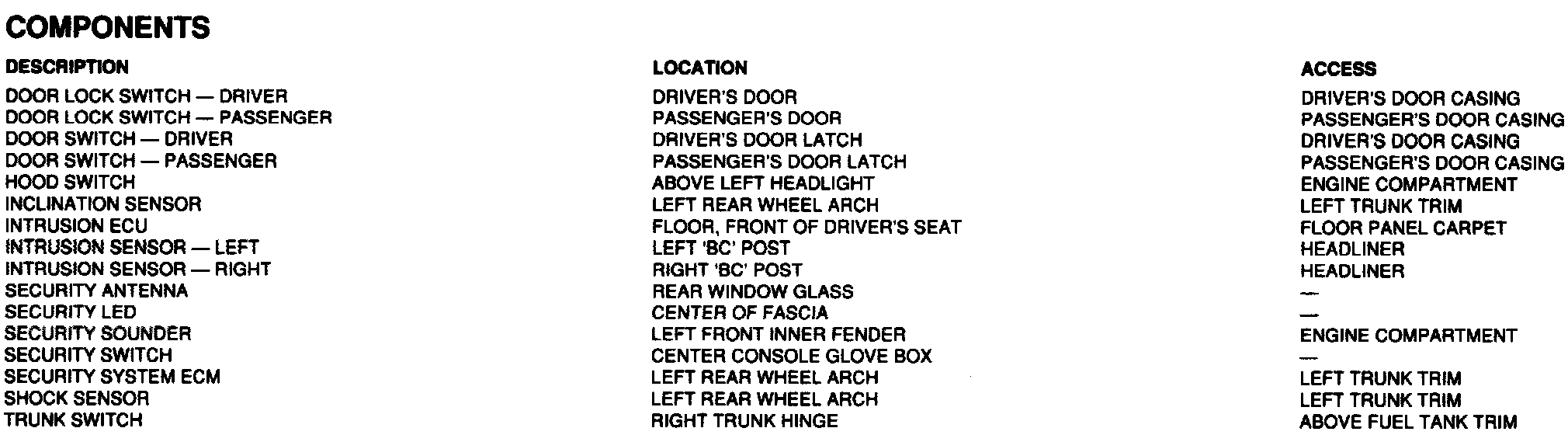

Components





Connectors

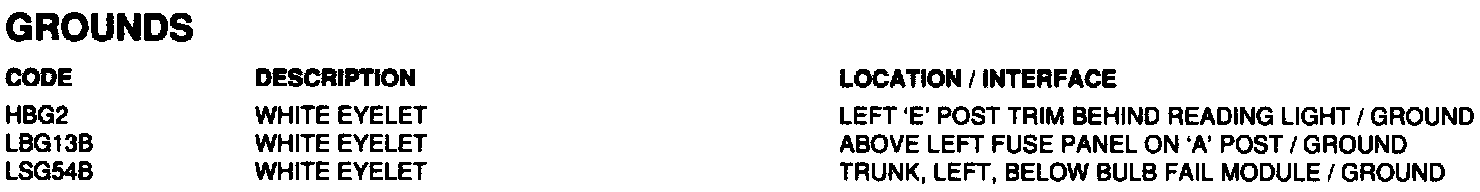

Grounds

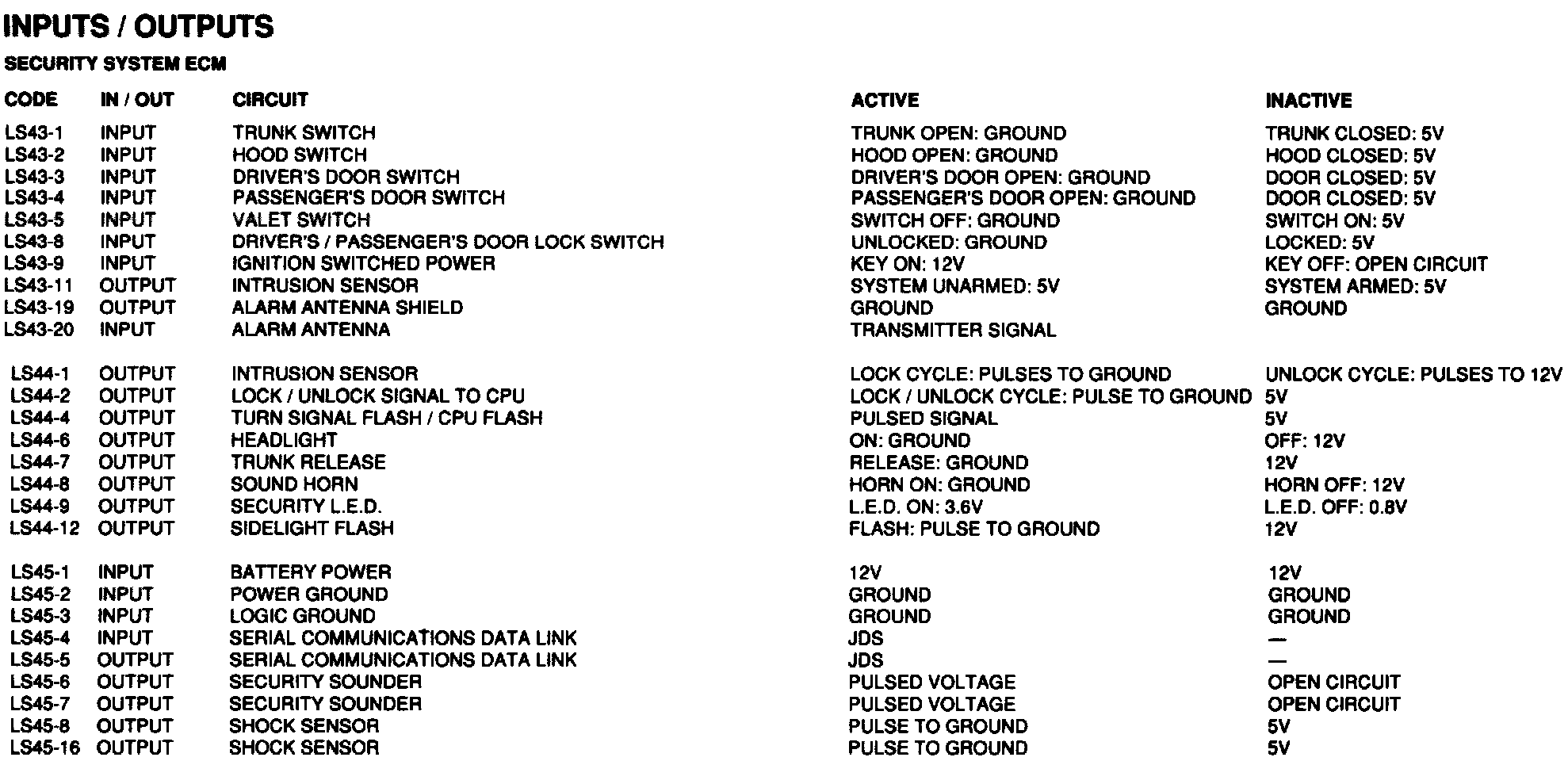

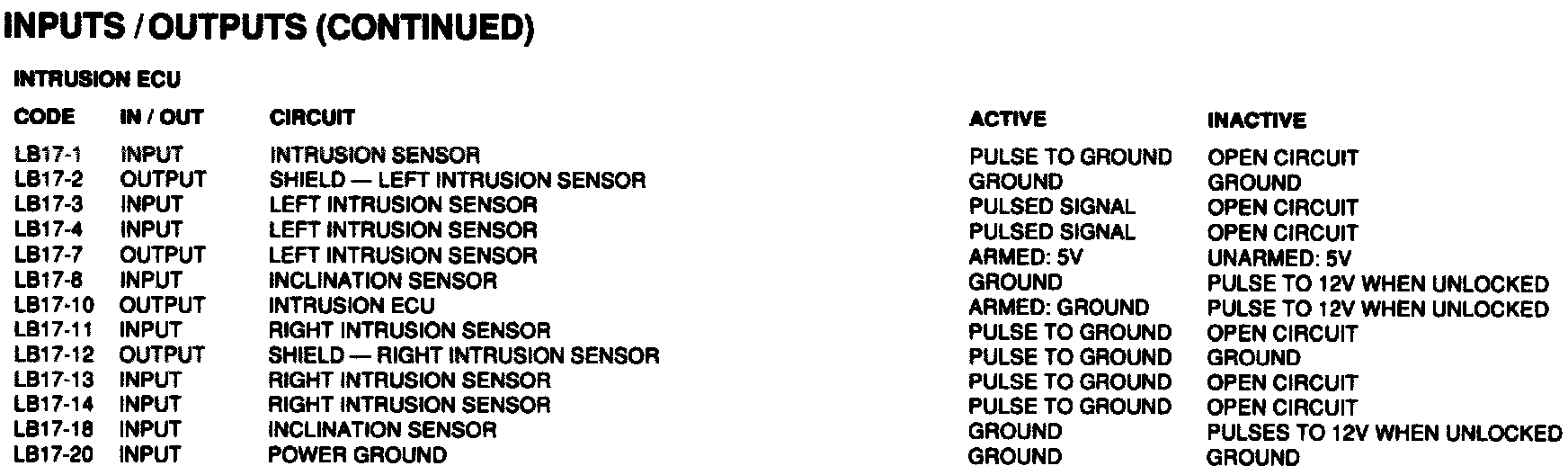

Inputs/Outputs
