Home >> Jaguar >> 1994 >> XJ-12 (X300) V12-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> System Diagram

System Diagram

8NJ:

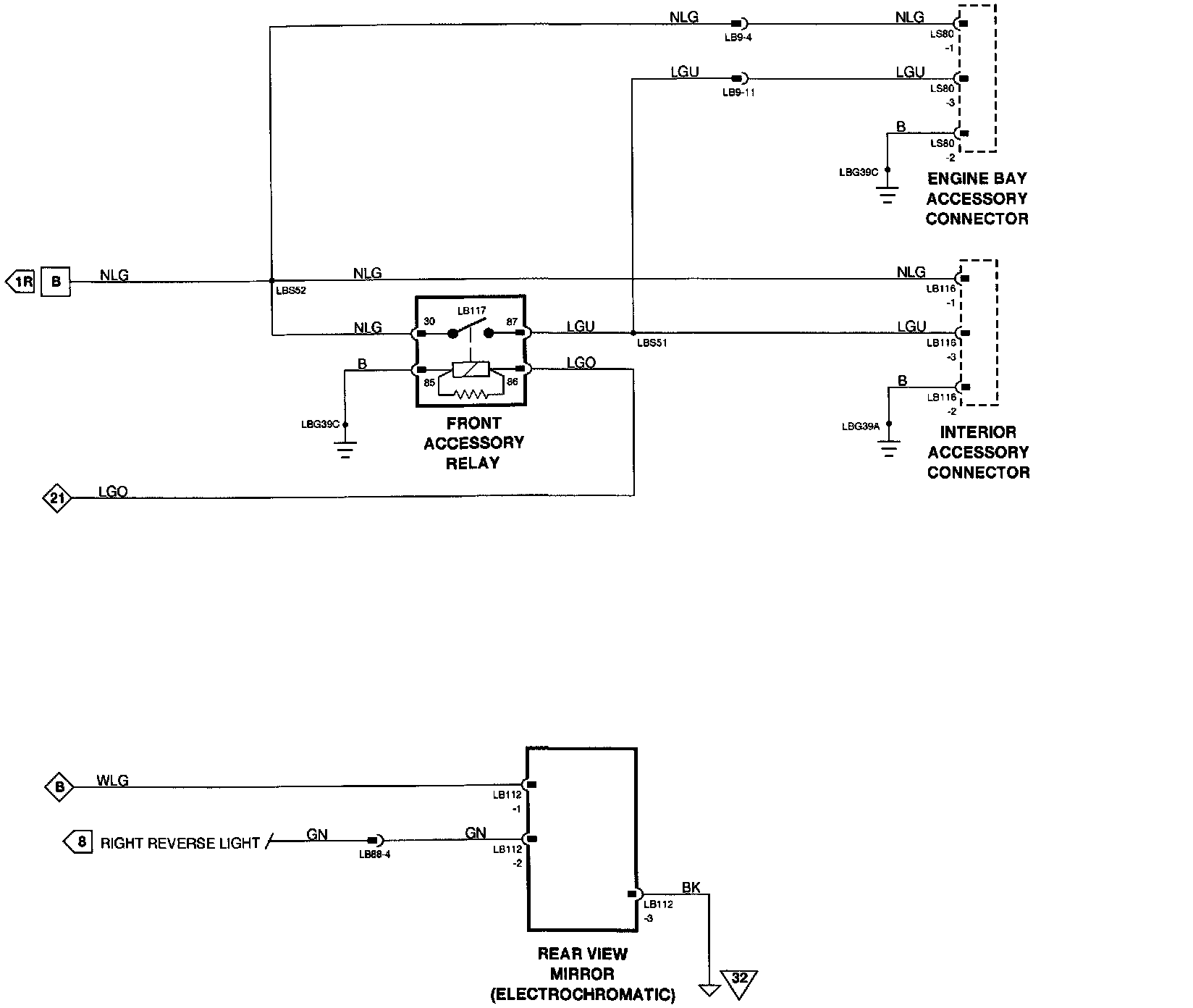

Wiring Diagram

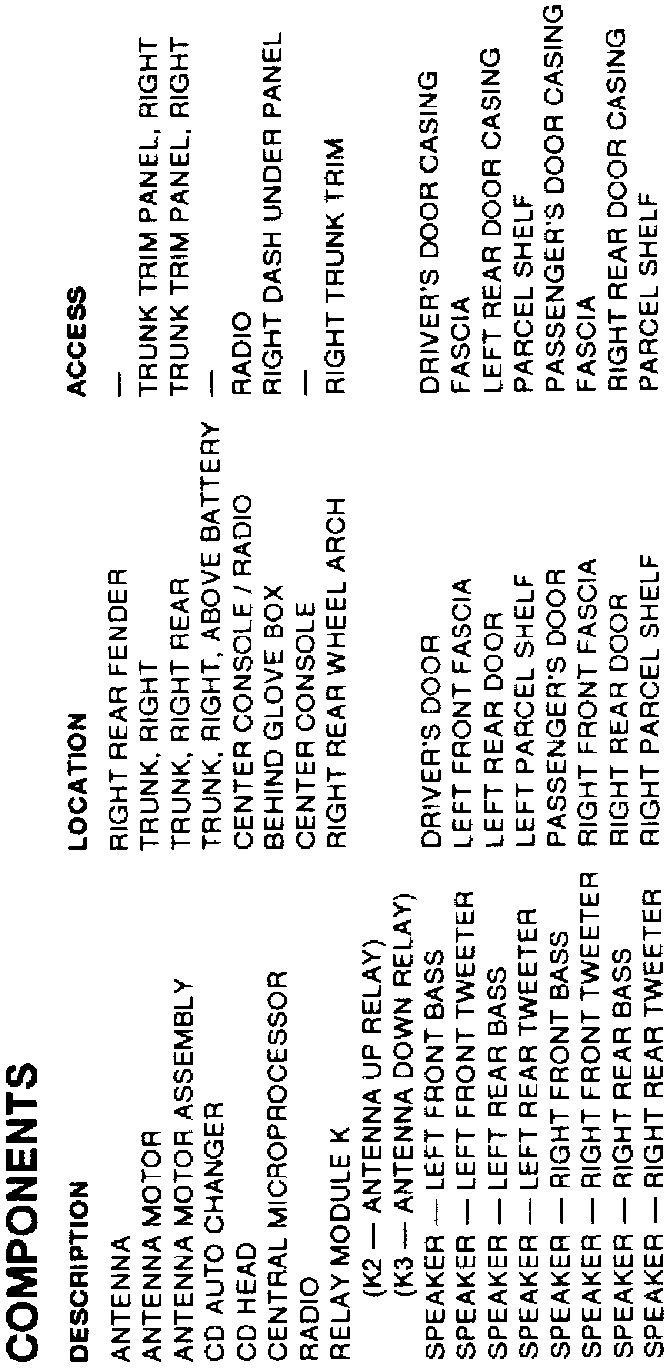

Components

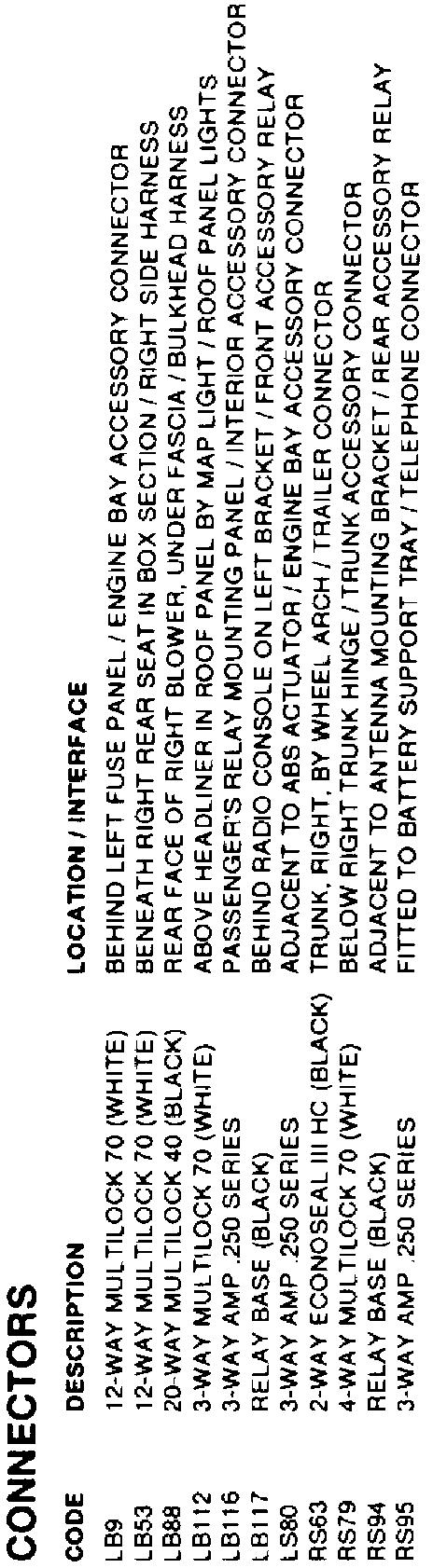

Connectors

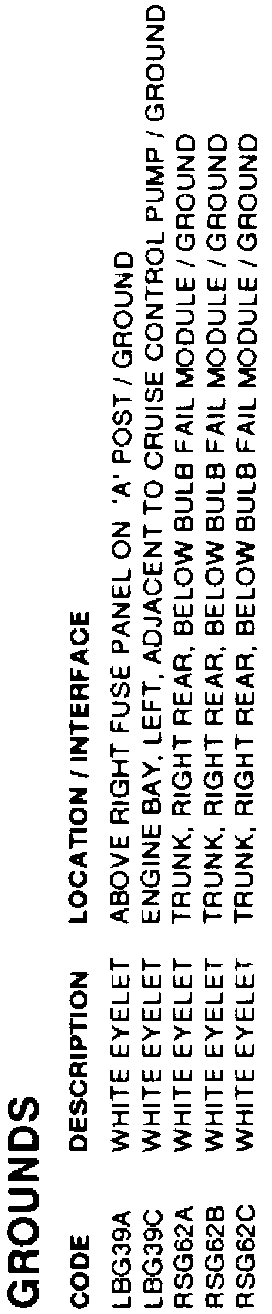

Grounds
