Home >> Jaguar >> 1994 >> XJ-12 (X300) V12-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram

System Diagram

QO�:





Wiring Diagram

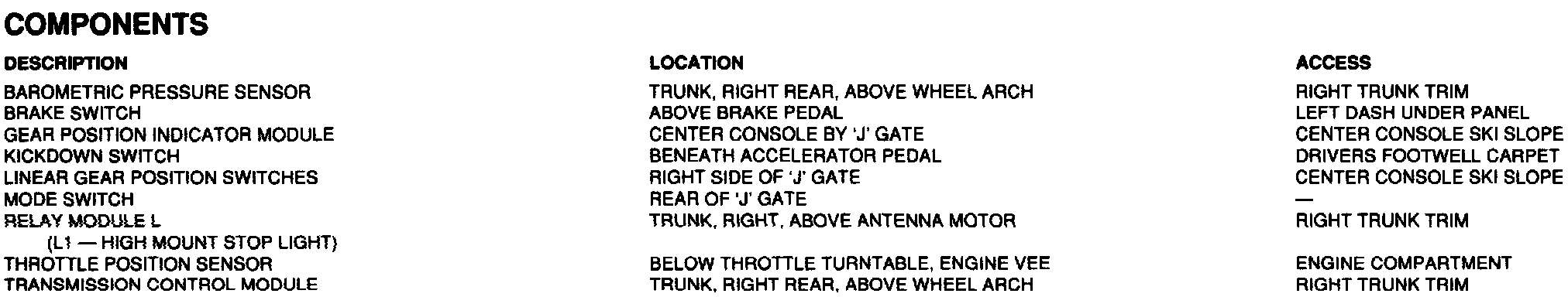

Components

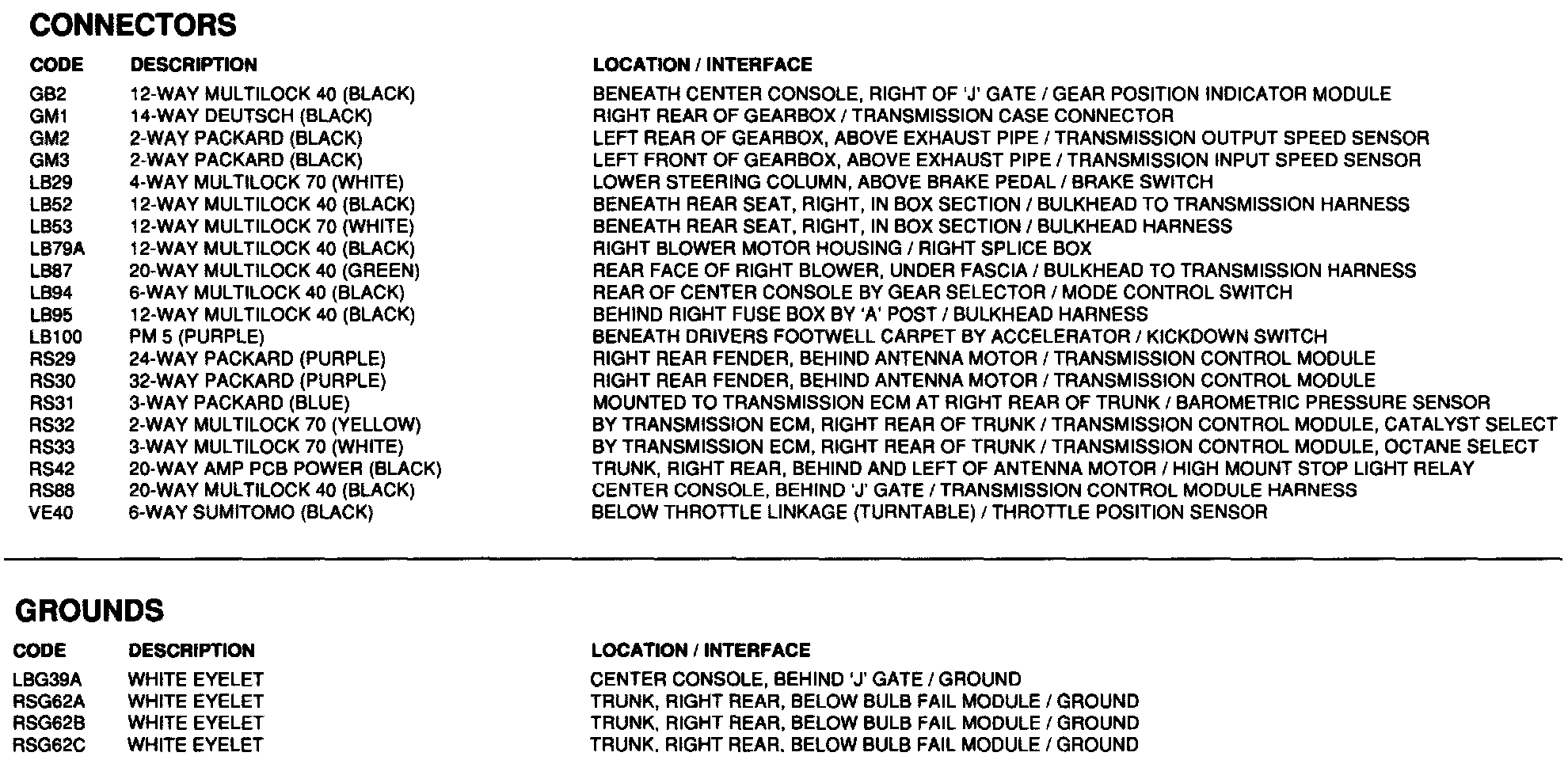

Connectors & Grounds





Inputs/Outputs
