Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
1994
>>
XJ-12 (X300) V12-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control
���#:

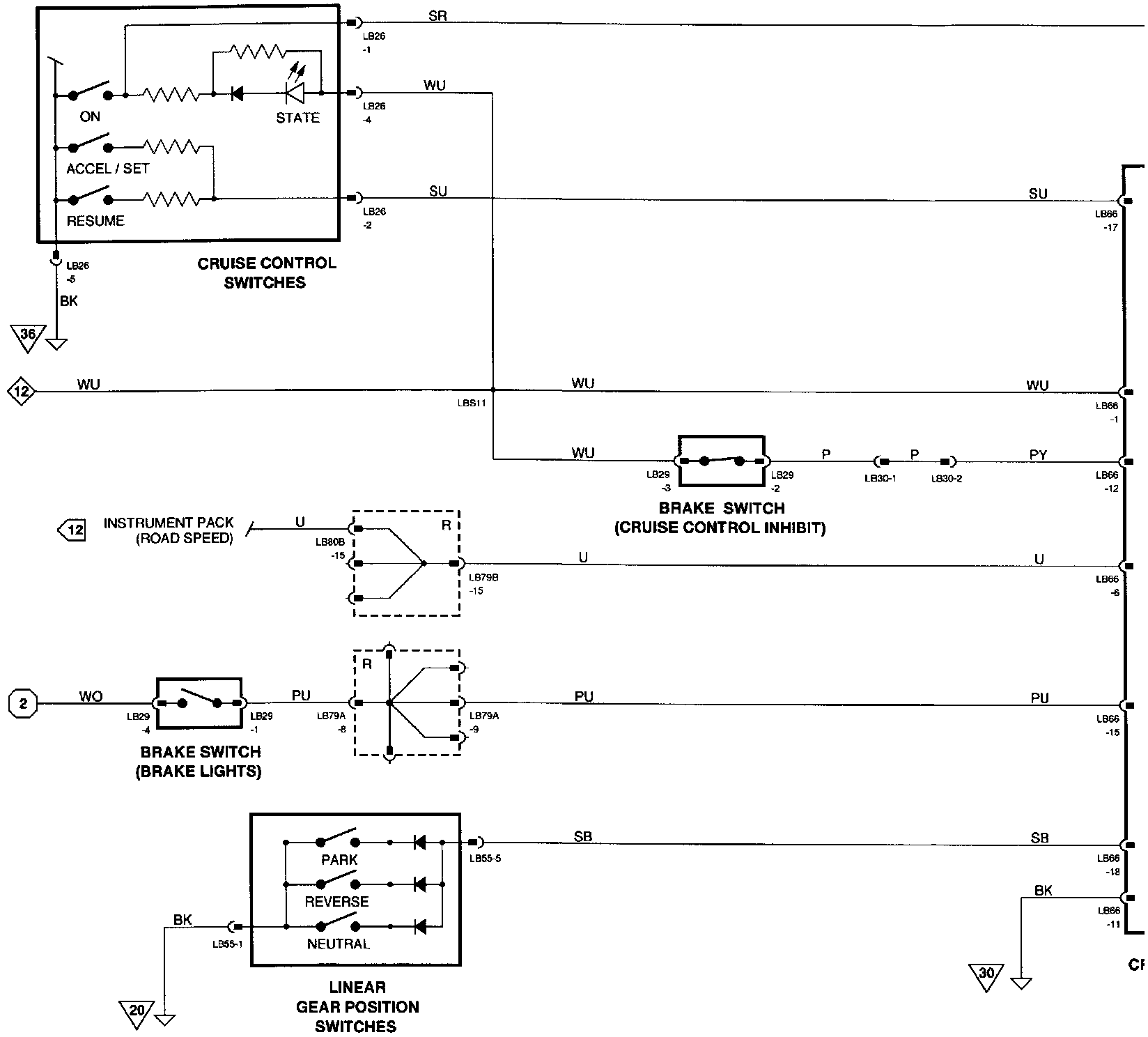

Wiring Diagram

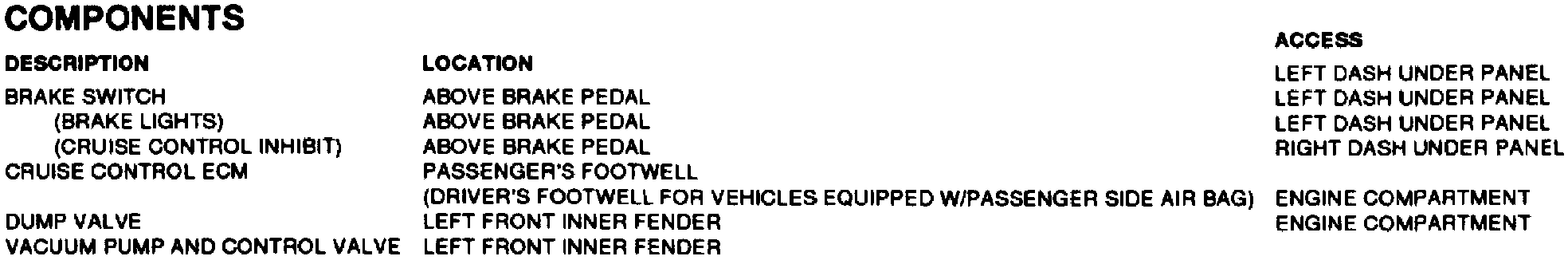

Components

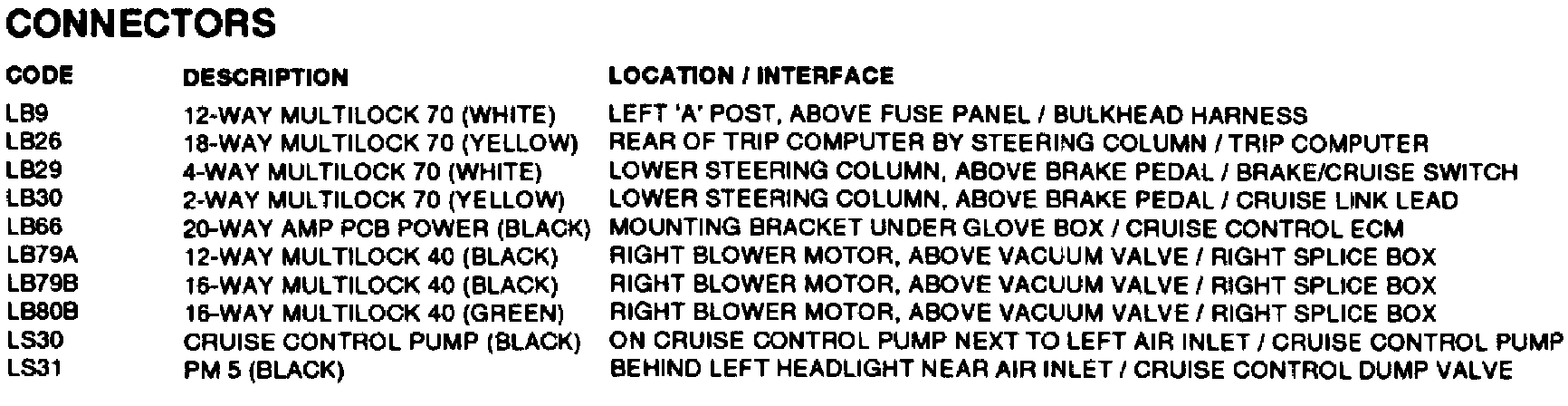

Connectors

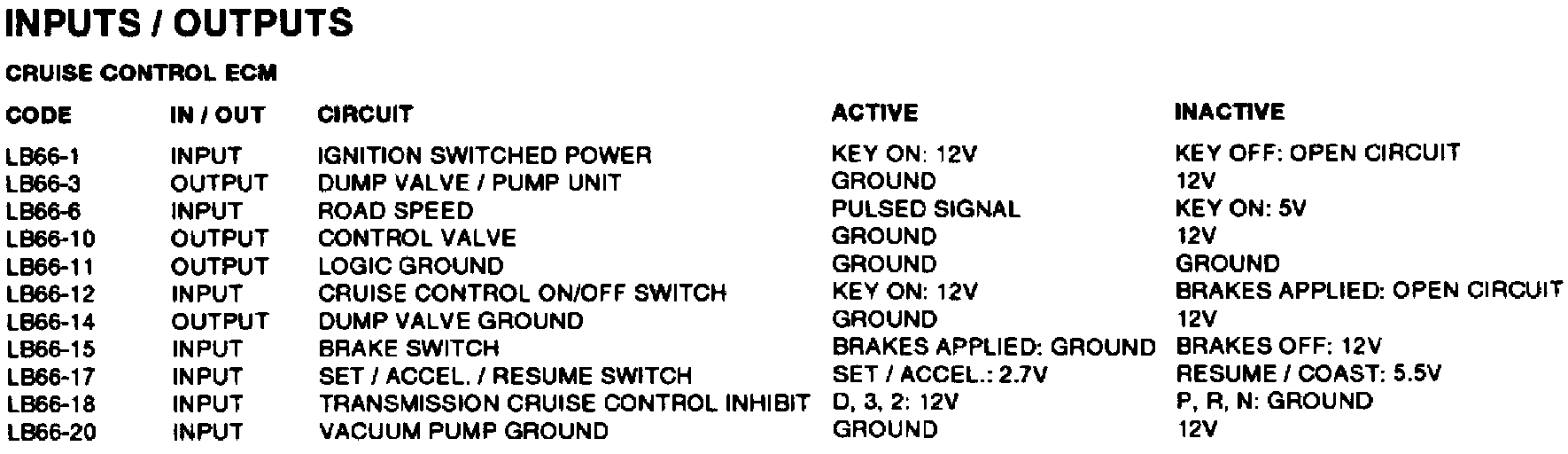

Inputs/Outputs
