Home >> Jaguar >> 1994 >> XJ-12 (X300) V12-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> System Diagram

System Diagram

��&:

Wiring Diagram

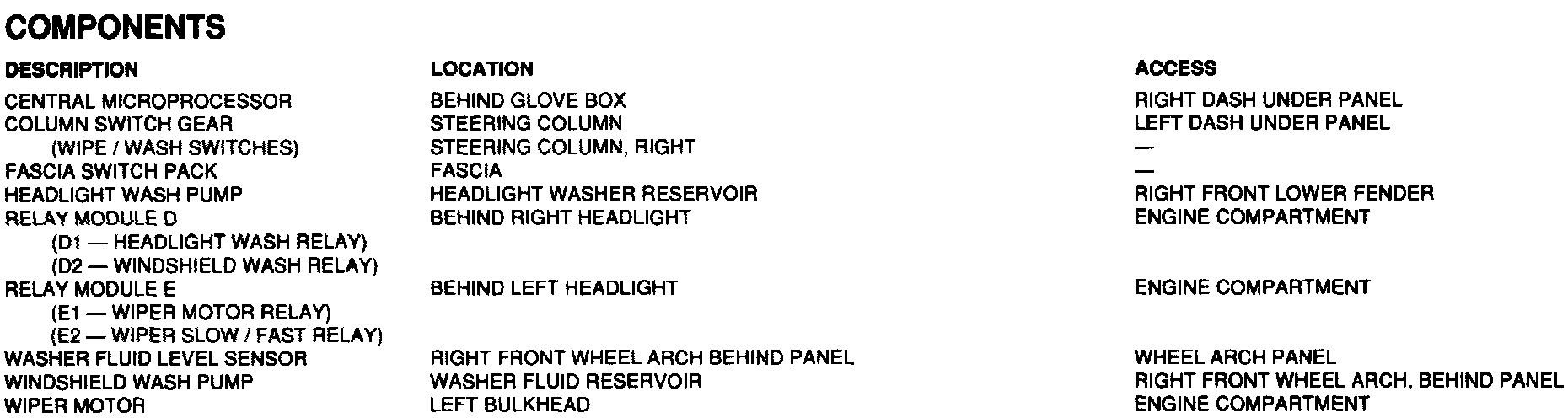

Components

Connectors & Grounds

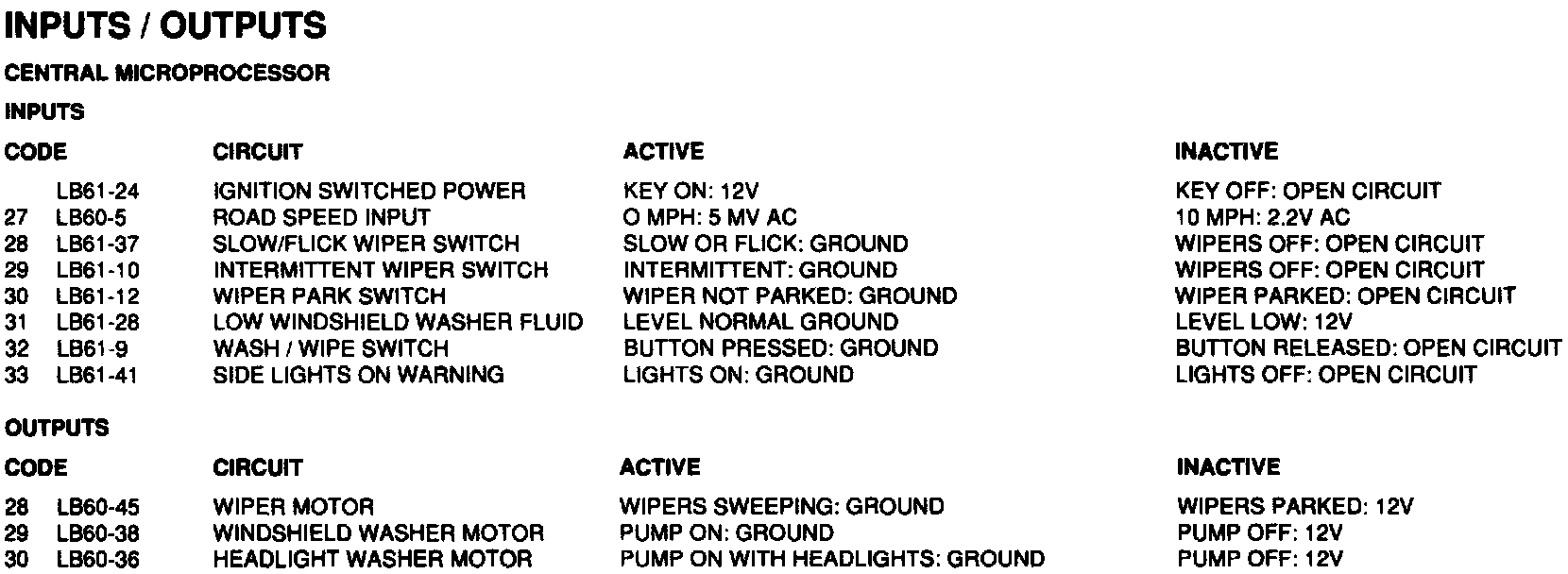

Inputs/Outputs
