Instrument Lighting; Locate Lighting; Clock

&�$:

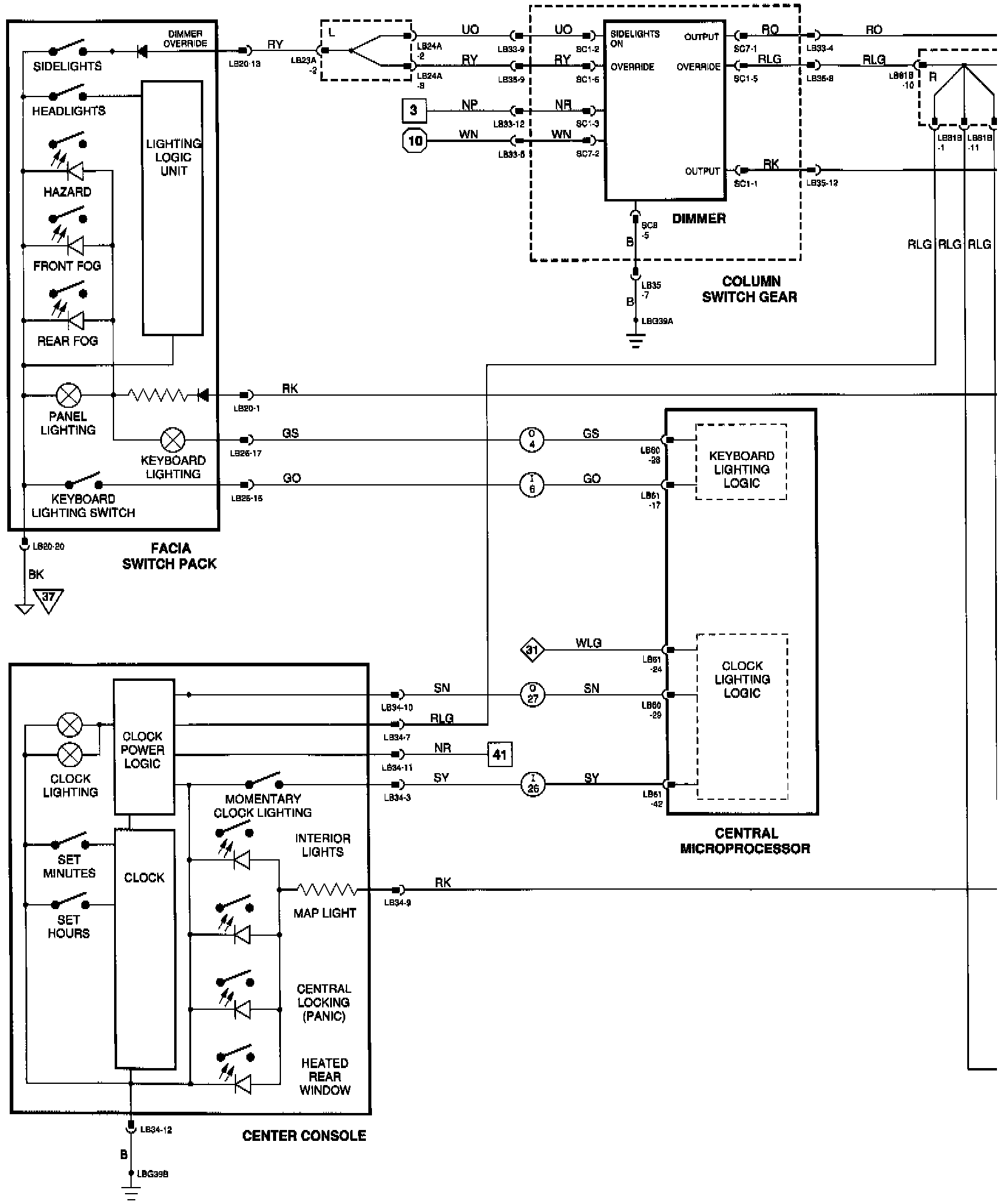

Wiring Diagram





Components

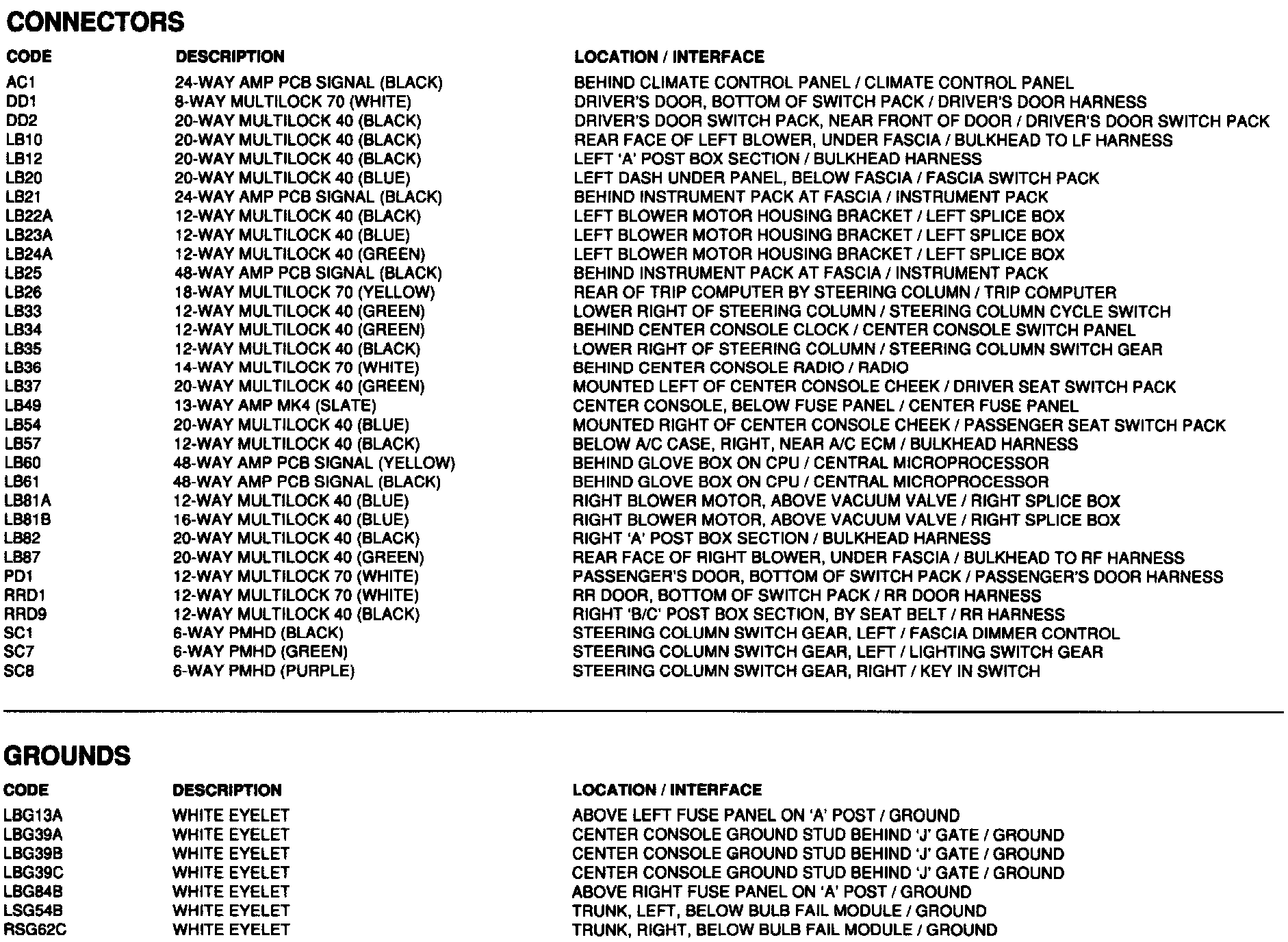

Connectors & Grounds

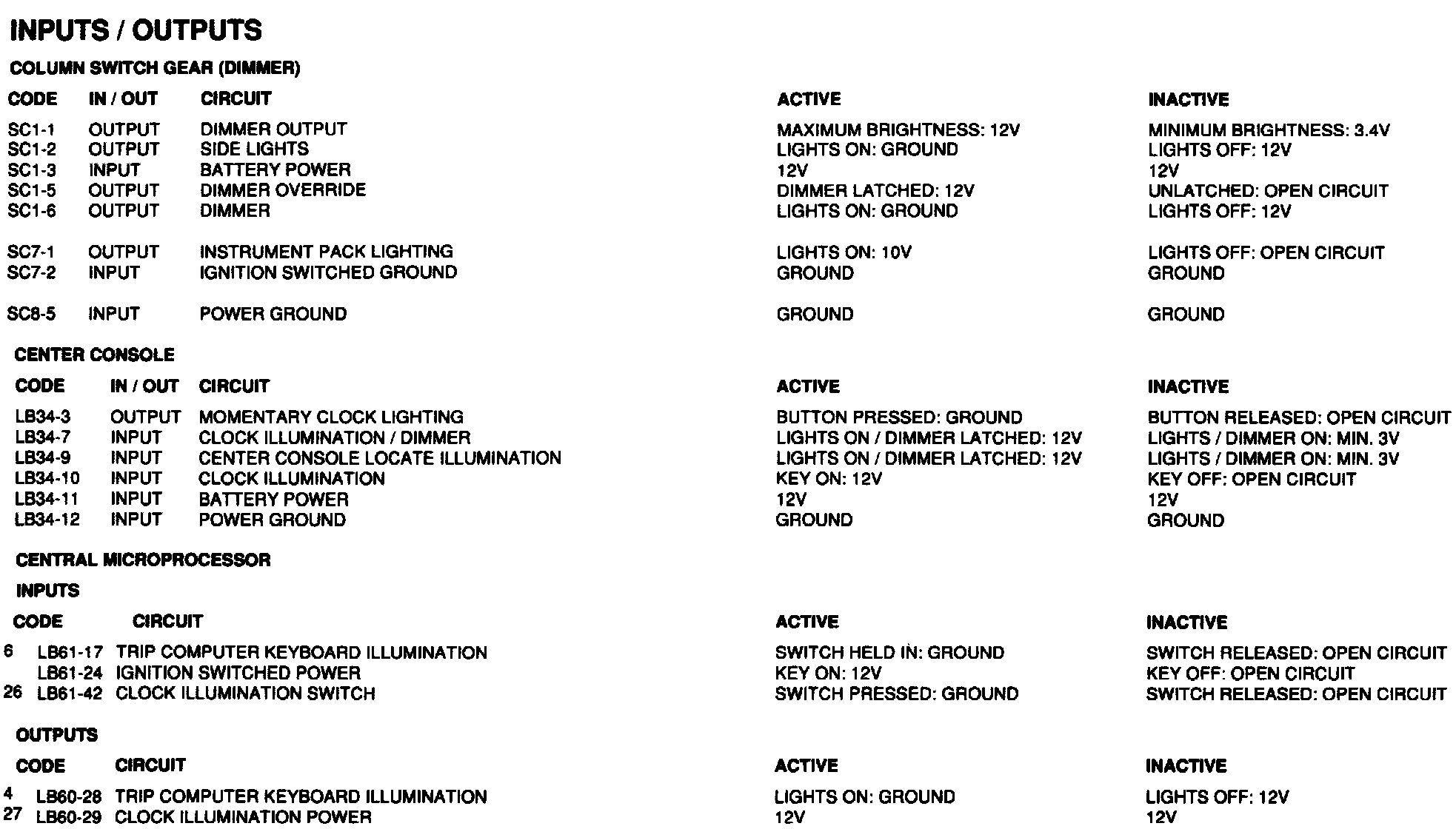

Inputs/Outputs


For the diagrams that continue from this diagram, refer to "Diagrams : Electrical : Diagrams By Fig Number"

Electrical Diagrams
