Home >> Jaguar >> 1994 >> XJ-12 (X300) V12-6.0L >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Diagrams >> Electrical Diagrams

Electrical Diagrams

�\�:





Wiring Diagram

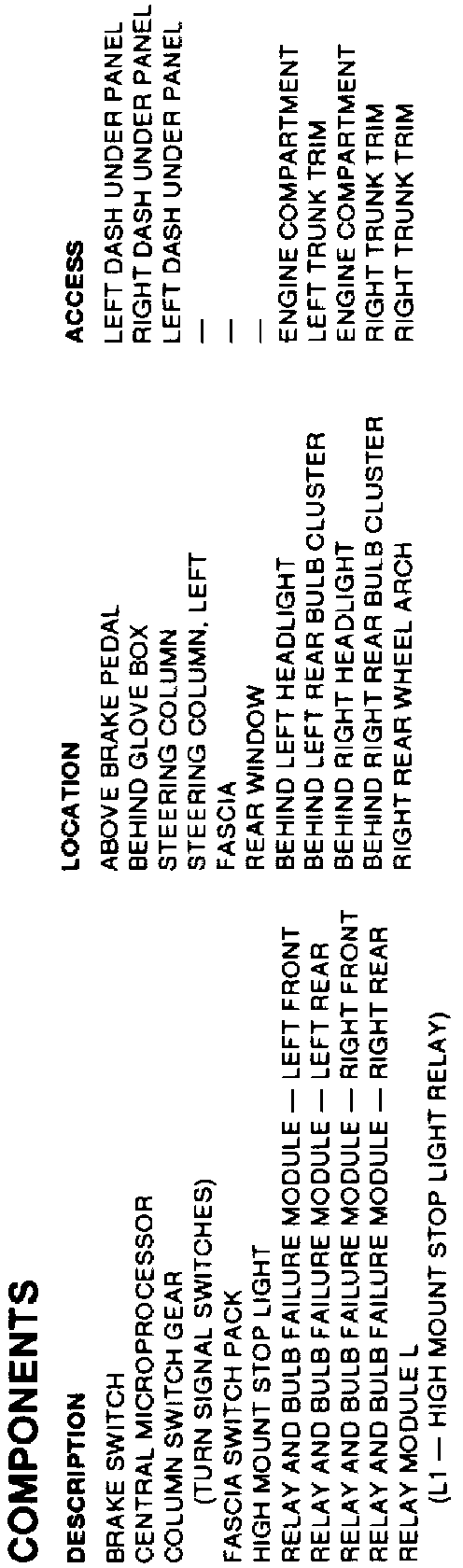

Components





Connectors & Grounds





Grounds

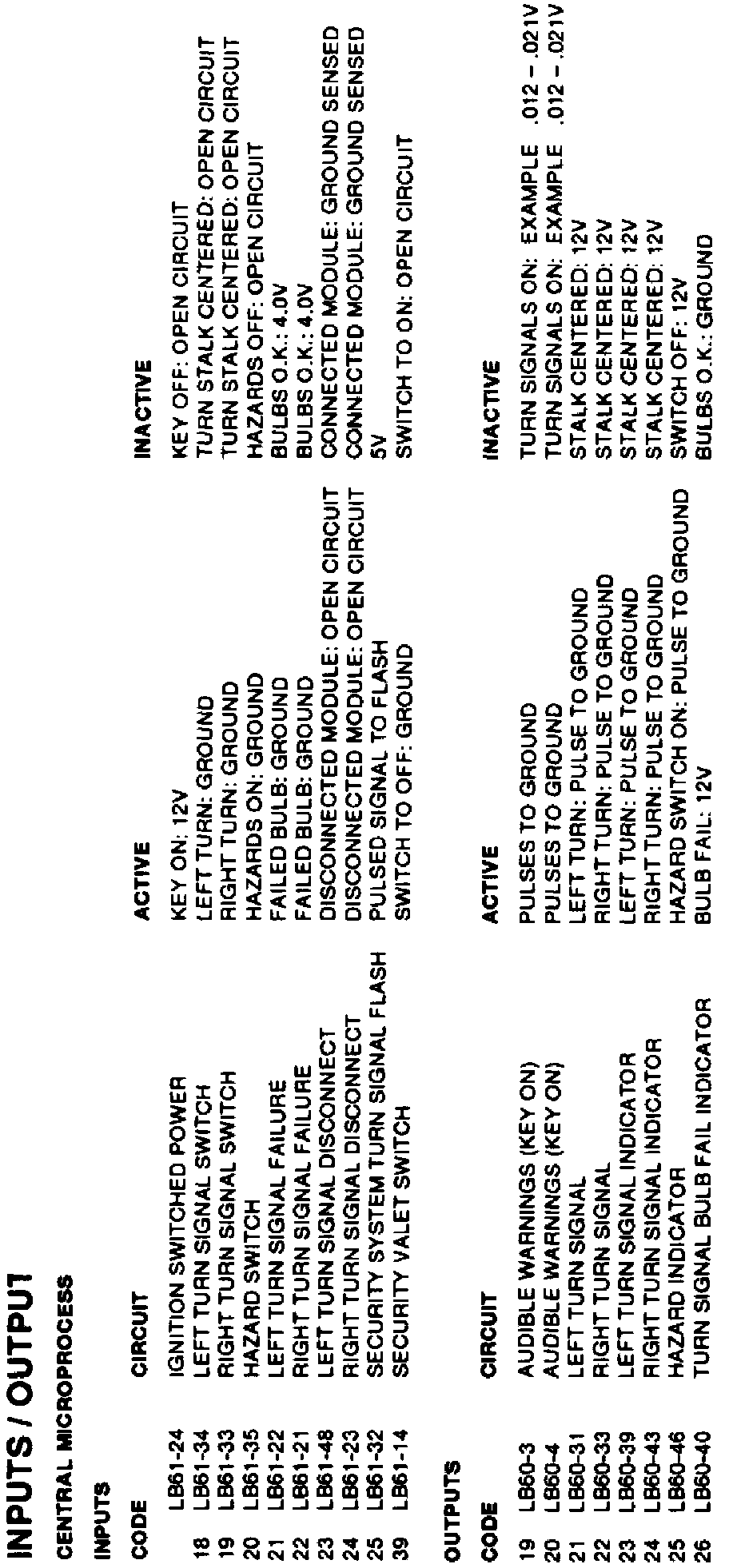

Inputs/Outputs
