Home >> Jaguar >> 1994 >> XJ-12 (X300) V12-6.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ignition Switched Ground Distribution

Ignition Switched Ground Distribution

�t�:

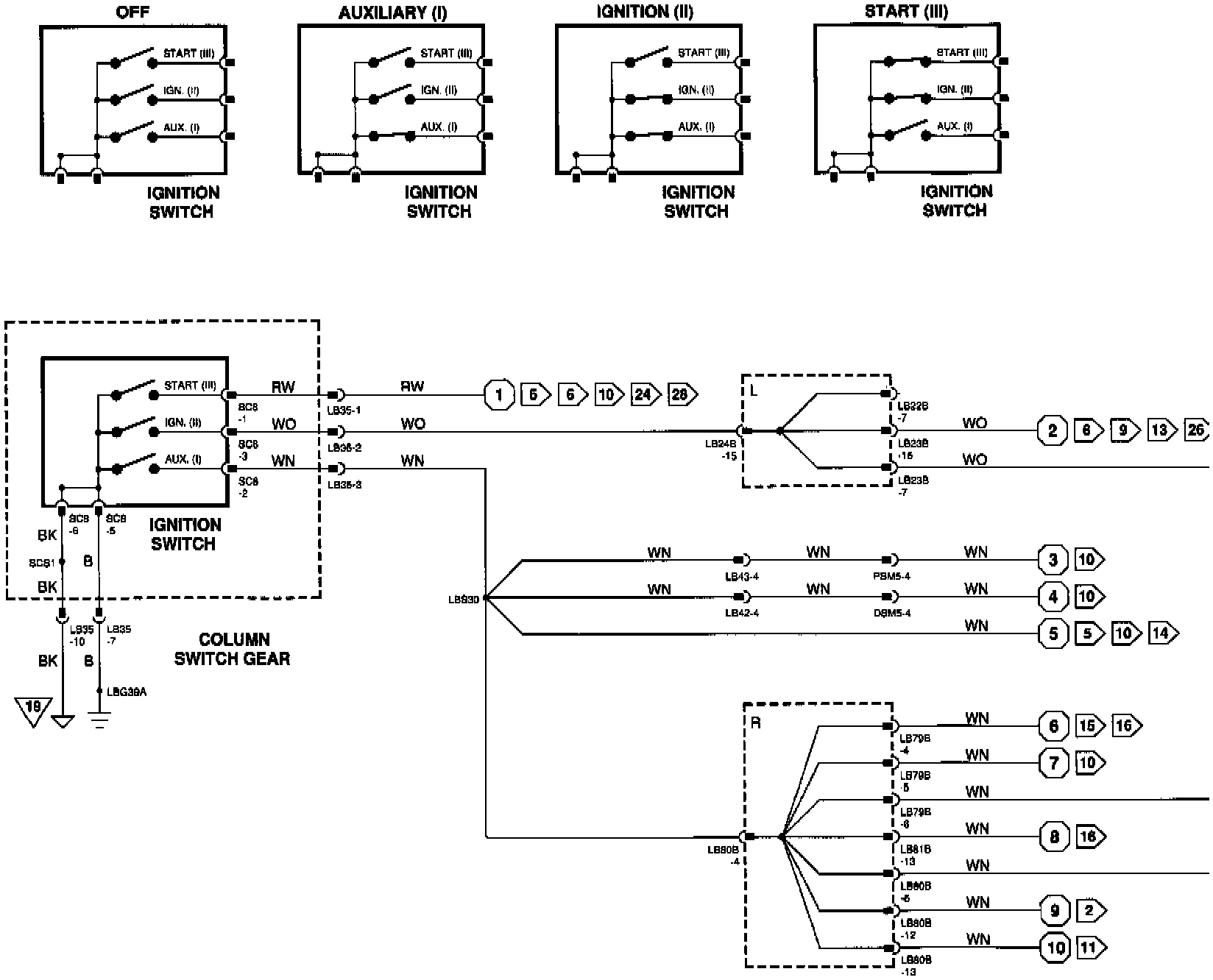

Wiring Diagram





Components

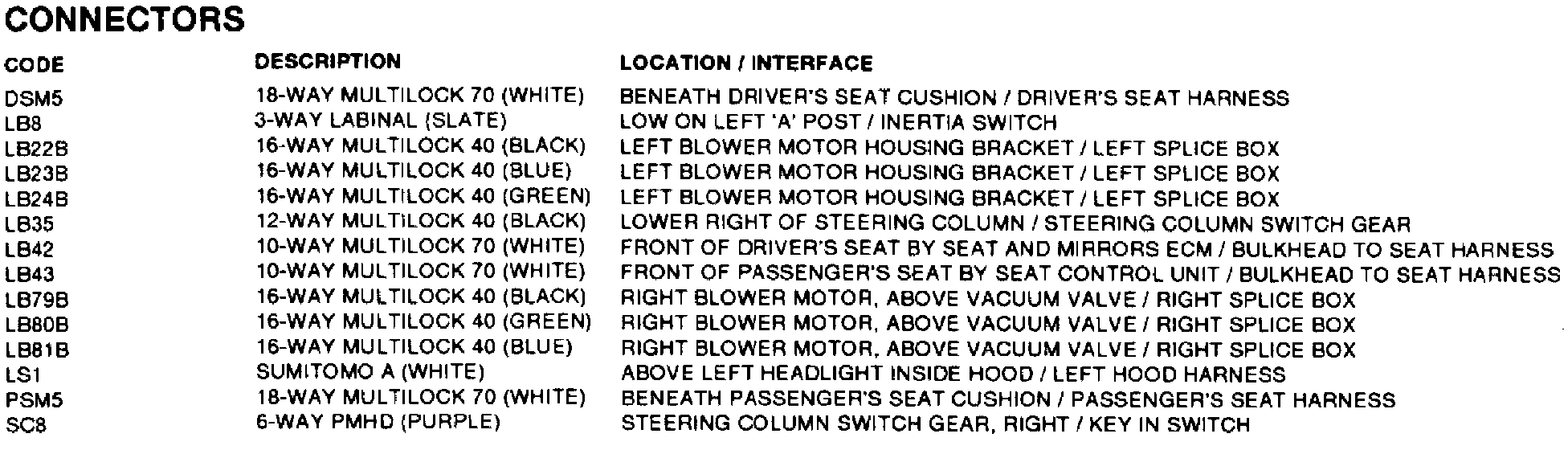

Connectors





Grounds
