Digital Ignition
Digital Ignition
���:

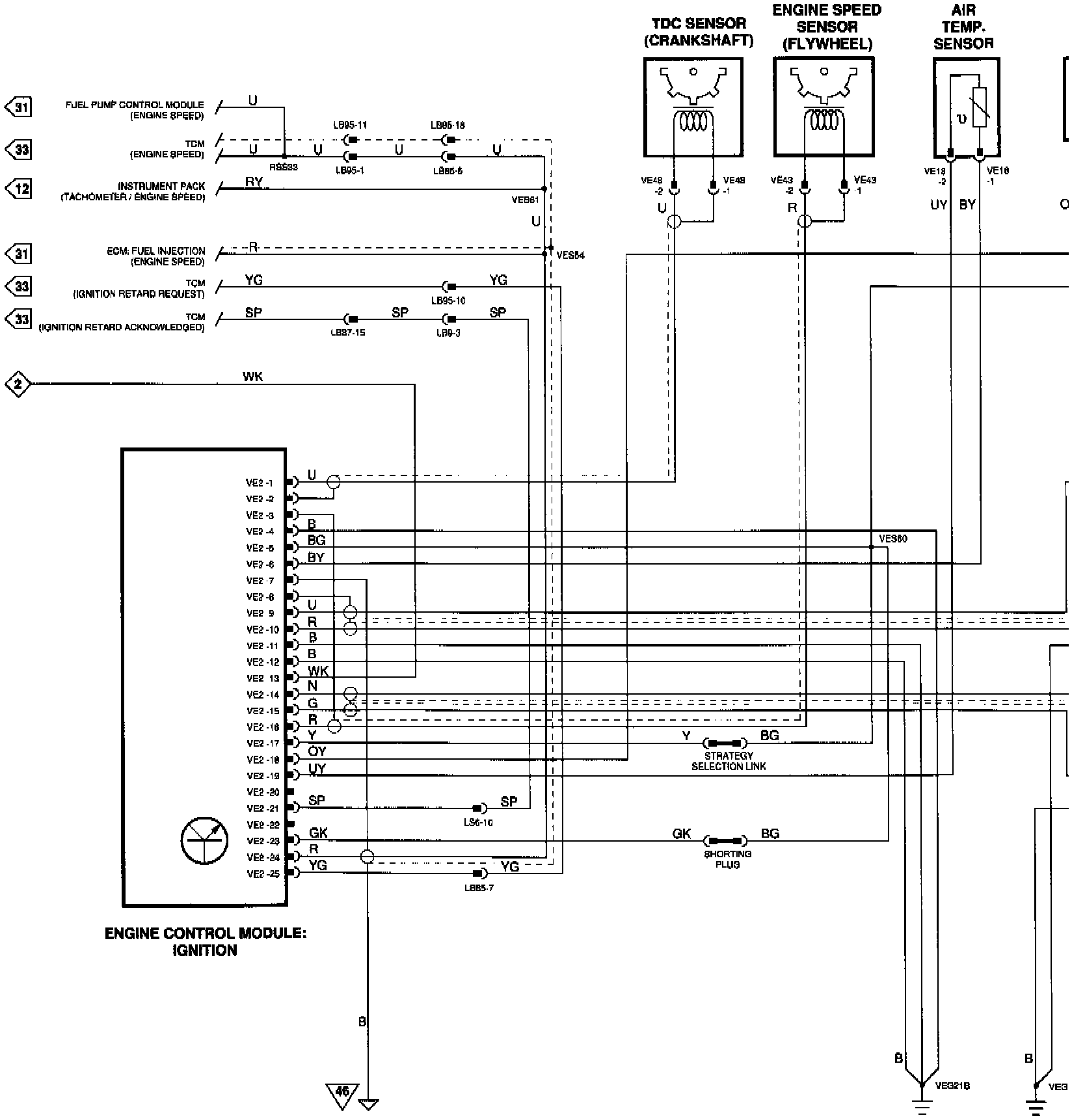

Wiring Diagram
Components

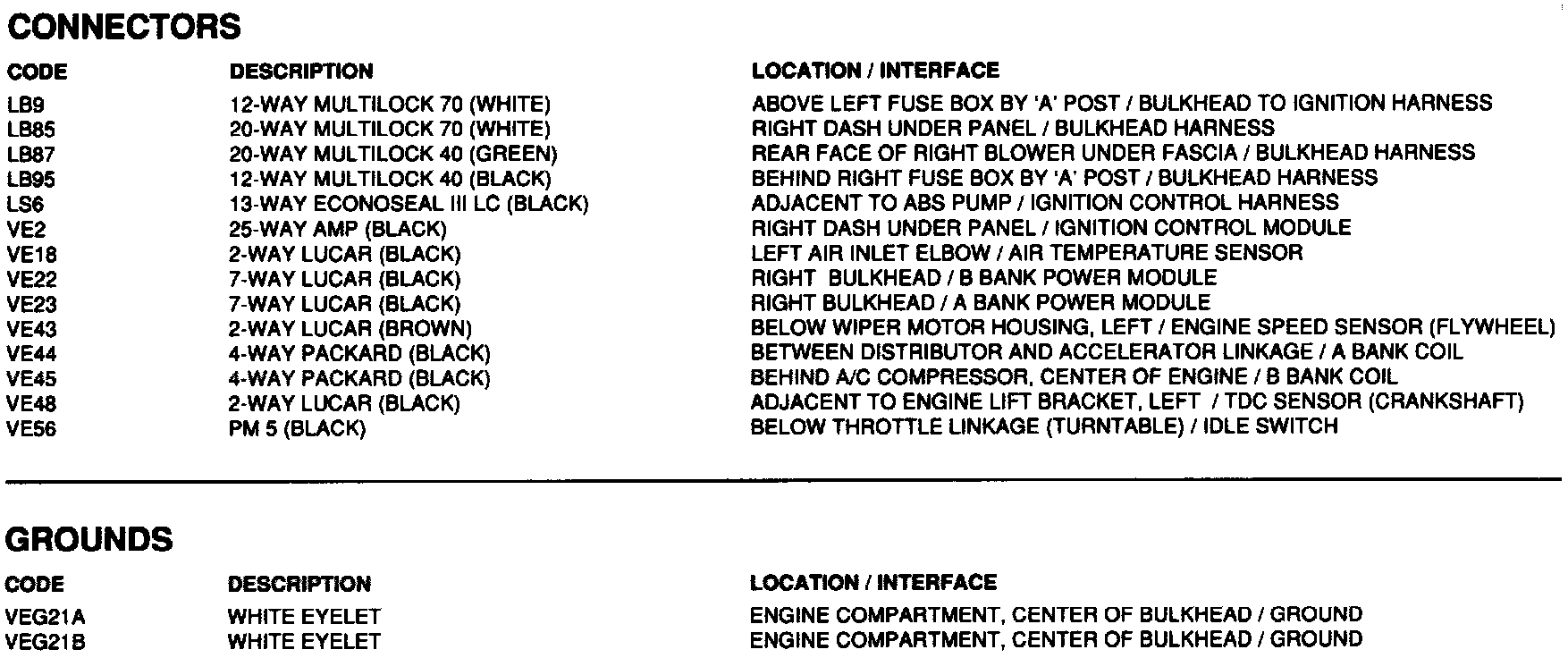

Connectors & Grounds

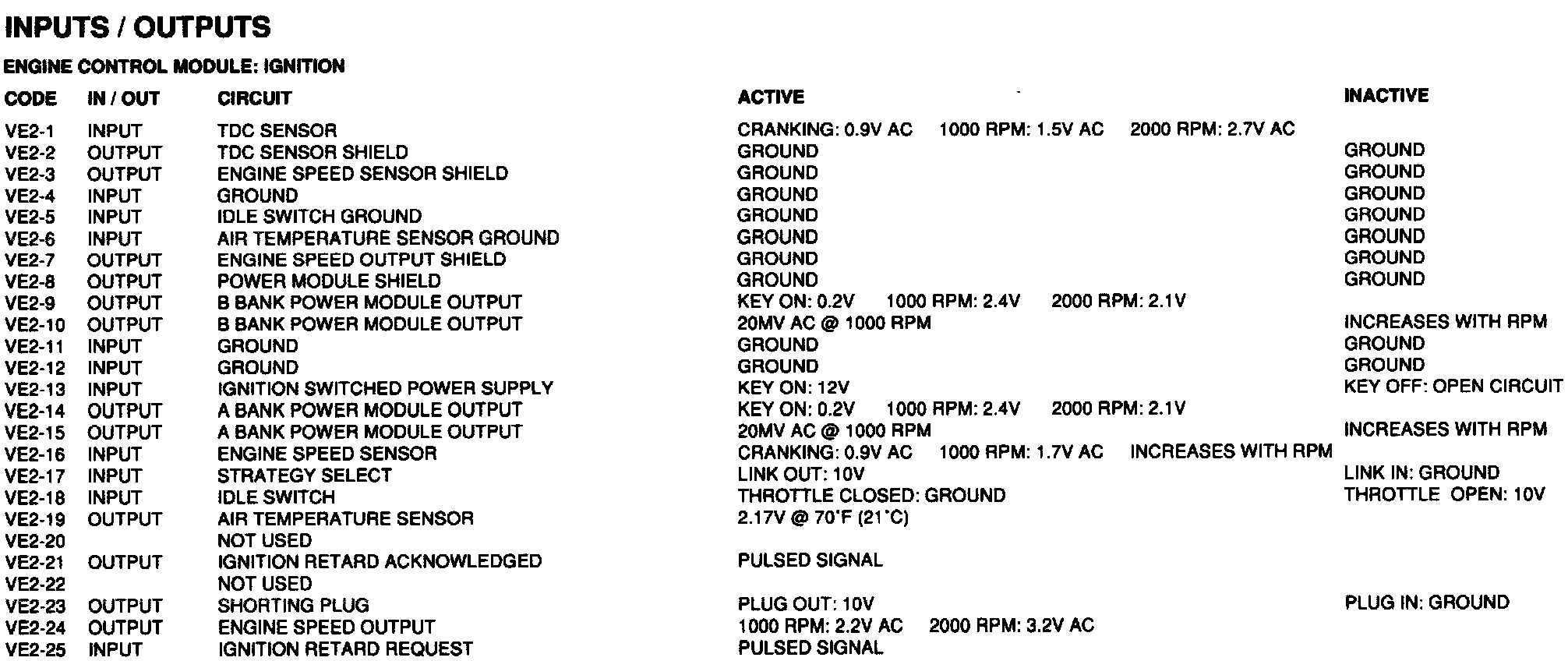

Inputs/Outputs
