Home >> Jaguar >> 1994 >> XJ-12 (X300) V12-6.0L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Fuel Injection

Fuel Injection

A'�:





Wiring Diagram





Components

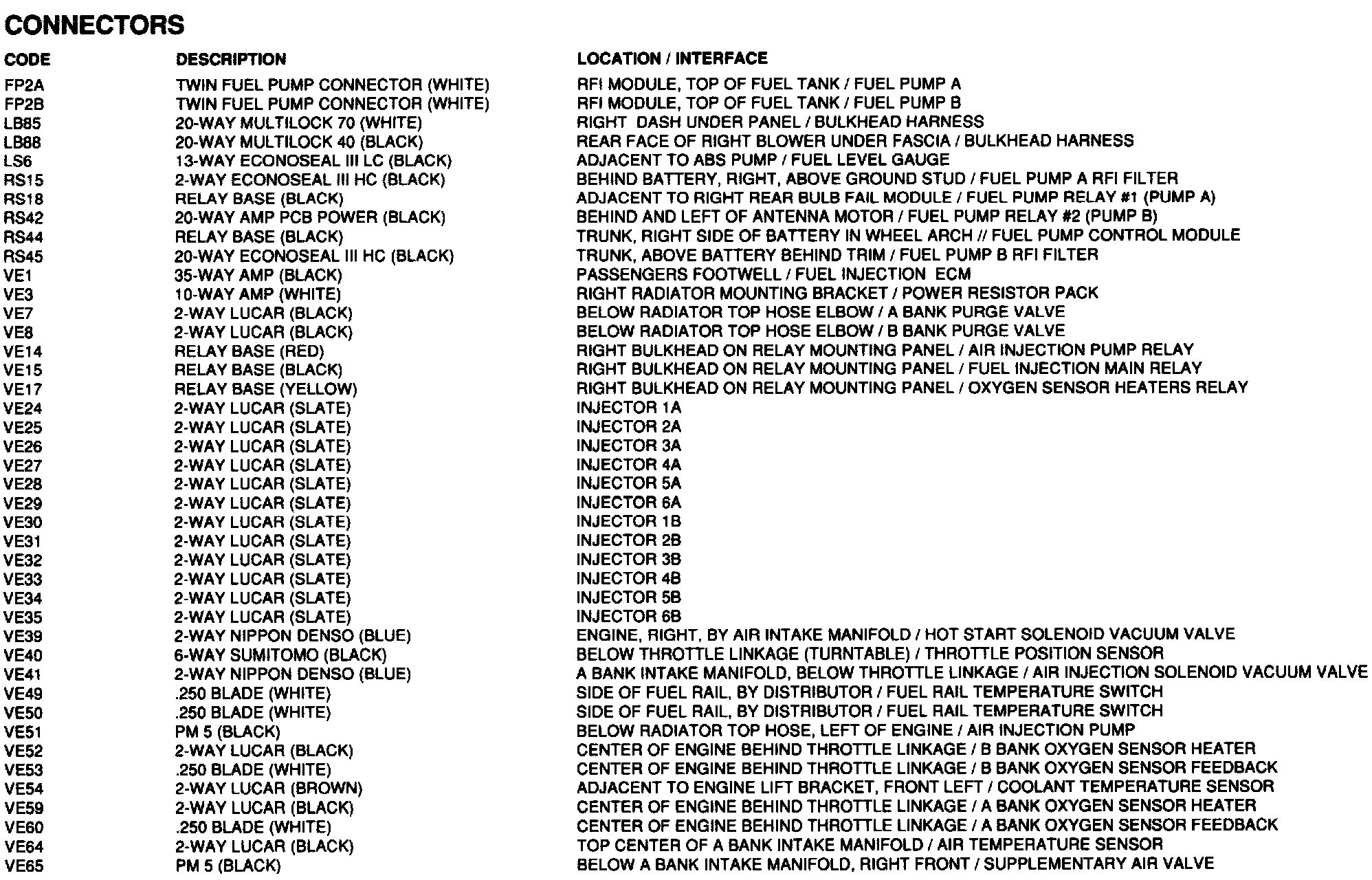

Connectors

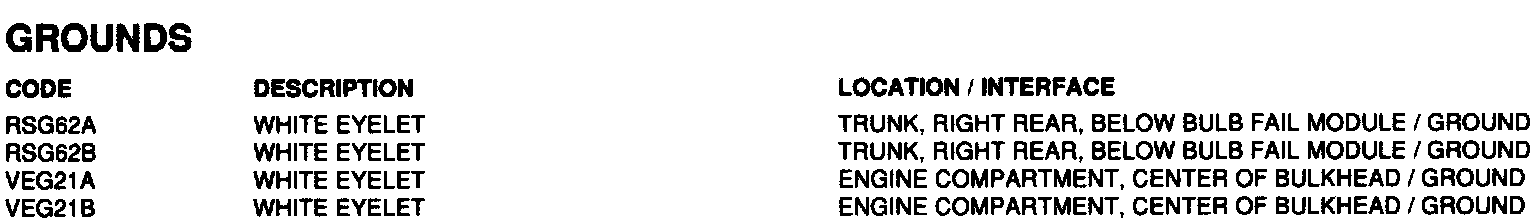

Grounds

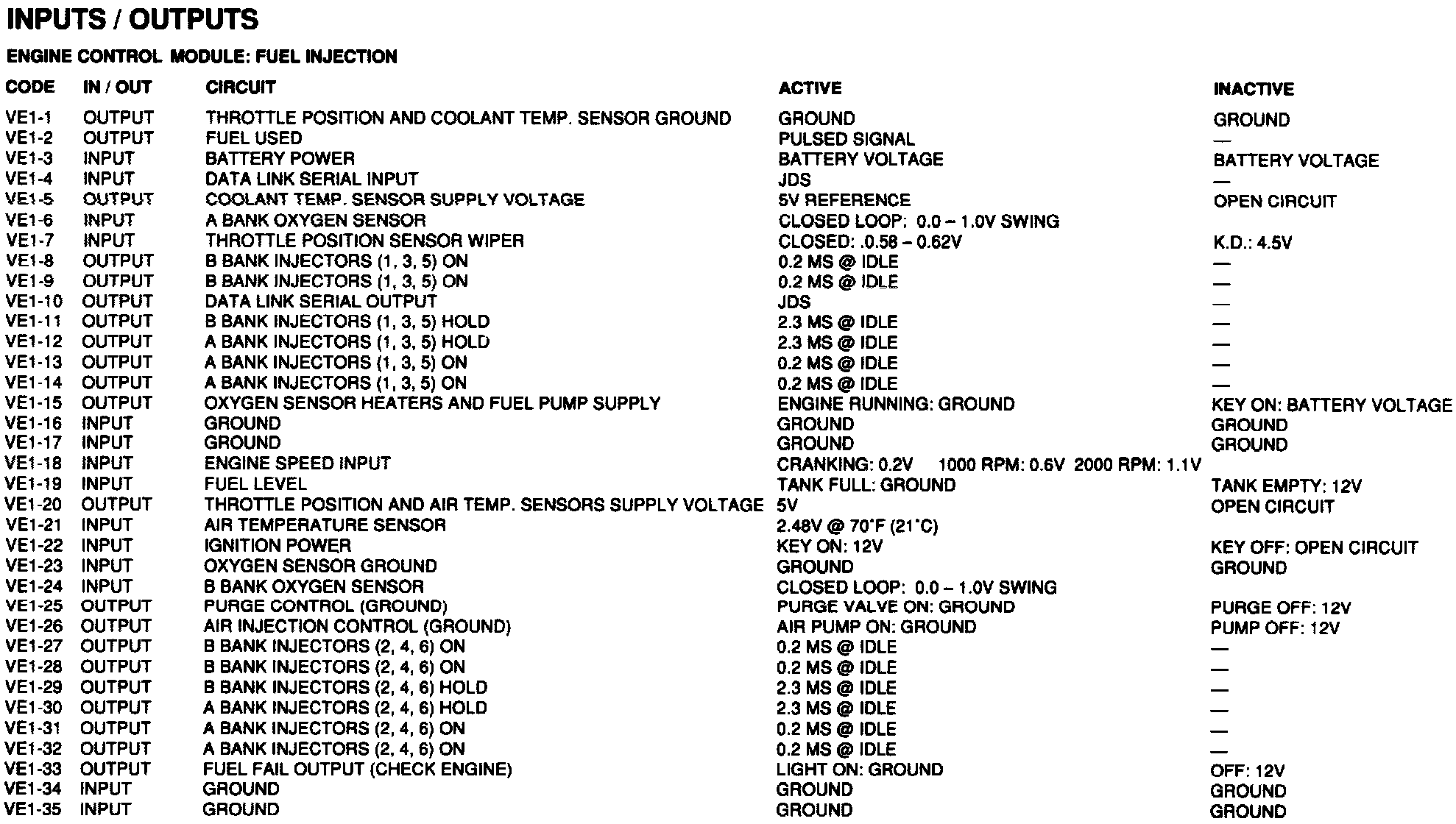

Inputs/Outputs
