Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram
o��:

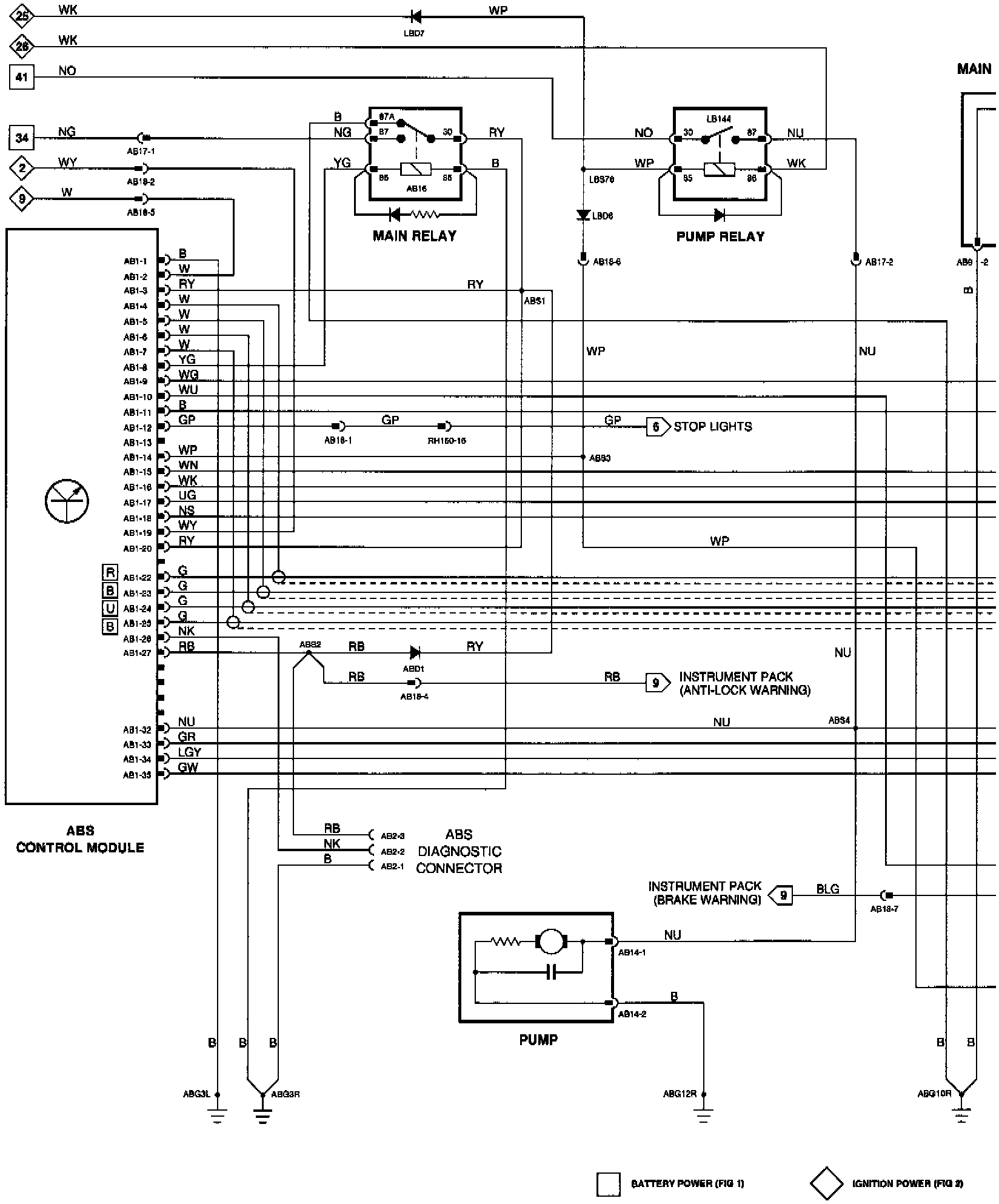

Wiring diagram

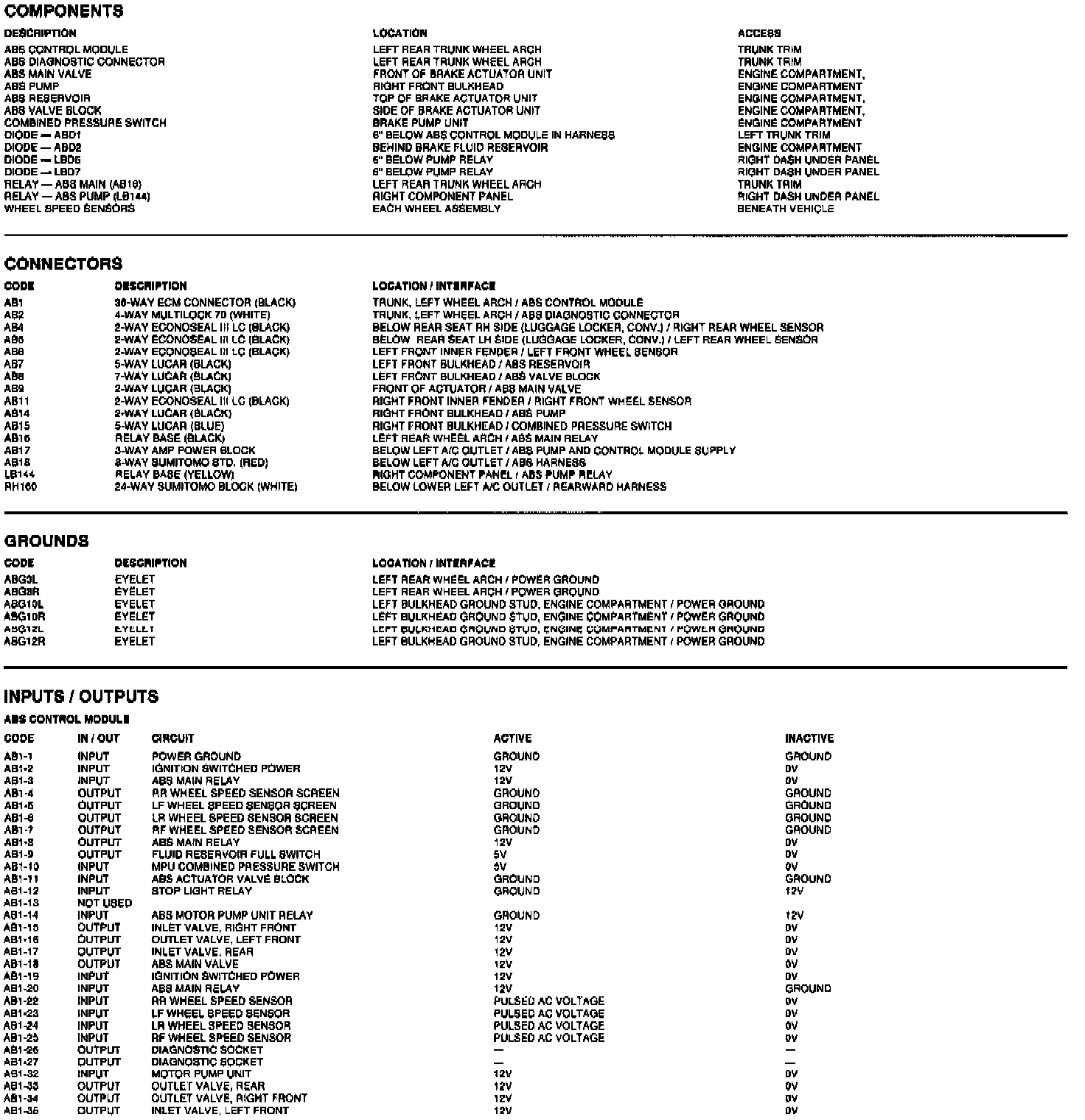

Components, connectors, grounds, inputs/outputs
