Home >> Jaguar >> 1994 >> XJ-S Coupe (XJ27) V12-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Fig Number >> Fig. 22 Up to VIN 190528

Fig. 22 Up to VIN 190528

�"<:

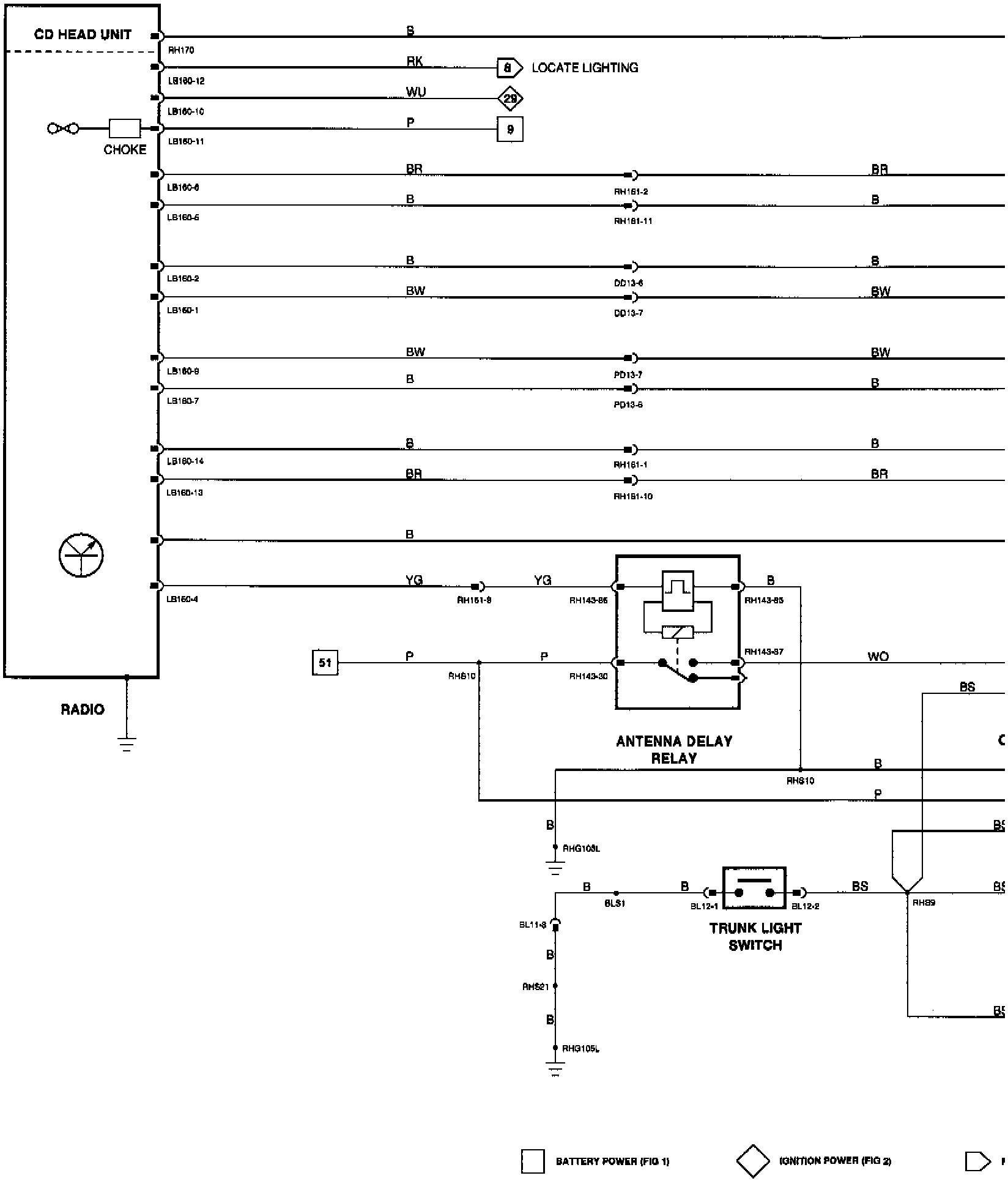

Wiring diagram

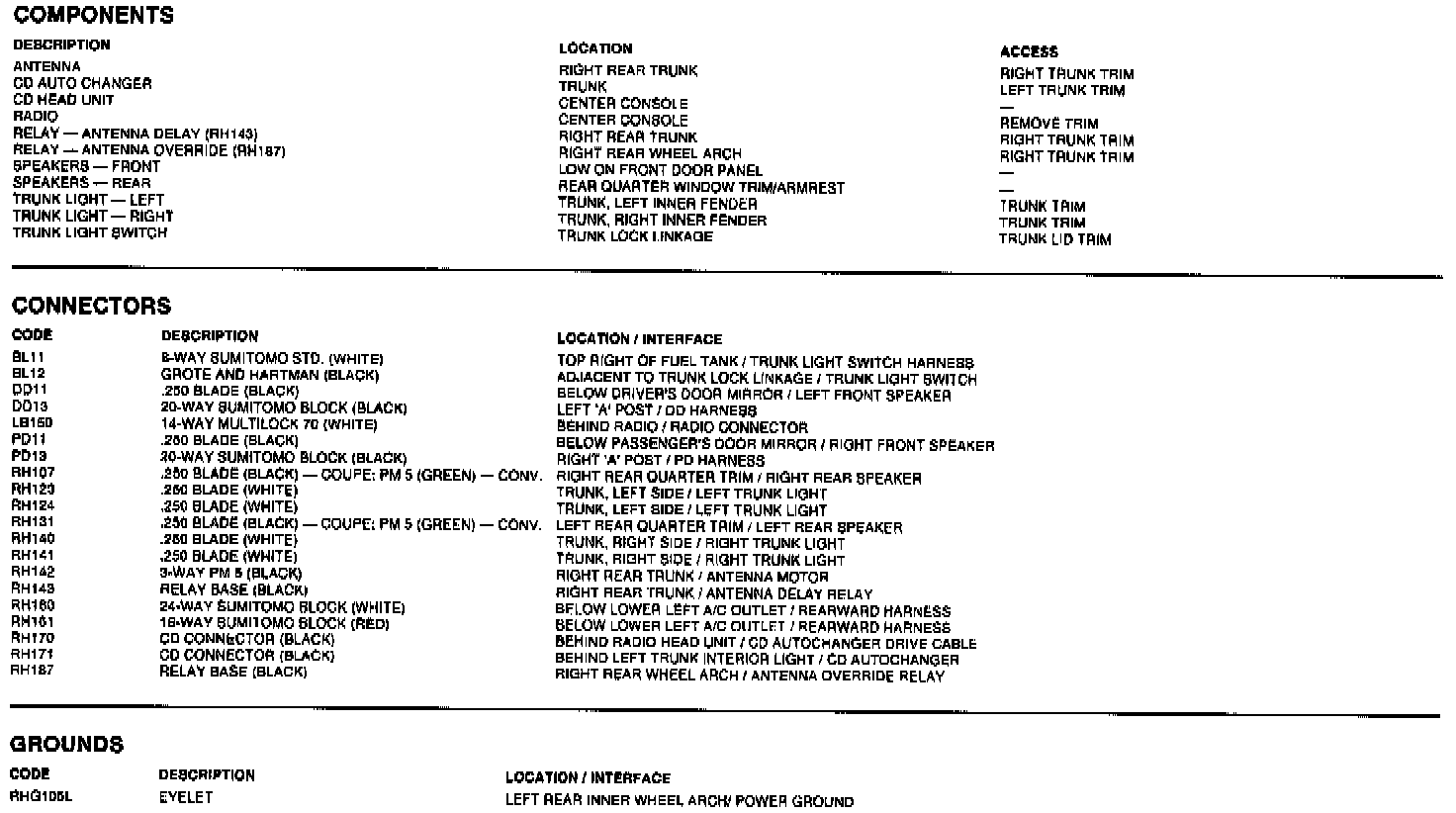

Components, connectors, grounds, inputs/outputs
