Home >> Jaguar >> 1994 >> XJ-S Coupe (XJ27) V12-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Fig Number >> Fig. 23A From VIN 190529

Fig. 23A From VIN 190529

L��:

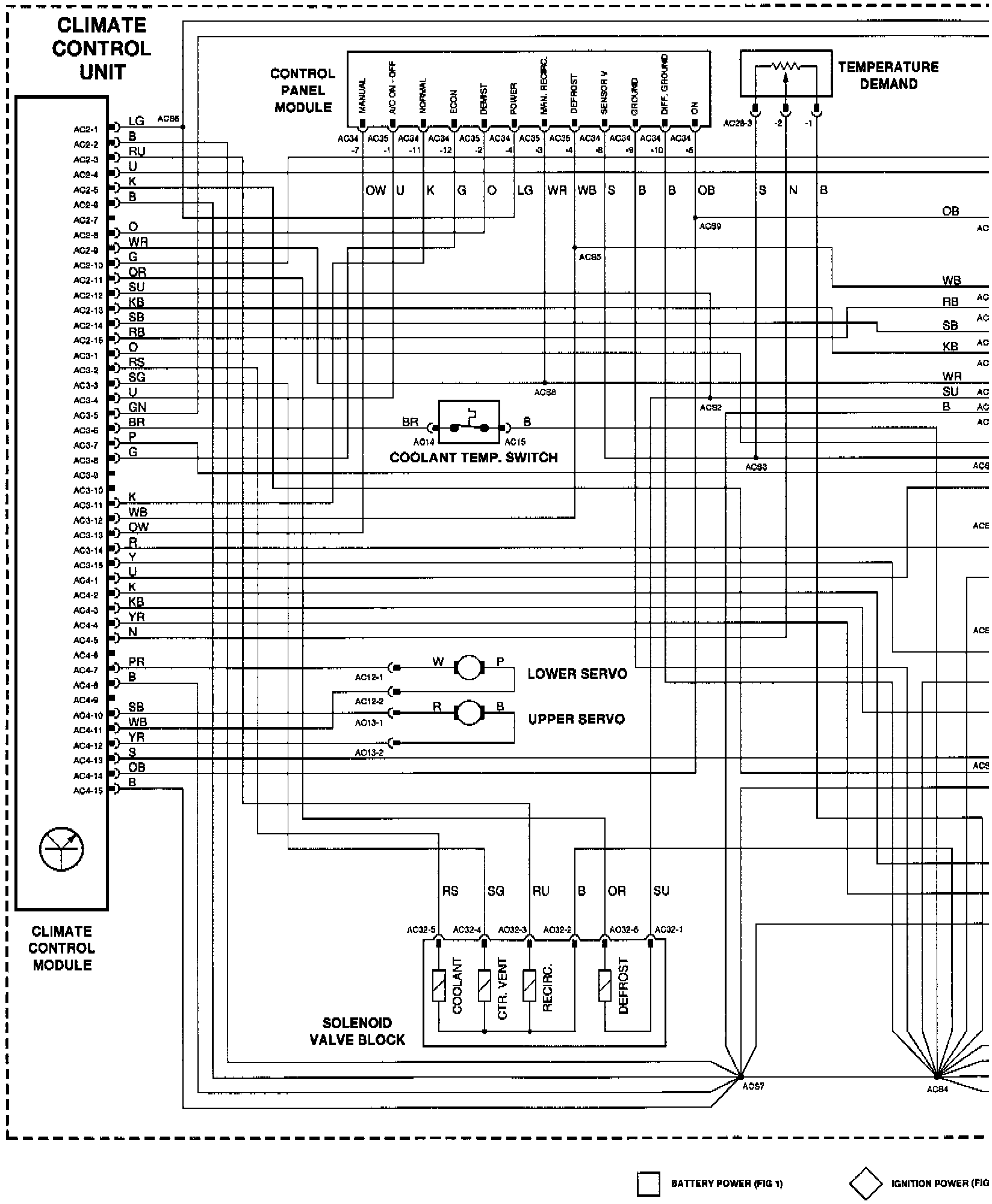

Wiring diagram

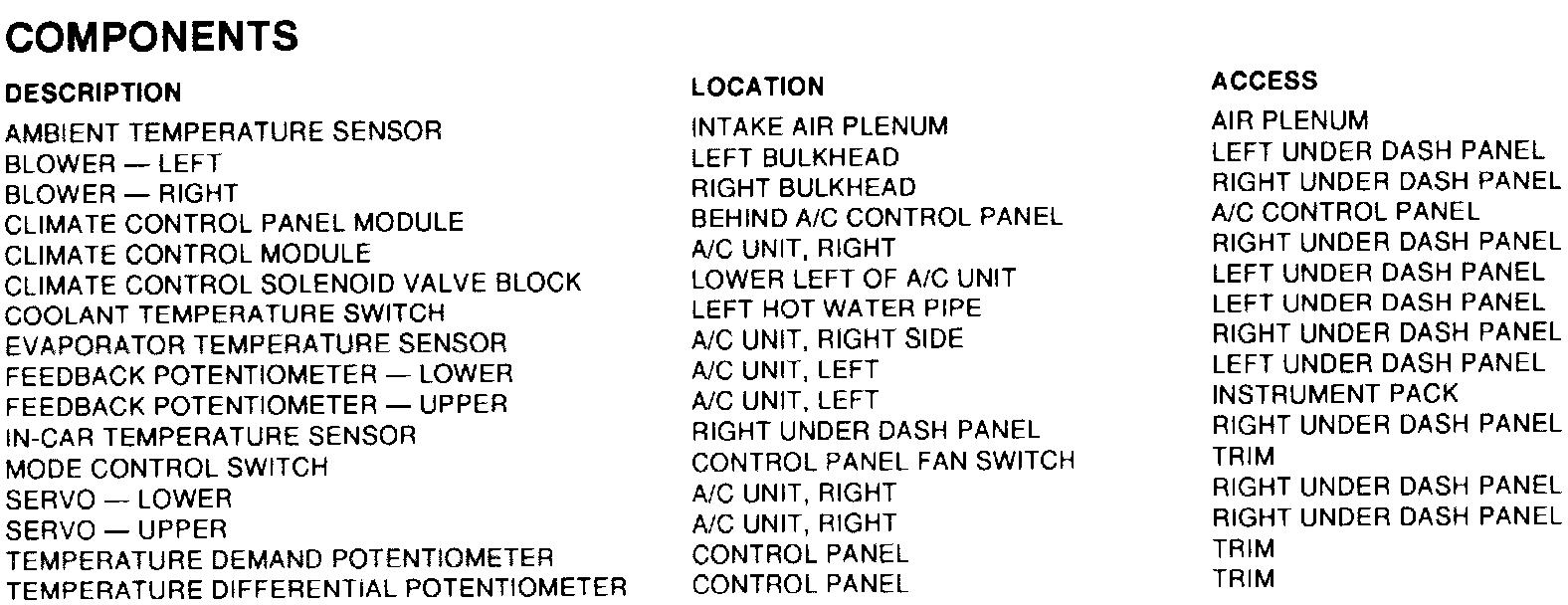

Components

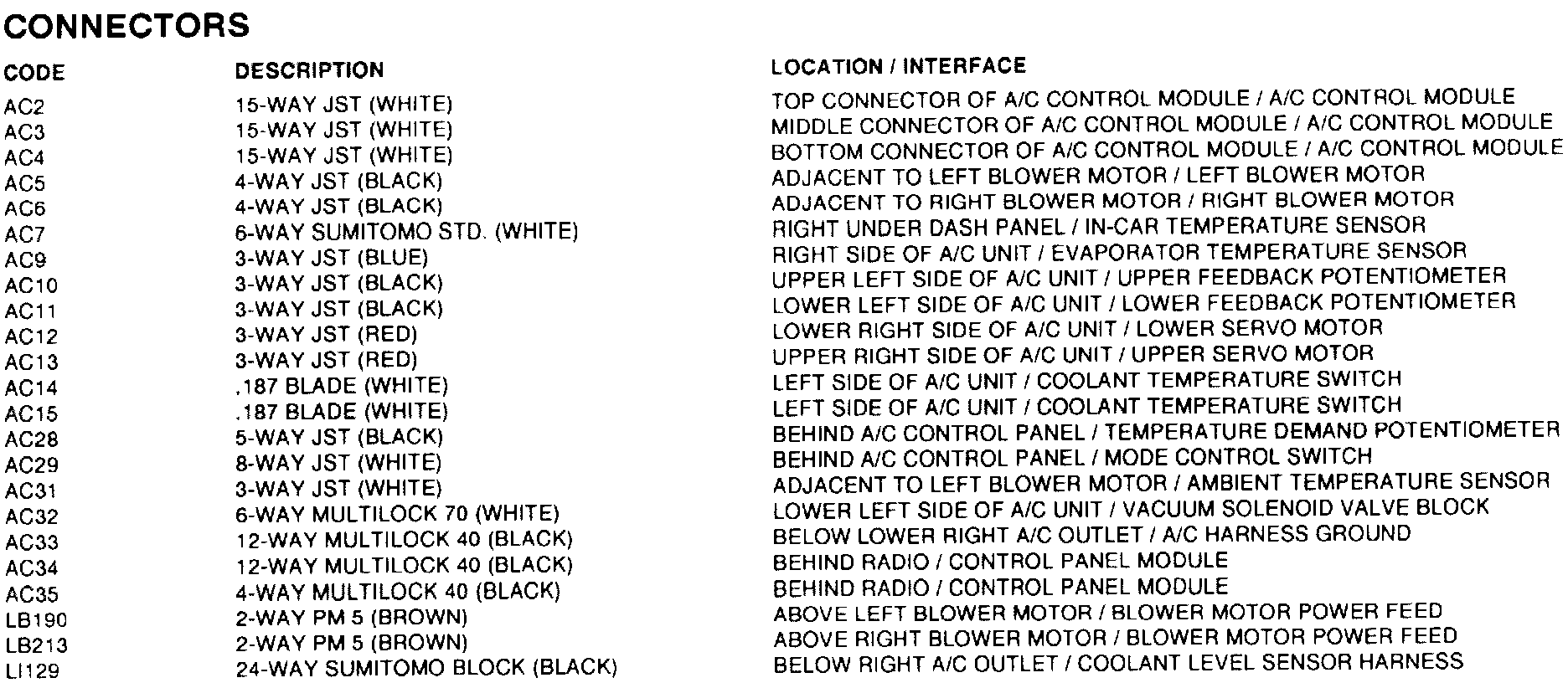

Connectors






Grounds

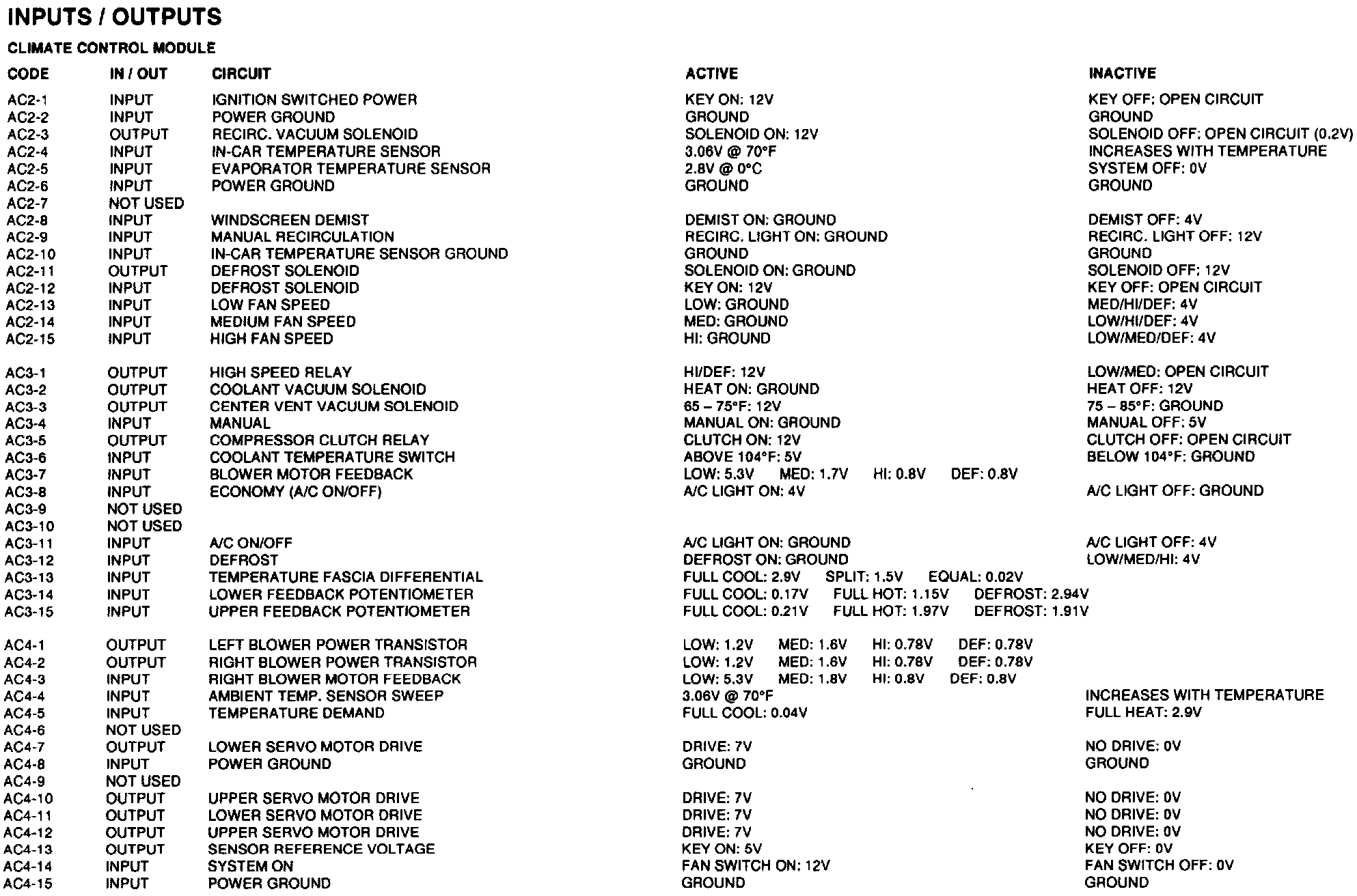

Inputs/outputs
