Audible Warning Device
Audible Warning Device
���#:

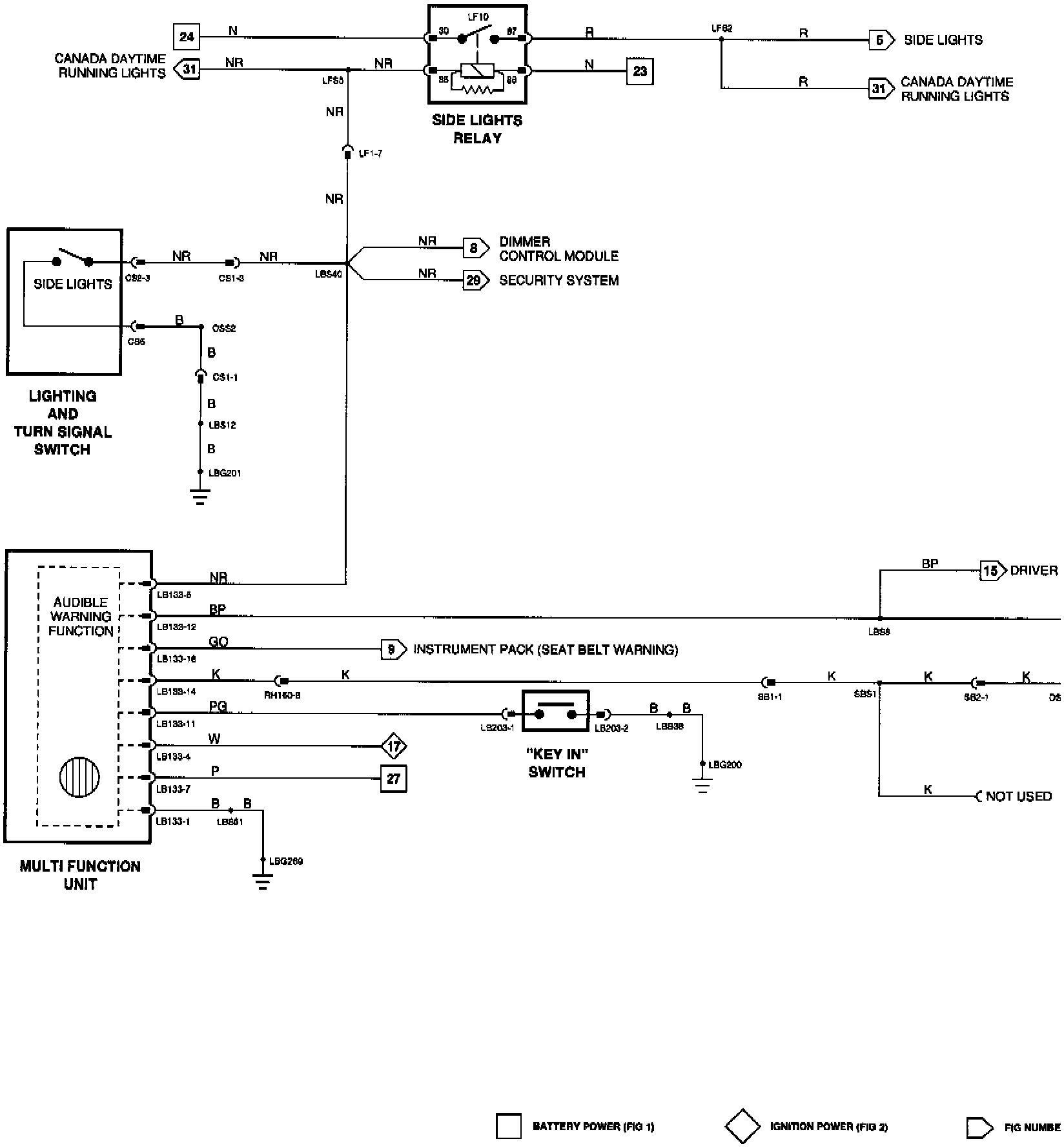

Wiring diagram

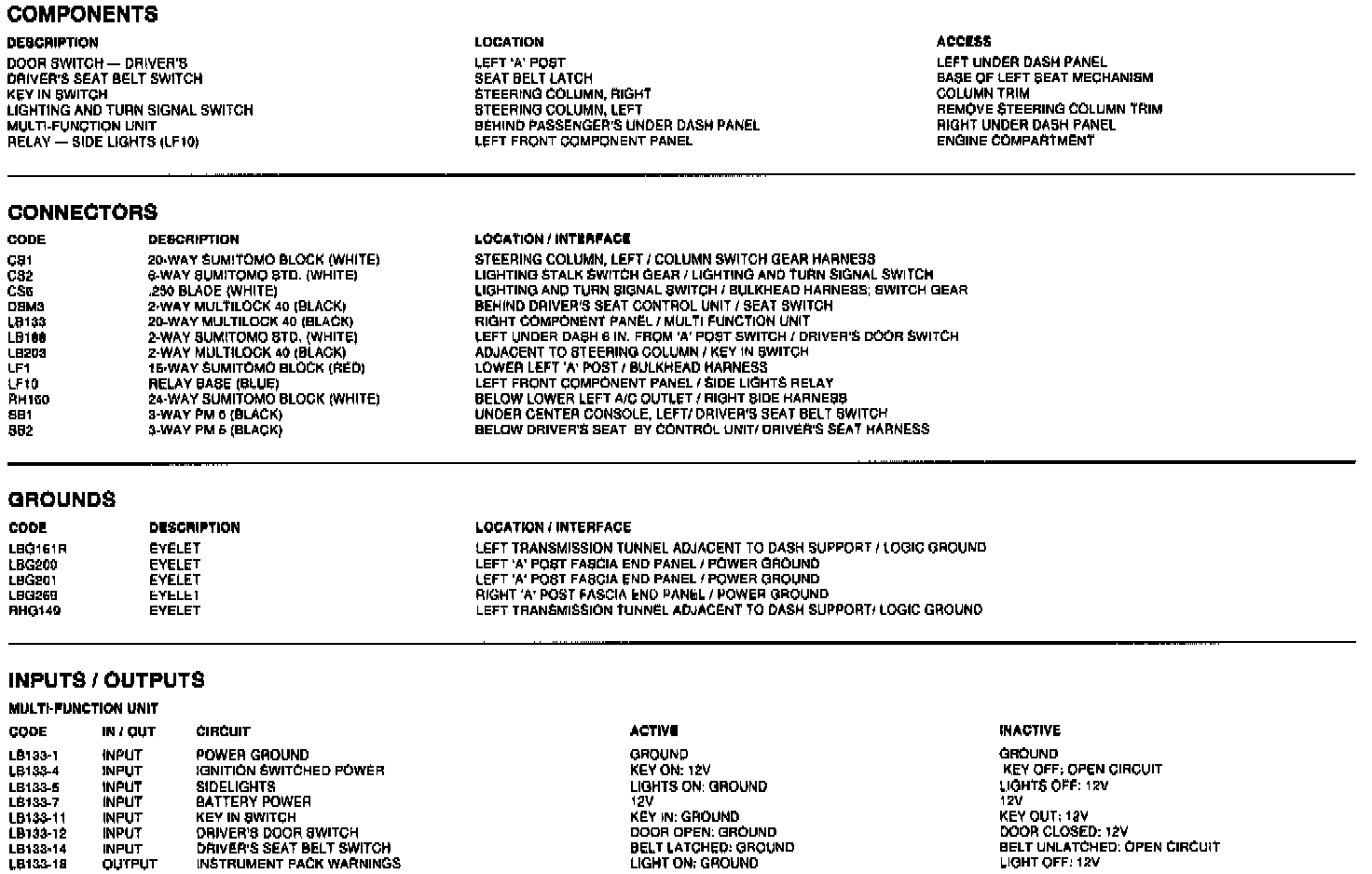

Components, connectors, grounds, inputs/outputs
