Power and Ground Distribution
>>
Ignition Switched Power Distribution
Ignition Switched Power Distribution
��:

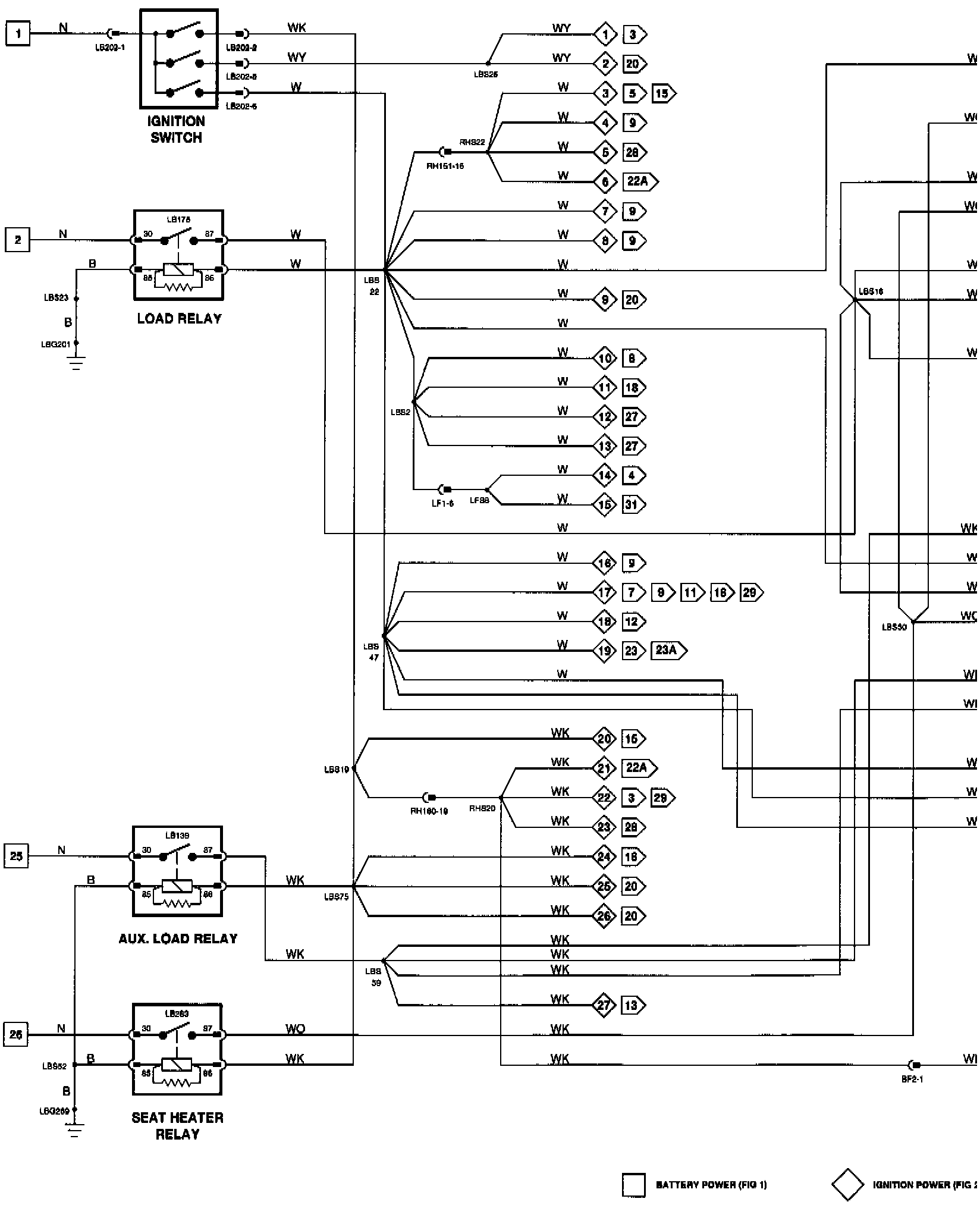

Wiring diagram

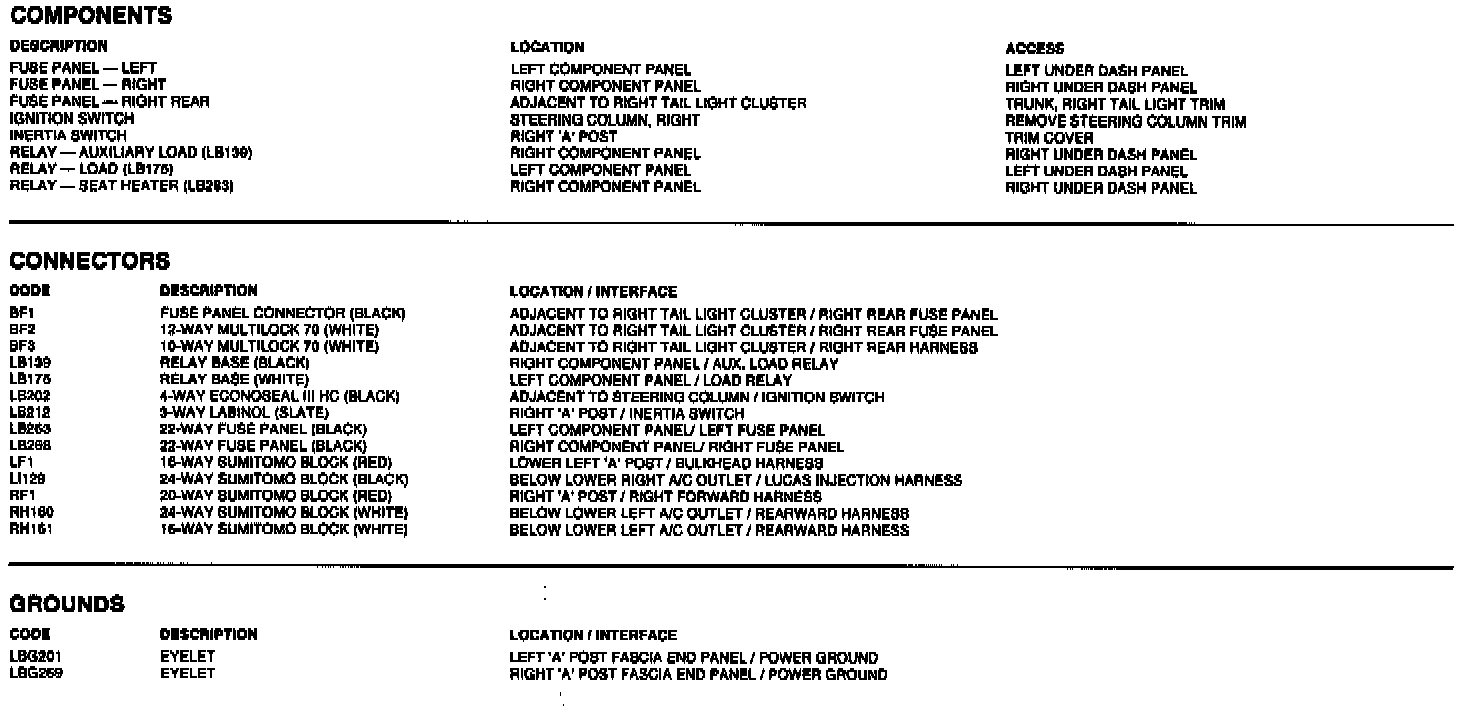

Components, connectors, grounds
