Instrument & Locate Lighting

d�w$Instrument Lighting, Locate Lighting:

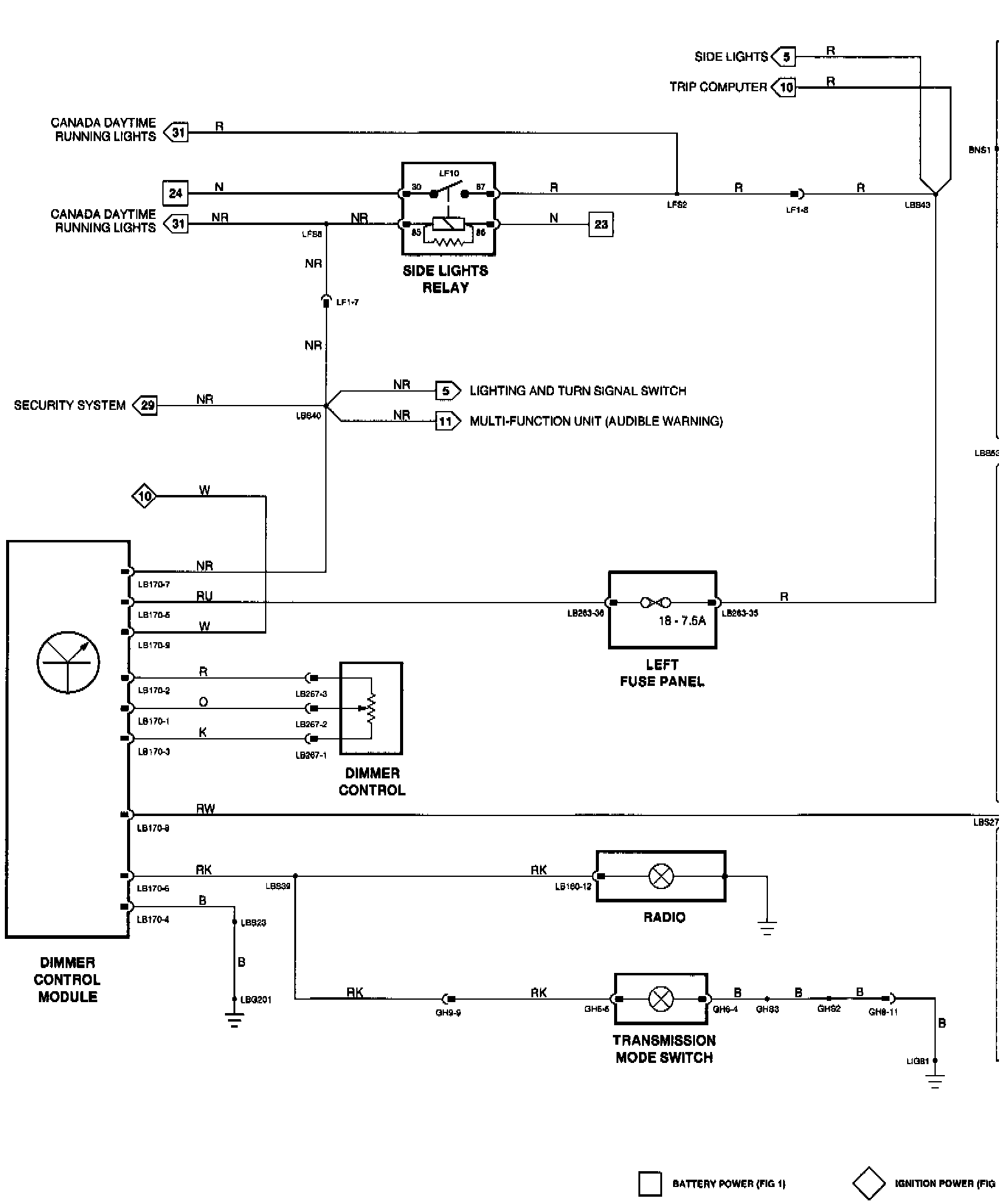

Wiring diagram

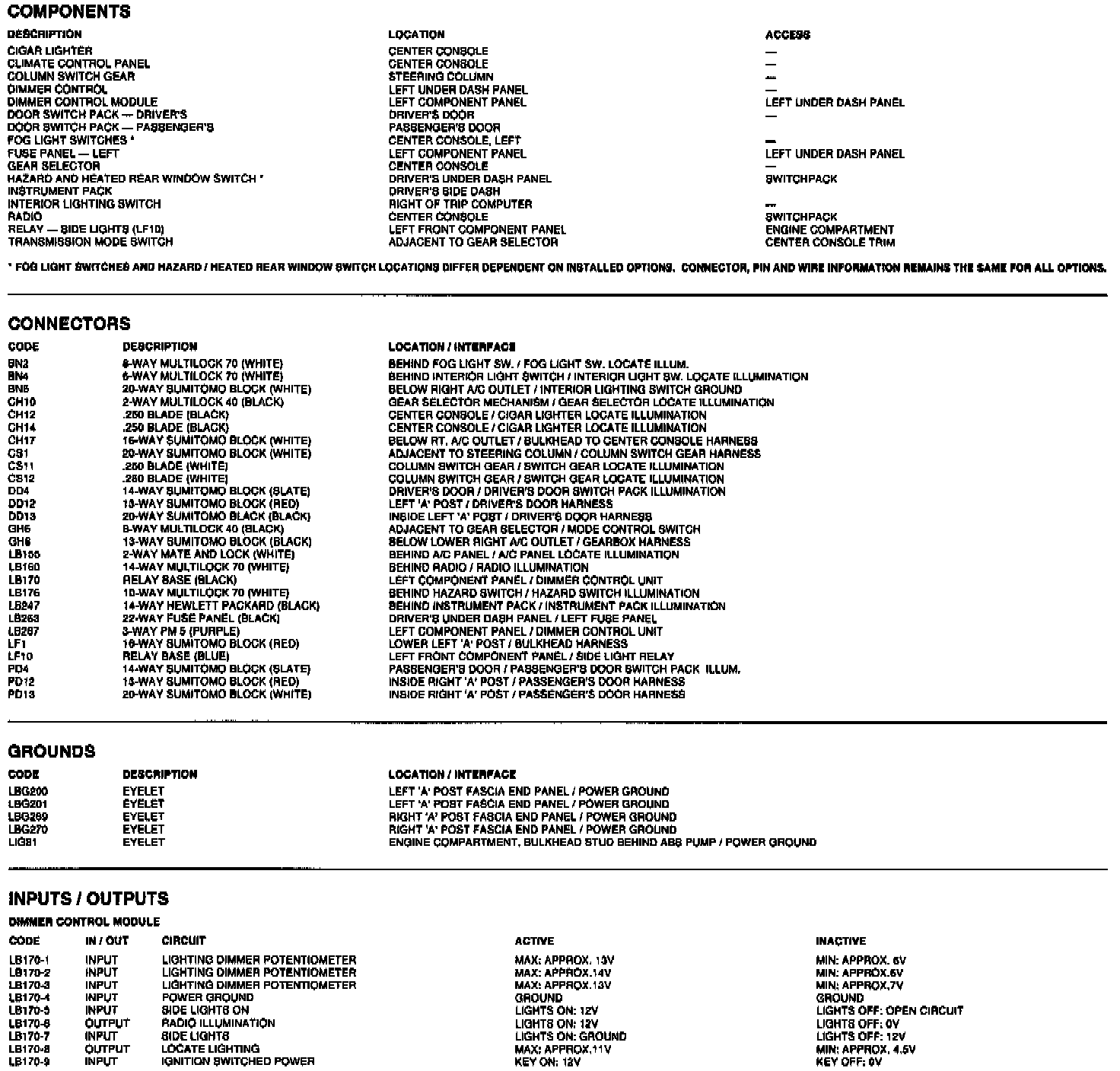

Components, connectors, grounds, inputs/outputs
