Home >> Jaguar >> 1994 >> XJ-S Coupe (XJ27) V12-6.0L >> Repair and Diagnosis >> Lighting and Horns >> Brake Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

 �$:

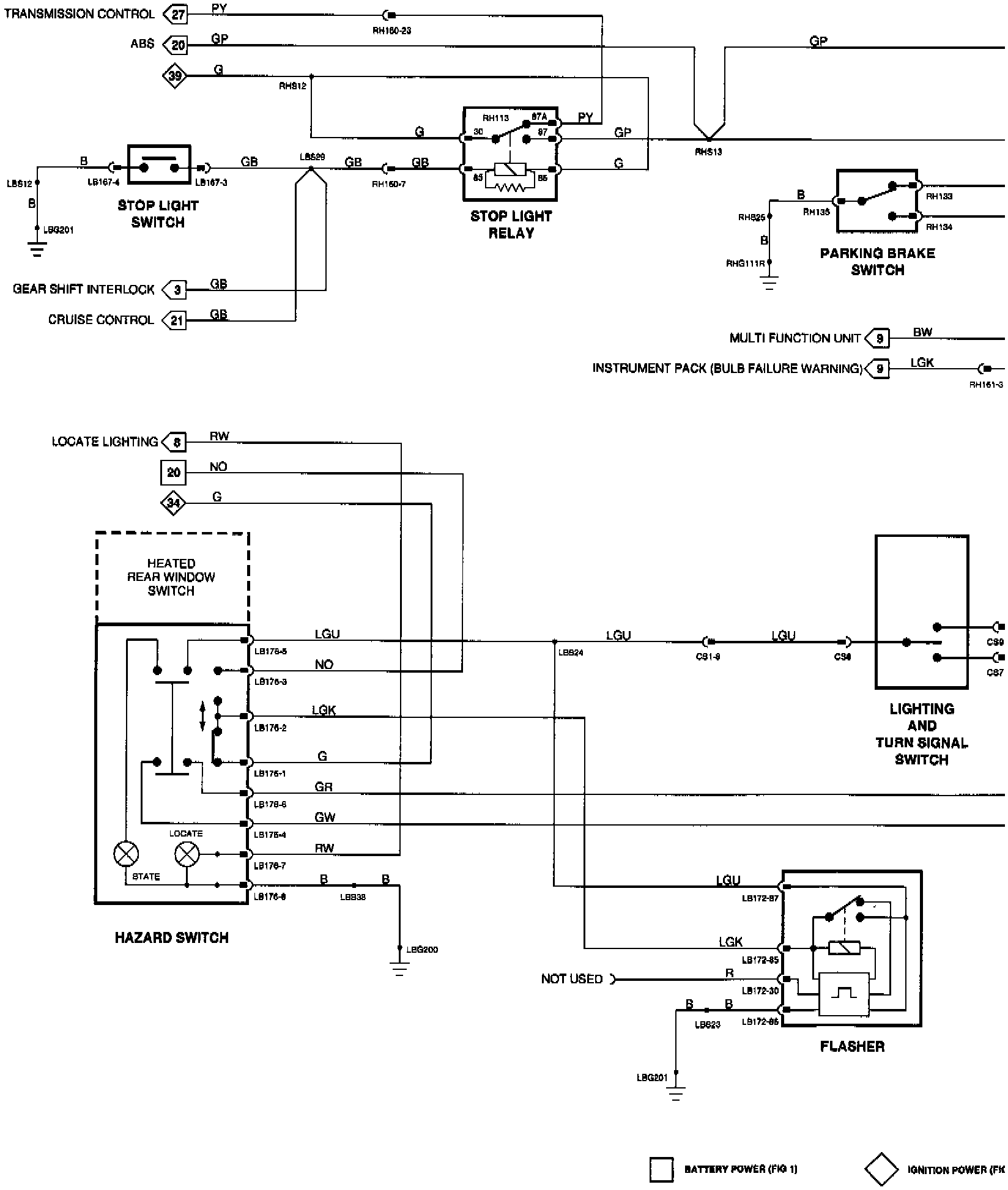

Wiring diagram

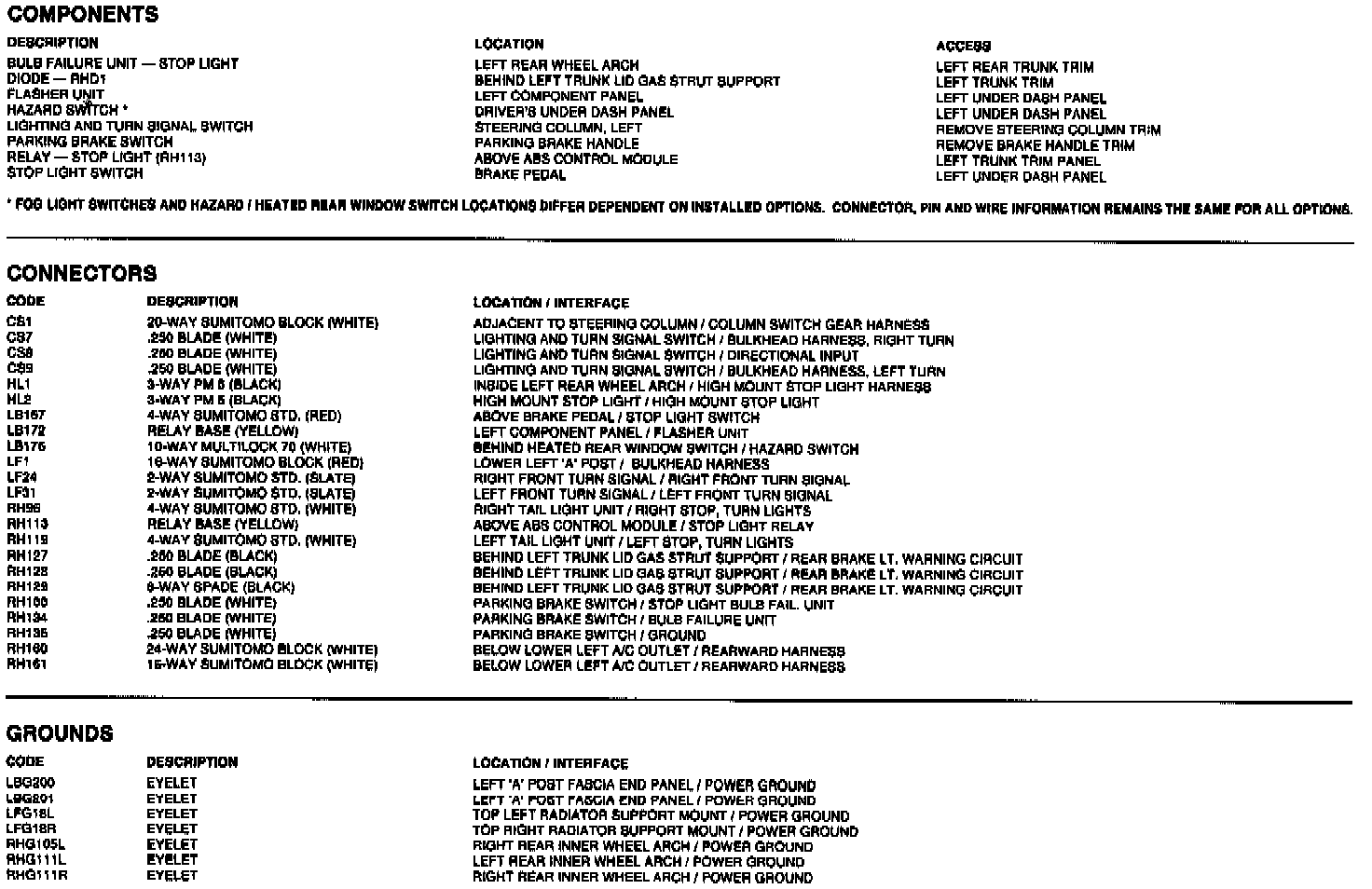

Components, connectors, grounds
