Engine Specifications

XJ-12 Specifications

Fuel System MPFI
Bore & Stroke Inches (mm) 3.54 x 3.09 (90 x 78.5)
Compression Ratio 11
Horsepower @ RPM 313 @ 5350
Torque Ft. Lbs @ RPM 353 @ 3750

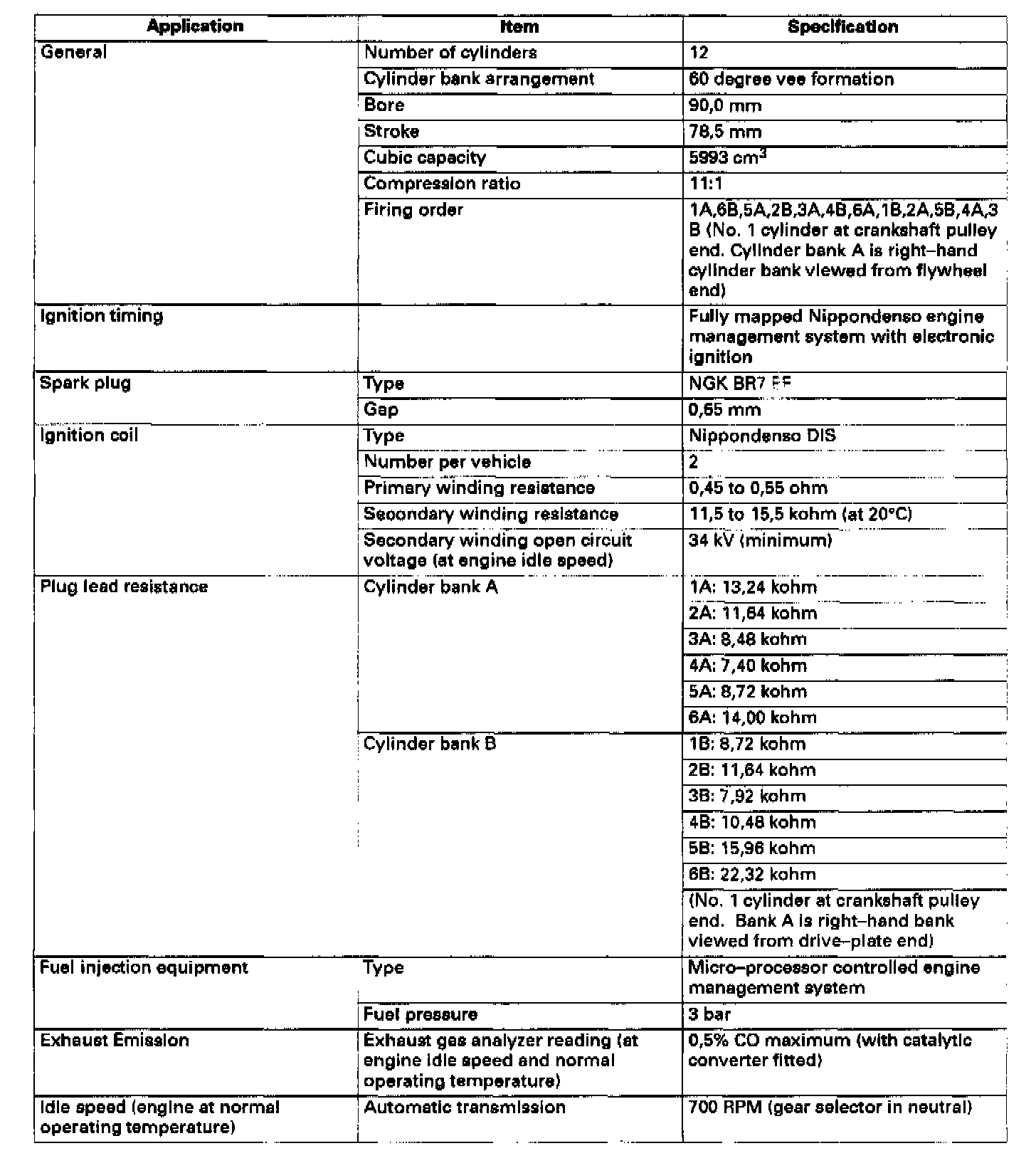

Specifications:

Specifications:

Specifications:

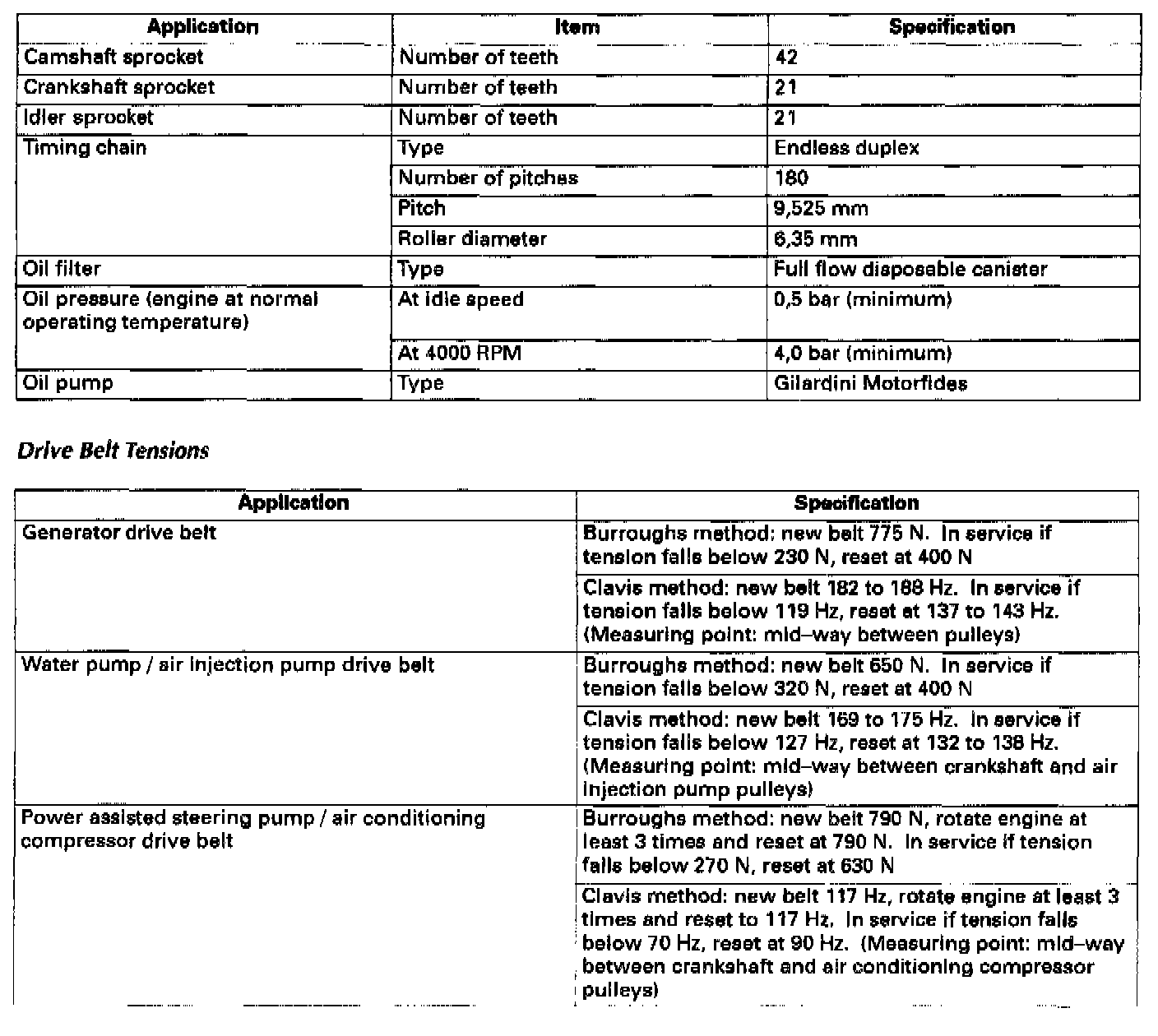

Drive Belt Tension And Specifications:

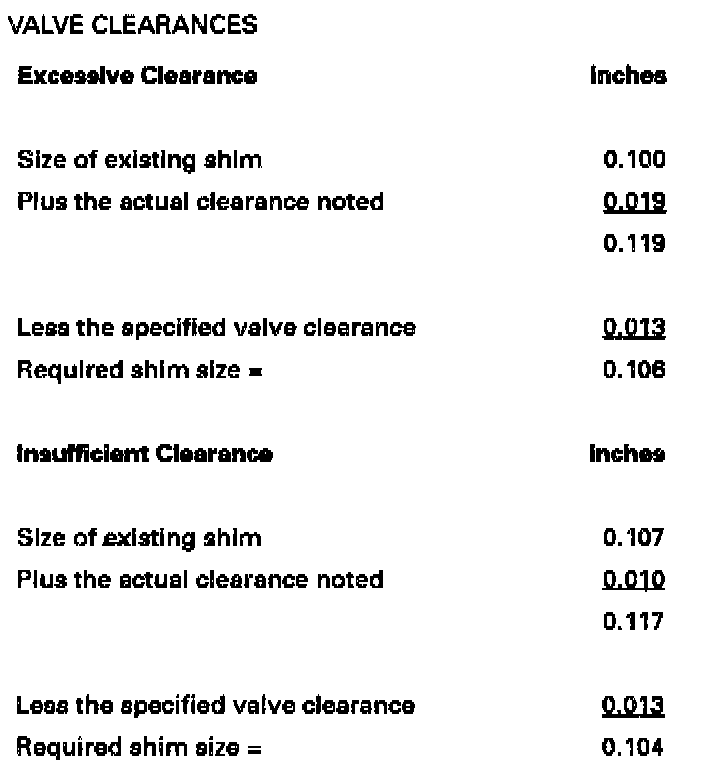

Valve Specifications:

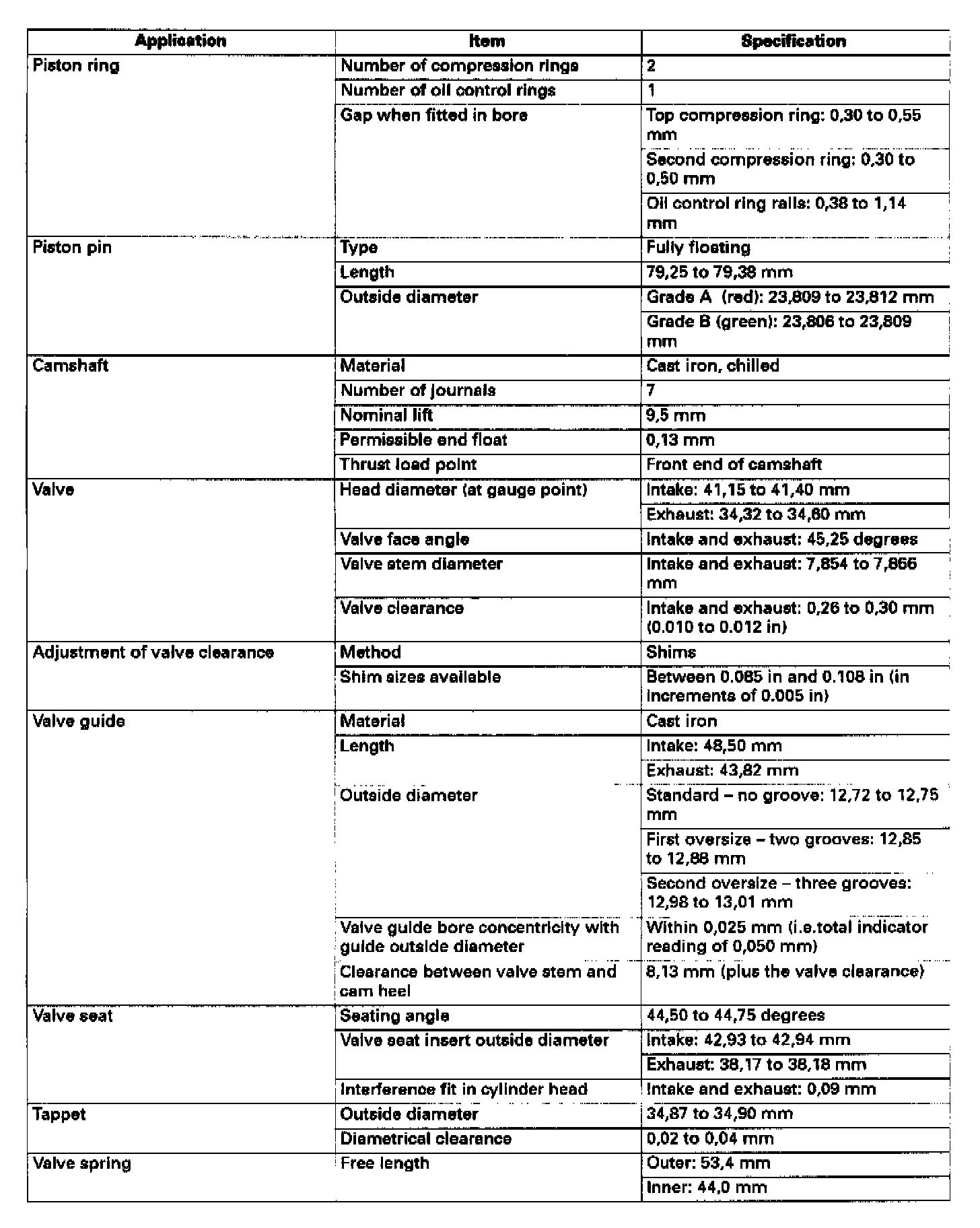

Valve:

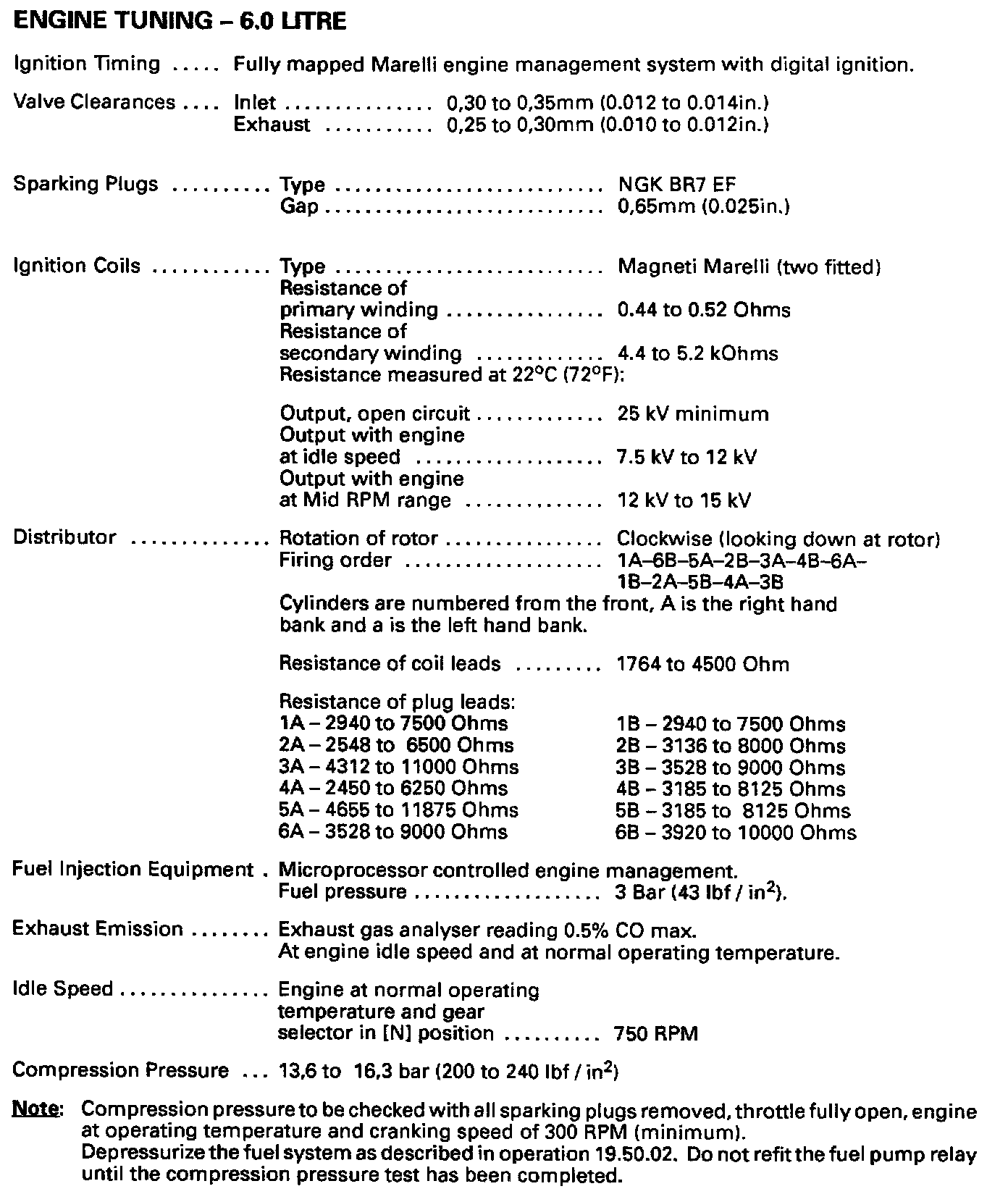

6.0L Engine Specifications:

6.0L Engine Specifications Continued:

Engine Specifications Continued:
